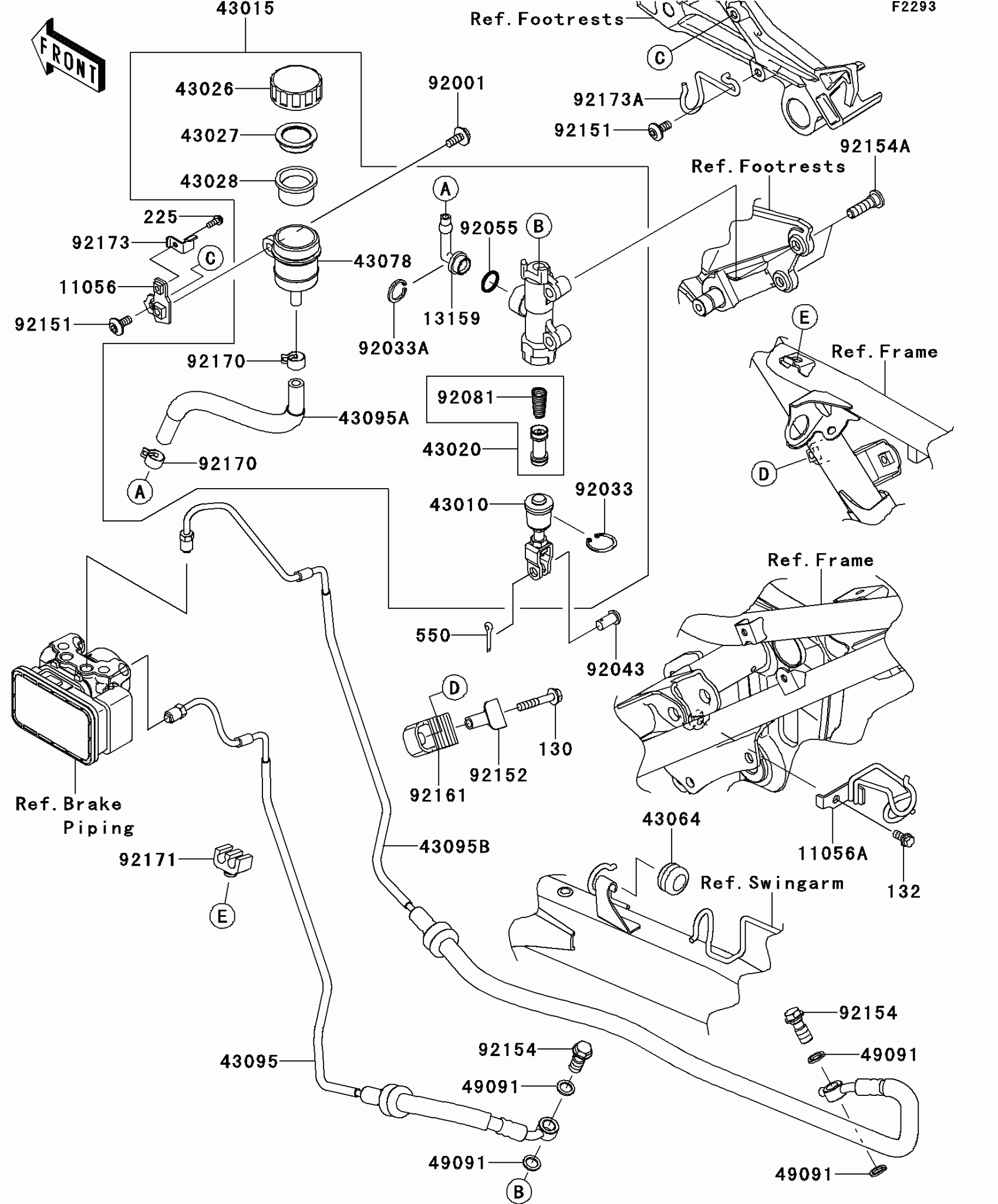

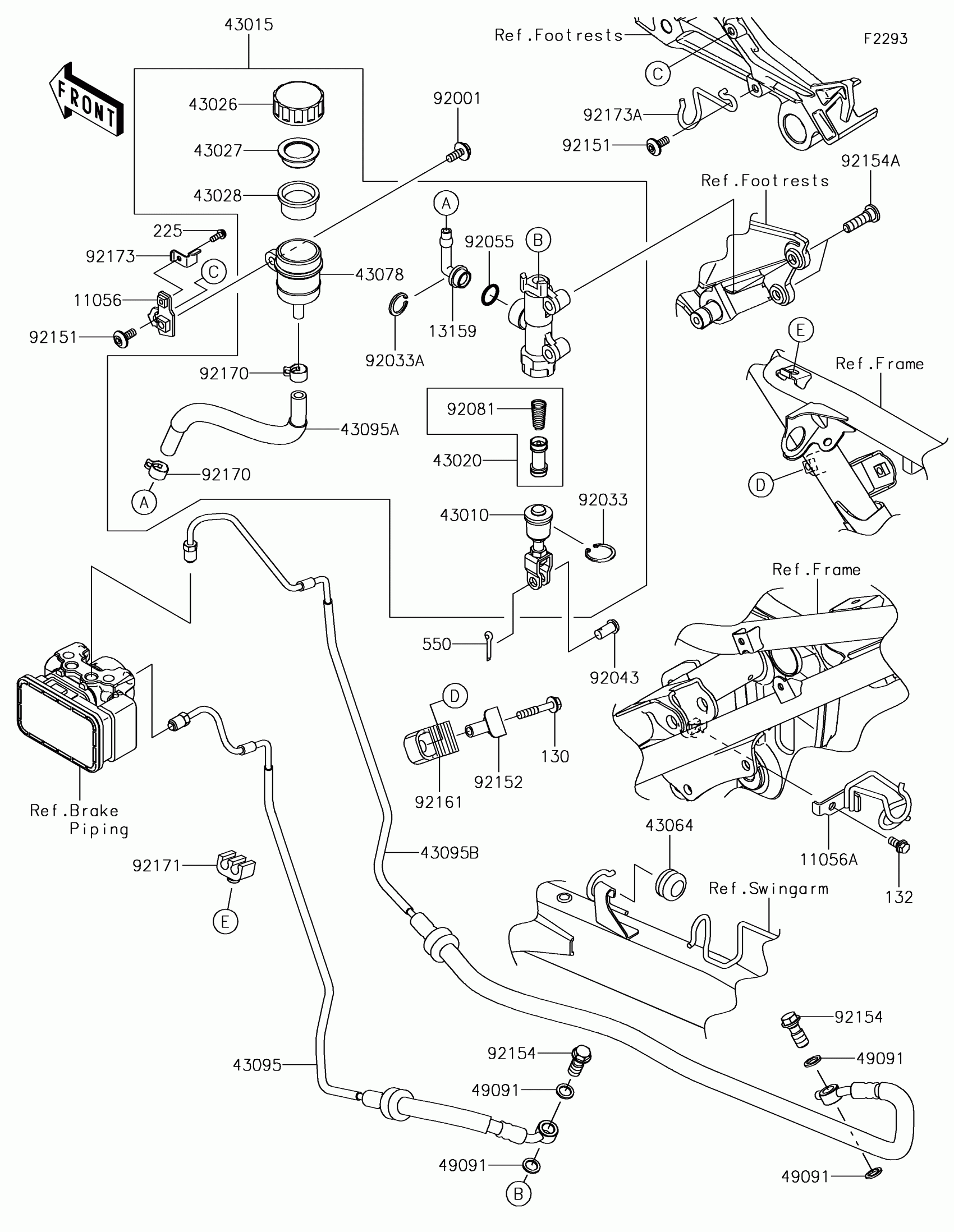

Kawasaki NINJA® 300 ABS Rear Master Cylinder Diagram

#

Description
Price

11056

BRACKET

11056-2306

$5.98

11056A

BRACKET,BRAKE HOSE

11056-2311

$10.30

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-0010

$71.10

43015

CYLINDER-ASSY-MASTER,RR

43015-0573

$264.68

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43064

GROMMET,HOSE CLAMP

43064-006

$4.31

43078

RESERVOIR

43078-0040

$28.98

43095

HOSE-BRAKE,RR M/CYLINDER

43095-0695

$167.31

43095A

HOSE-BRAKE

43095-0765

$15.70

43095B

HOSE-BRAKE,RR CALIPER

43095-0768

$167.31

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92001

BOLT,W/P,6X16

92001-1860

$4.31

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR

92152-0409

$18.64

92154

BOLT,OIL,L=23

92154-0226

$5.91

92154A

BOLT,SOCKET,8X30

92154-0843

$4.72

92161

DAMPER,BRAKE PIPE

92161-0347

$5.38

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP

92171-0818

$4.41

92173

CLAMP,RESERVOIR TANK CAP

92173-0028

$5.54

92173A

CLAMP

92173-0936

$4.10

130

BOLT-FLANGED,6X35

130BB0635

$4.76

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.94

550

PIN-COTTER,2.0X15

550AA2015

$1.12
