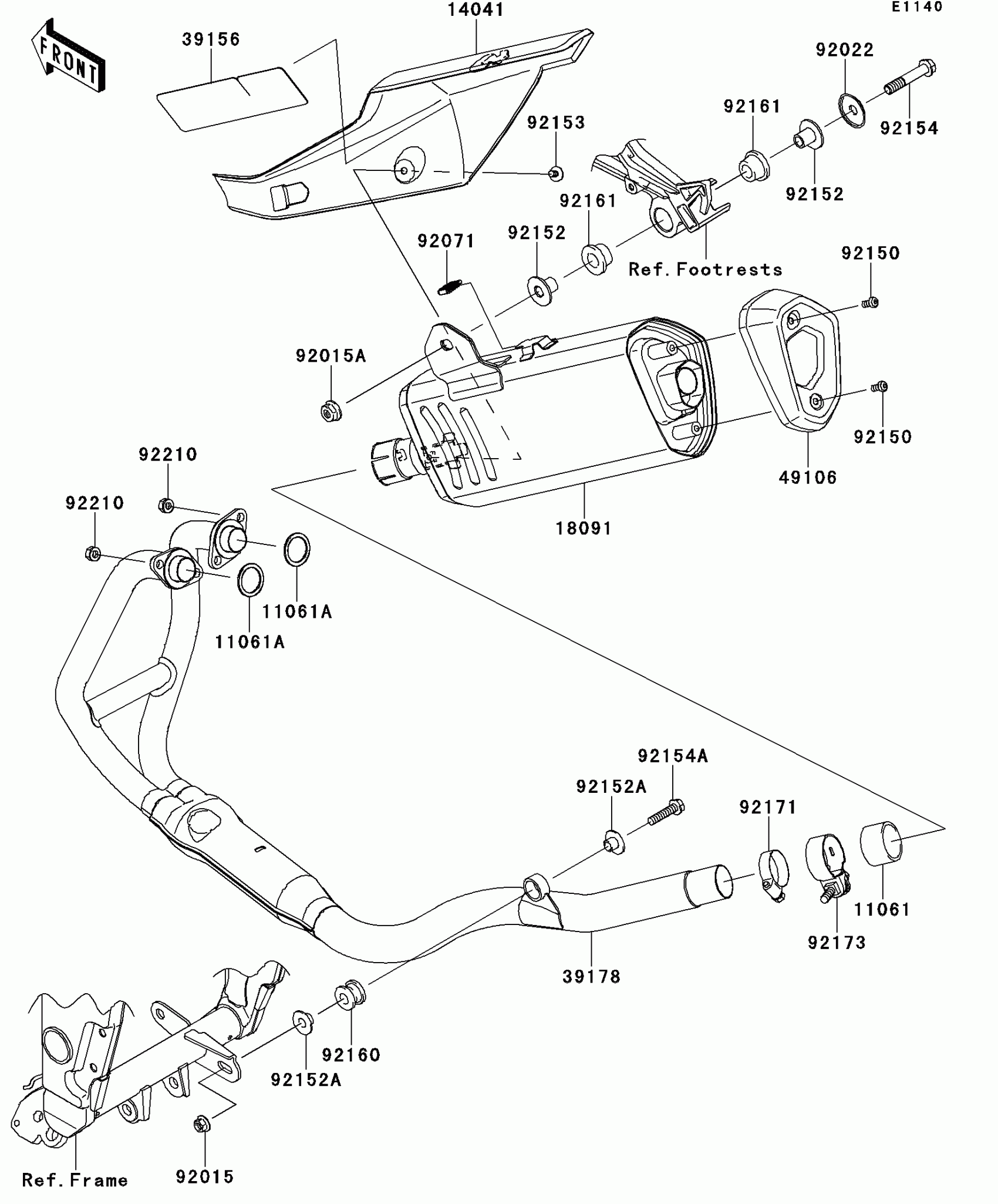

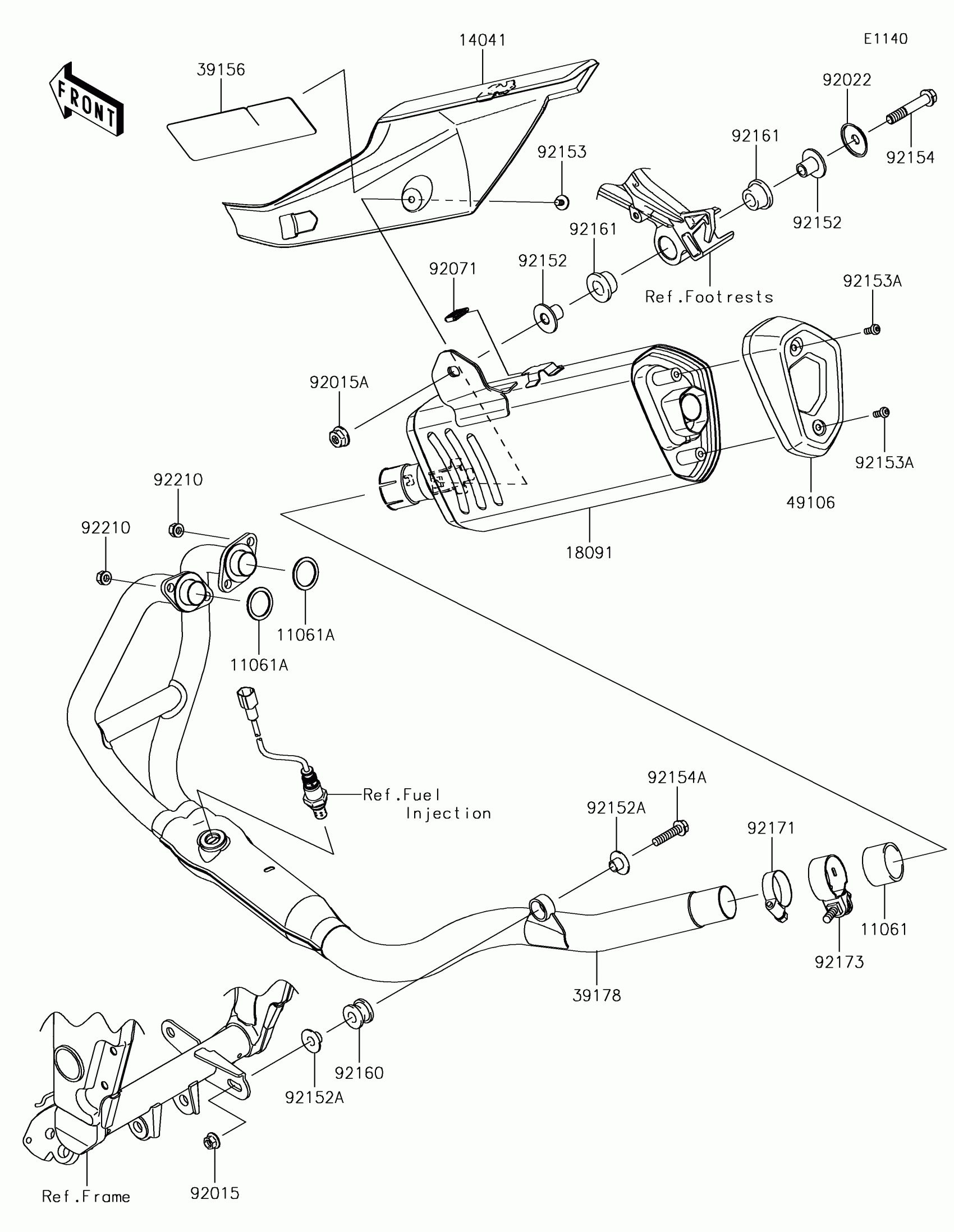

Kawasaki NINJA® 300 ABS Muffler(s) Diagram

Description

Price

11061

GASKET,EXHAUST PIPE CONNECTING

11061-0432

$26.35

11061A

GASKET,EXHAUST PIPE

11061-0791

$8.22

14041

COVER-COMP,MUFFLER

14041-0564

Unavailable

18091

BODY-COMP-MUFFLER

18091-0860

Unavailable

39156

PAD

39156-0928

$6.57

39178

MANIFOLD-COMP-EXHAUST

39178-0179

$1,081.57

49106

COVER-MUFFLER,END

49106-0727

Unavailable

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,FLANGED,10MM

92015-1387

$4.31

92022

WASHER

92022-289

$16.33

92071

GROMMET

92071-0712

$2.64

92150

BOLT,SOCKET,6X14

92150-1836

$4.69

92152

COLLAR

92152-1682

$4.10

92152A

COLLAR

92152-1692

$9.73

92153

BOLT,SOCKET,6X10

92153-1800

$1.78

92154

BOLT,FLANGED,10X55

92154-0070

$3.90

92154A

BOLT,FLANGED,8X35

92154-1061

$2.67

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92161

DAMPER

92161-1497

$3.35

92171

CLAMP

92171-0059

$7.98

92173

CLAMP,42MM

92173-0942

$14.02

92210

NUT,8MM

92210-1242

$2.41
