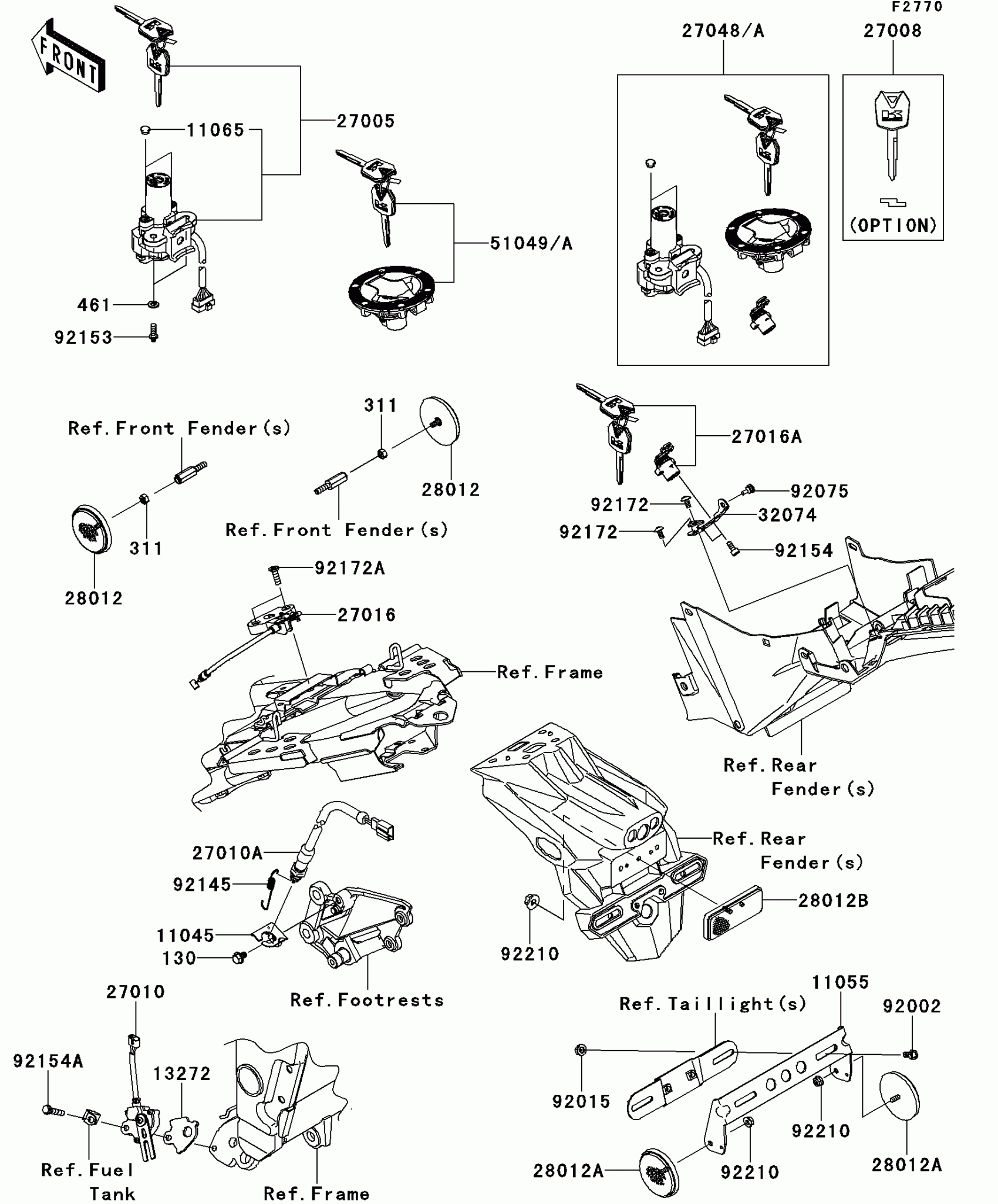

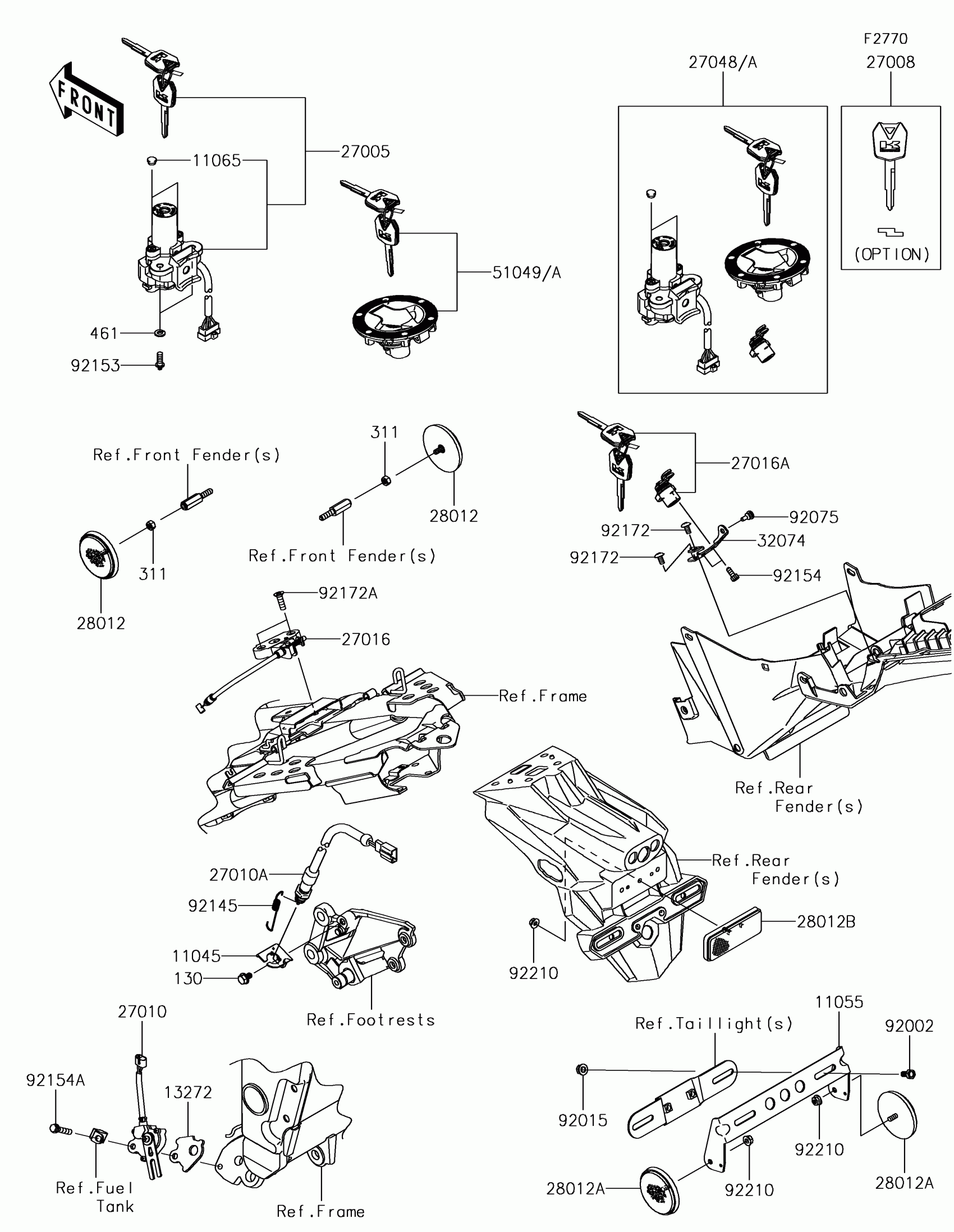

Kawasaki Ninja 300 ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

11045

BRACKET,REAR BRAKE SWITCH

11045-1641

$8.10

11055

BRACKET,REFLECTOR

11055-1092

$33.36

11065

CAP,IGNITION SWITCH

11065-0708

$4.37

130

BOLT-FLANGED,6X10

130BA0610

$1.20

13272

PLATE

13272-1330

$3.71

27005

SWITCH-ASSY-IGNITION

27005-5144

$174.70

27008

KEY-LOCK,BLANK

27008-0053

$21.22

27010

SWITCH,SIDE STAND

27010-0097

$117.39

27010A

SWITCH,REAR BRAKE

27010-0726

$46.80

27016

LOCK-ASSY,SEAT STRIKER

27016-0075

$59.26

27016A

LOCK-ASSY

27016-5378

$104.16

27048

SWITCH-ASSY

27048-5075

$443.73

27048A

SWITCH-ASSY

27048-5077

$435.58

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-0002

$24.14

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

311

NUT-HEX,5MM

311AB0500

$0.43

32074

BRACKET-LOCK

32074-0018

$3.71

461

WASHER-SPRING,6MM

461DA0600

$0.71

51049

CAP-TANK,FUEL

51049-5009

$187.02

51049A

CAP-TANK,FUEL

51049-5011

$183.59

92002

BOLT,6X12

92002-1132

$1.49

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92075

DAMPER,6X10X15

92075-1808

$1.39

92145

SPRING,BRAKE LAMP SWITCH

92145-0683

$3.67

92153

BOLT,TORX,6X16

92153-0967

$2.61

92154

BOLT,SOCKET,5X12

92154-0933

$1.19

92154A

BOLT,FLANGED,6X30

92154-1040

$2.67

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,6X20

92172-0786

$0.85

92210

NUT,FLANGED,5MM

92210-0007

$2.70
