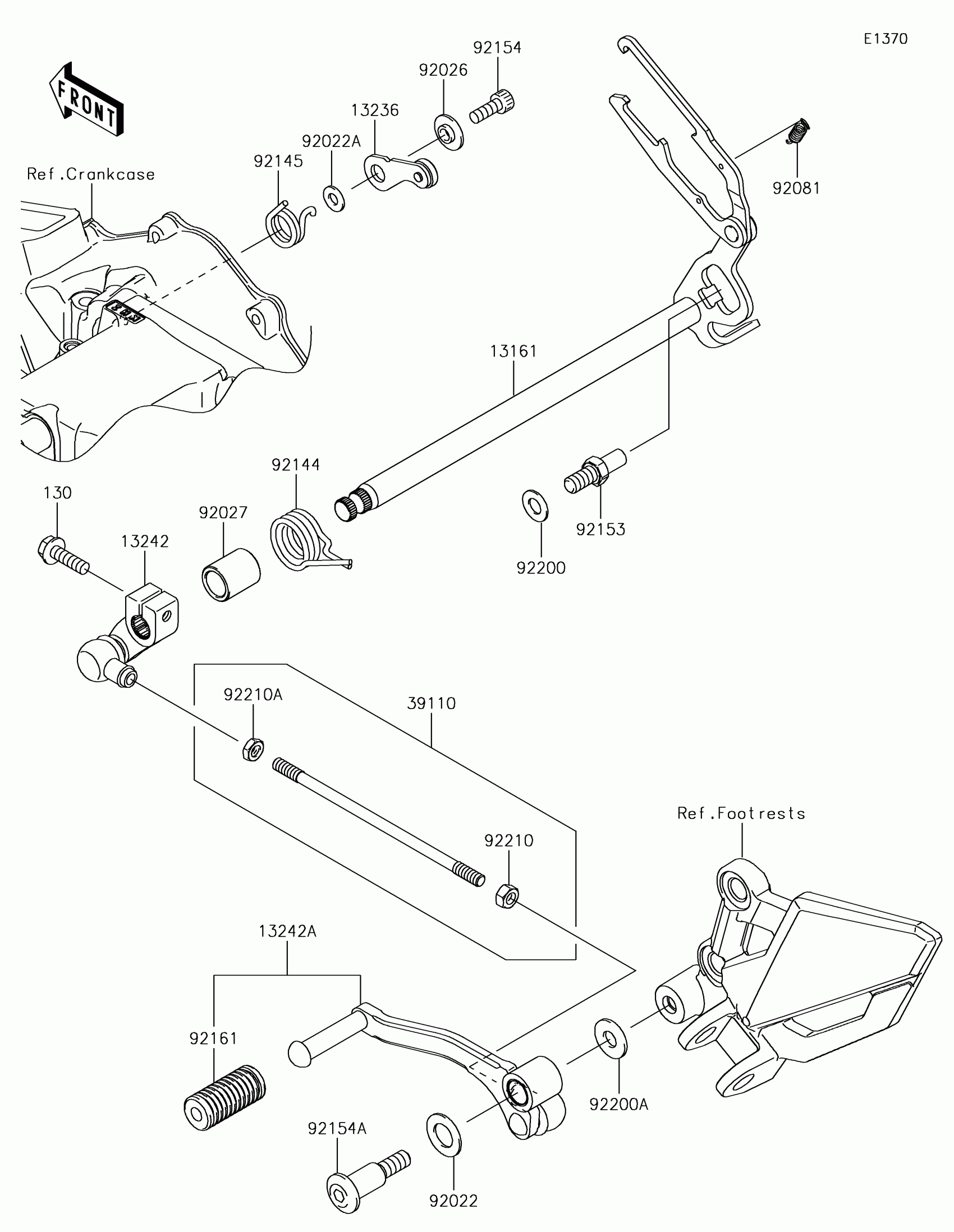

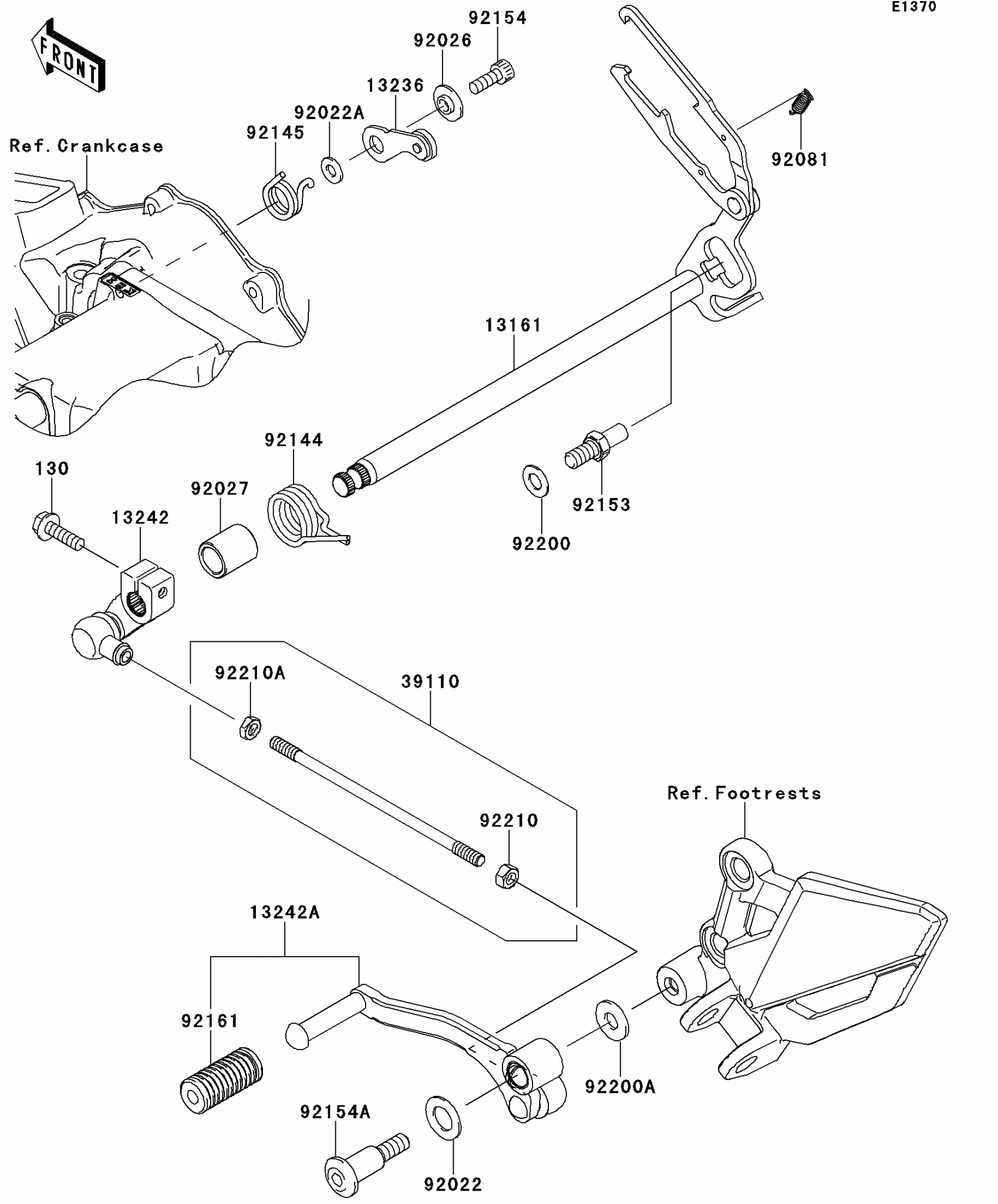

Kawasaki NINJA® 300 ABS Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0560

$91.77

13236

LEVER-COMP

13236-0719

Unavailable

13242

LEVER-ASSY-CHANGE

13242-0087

$34.49

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-0088

$53.04

39110

ROD-ASSY-TIE

39110-0307

$14.90

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92022A

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92027

COLLAR,13X18.3X21.5

92027-1440

$5.52

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92144

SPRING,CHANGE PEDAL RETURN

92144-1074

$9.43

92145

SPRING

92145-0895

$1.96

92153

BOLT,8X15.5

92153-1986

$6.07

92154

BOLT,SOCKET,6X16

92154-0235

$2.95

92154A

BOLT

92154-1034

$10.90

92161

DAMPER,CHANGE PEDAL

92161-1466

$3.35

92200

WASHER,8.2X16X1

92200-0434

$1.34

92200A

WASHER,8.5X20X1.6

92200-0490

$3.29

92210

NUT,6MM

92210-0778

$2.32

92210A

NUT,6MM

92210-0779

$3.02

130

BOLT-FLANGED,6X20

130CB0620

$7.65
