2015 Kawasaki Ninja® 300 ABS Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2015 Kawasaki Ninja® 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

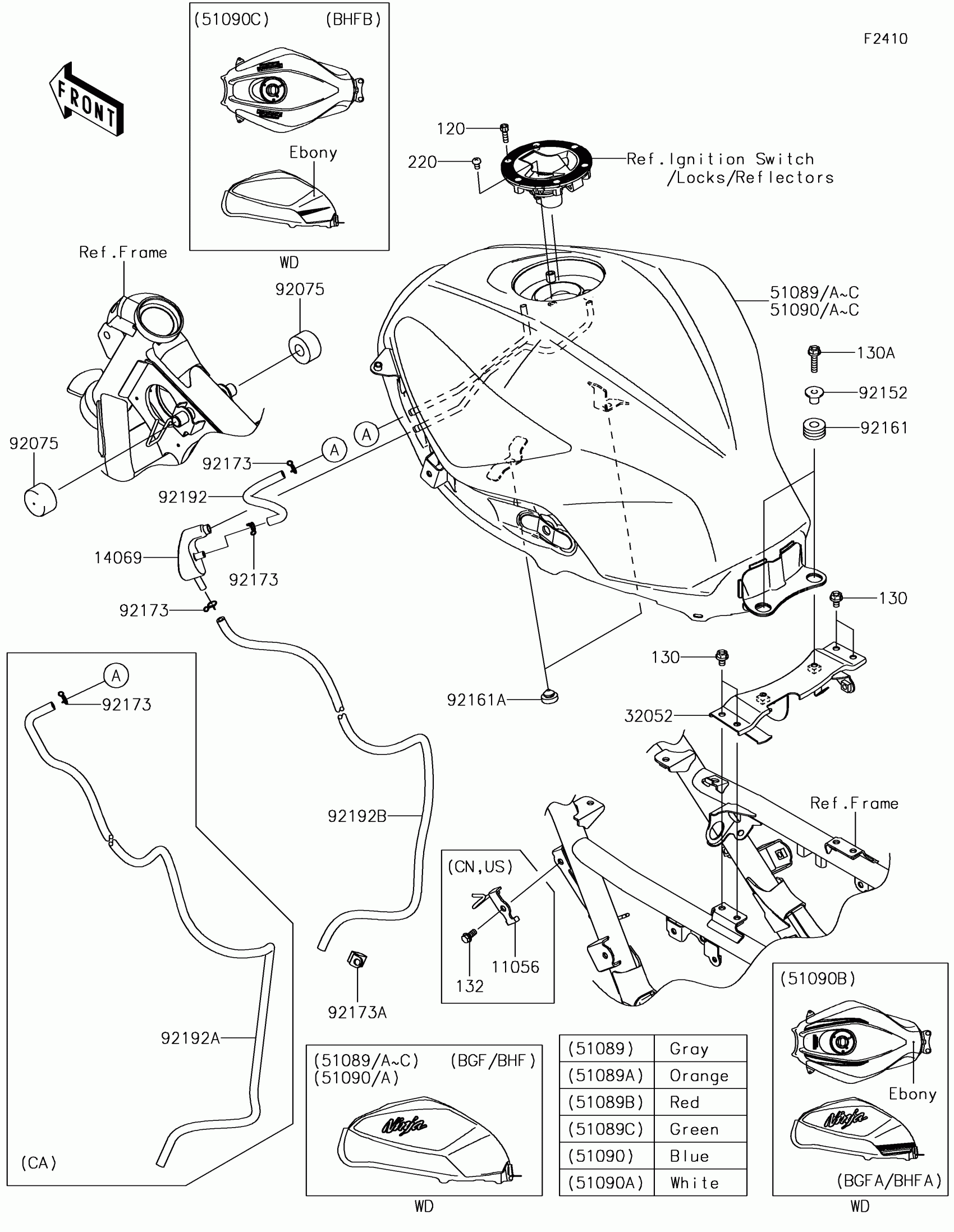

2015 Kawasaki Ninja® 300 ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X16

120CB0516

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

220

SCREW-PAN-CROS,5X8

220AB0508

1
Out of stock

32052

BRACKET-TANK

32052-0733

1
Out of stock

51089A

TANK-COMP-FUEL,P.S.WHITE

51089-5045-25Y

1
Out of stock

51089B

TANK-COMP-FUEL,L.GREEN

51089-5046-777

1
Out of stock

92075

DAMPER,FUEL TANK,FR

92075-1115

1
Out of stock

92152

COLLAR,6.5X10X13.1

92152-0332

1
Out of stock

92161

DAMPER,10X24X12

92161-0927

1
Out of stock

92161A

DAMPER,9.5X18X6

92161-1473

1

$1.44

In stock

92173A

CLAMP

92173-0978

1
Out of stock

132

1

$1.12

In stock

11056

BRACKET,DRAIN TUBE

11056-1633

1
Out of stock

14069

BREATHER

14069-0011

1

$11.37

In stock

92173

CLAMP

92173-0049

1
Out of stock

92173

CLAMP

92173-0049

1
Out of stock

92192

TUBE,FUEL

92192-0310

1
Out of stock

92192A

TUBE,DRAIN

92192-1096

1
Out of stock

92192B

TUBE,5X9X900

92192-1237

1
Out of stock
