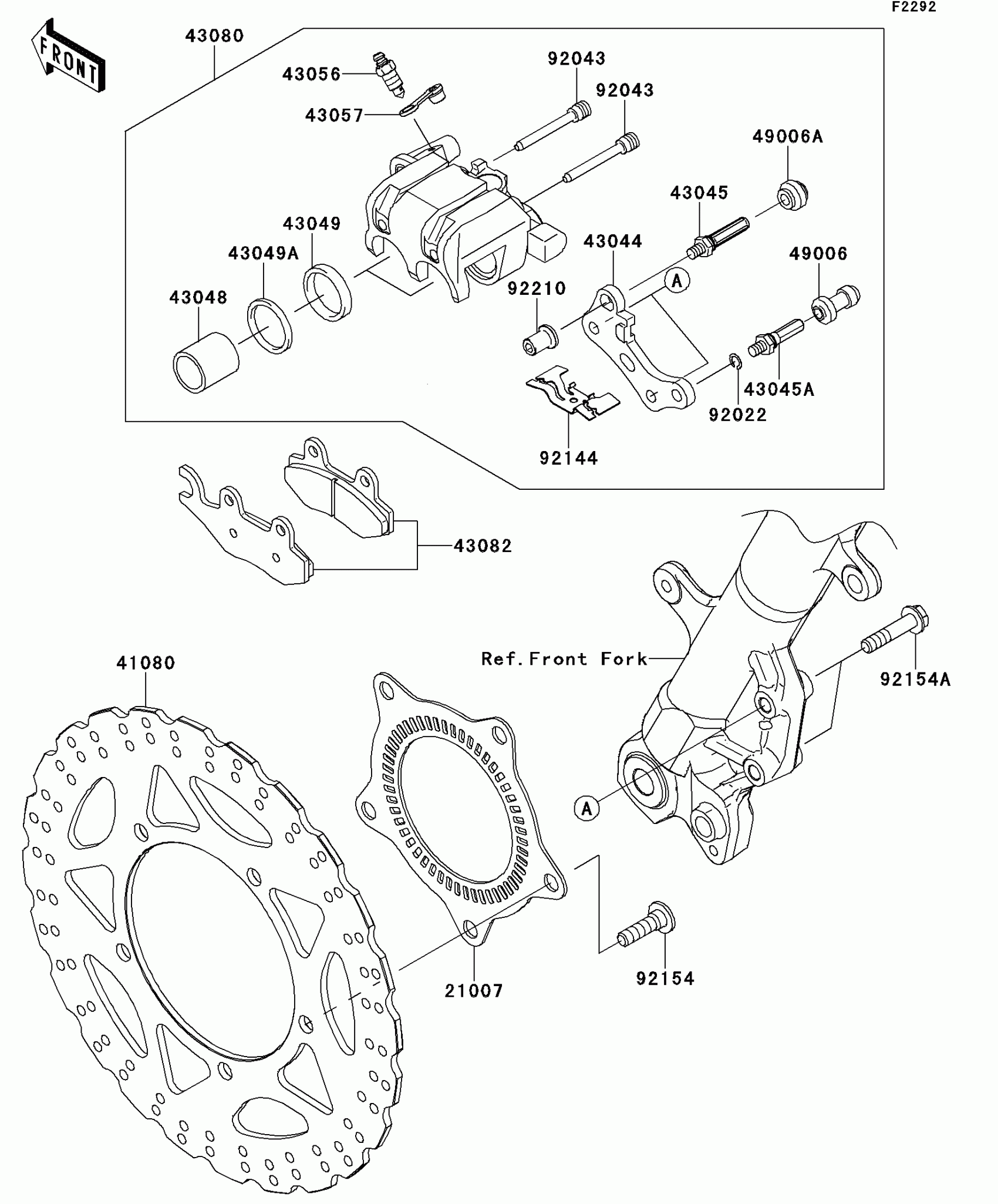

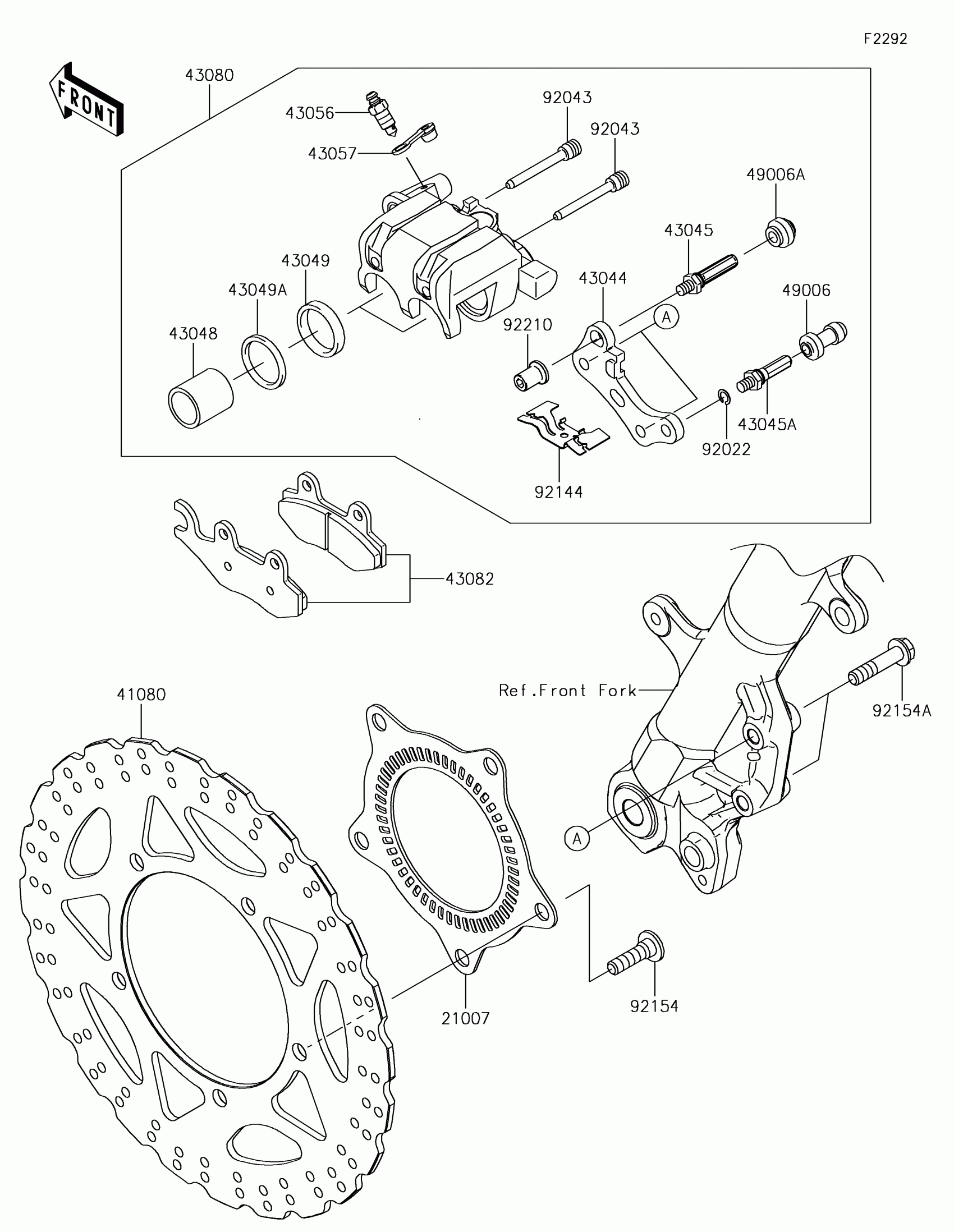

Kawasaki NINJA® 300 ABS Front Brake Diagram

Description

Price

21007

ROTOR,FR

21007-0577

Unavailable

41080

DISC,FR,BLACK

41080-0578-11H

$455.55

43044

HOLDER-COMP-CALIPER

43044-1112

$118.22

43045

SHAFT-CALIPER

43045-0004

$23.07

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0125-25S

$385.27

43082

PAD-ASSY-BRAKE

43082-0081

$46.20

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92154

BOLT,SOCKET,8X30

92154-0844

$4.10

92154A

BOLT

92154-1033

$4.72

92210

NUT

92210-0615

$6.26
