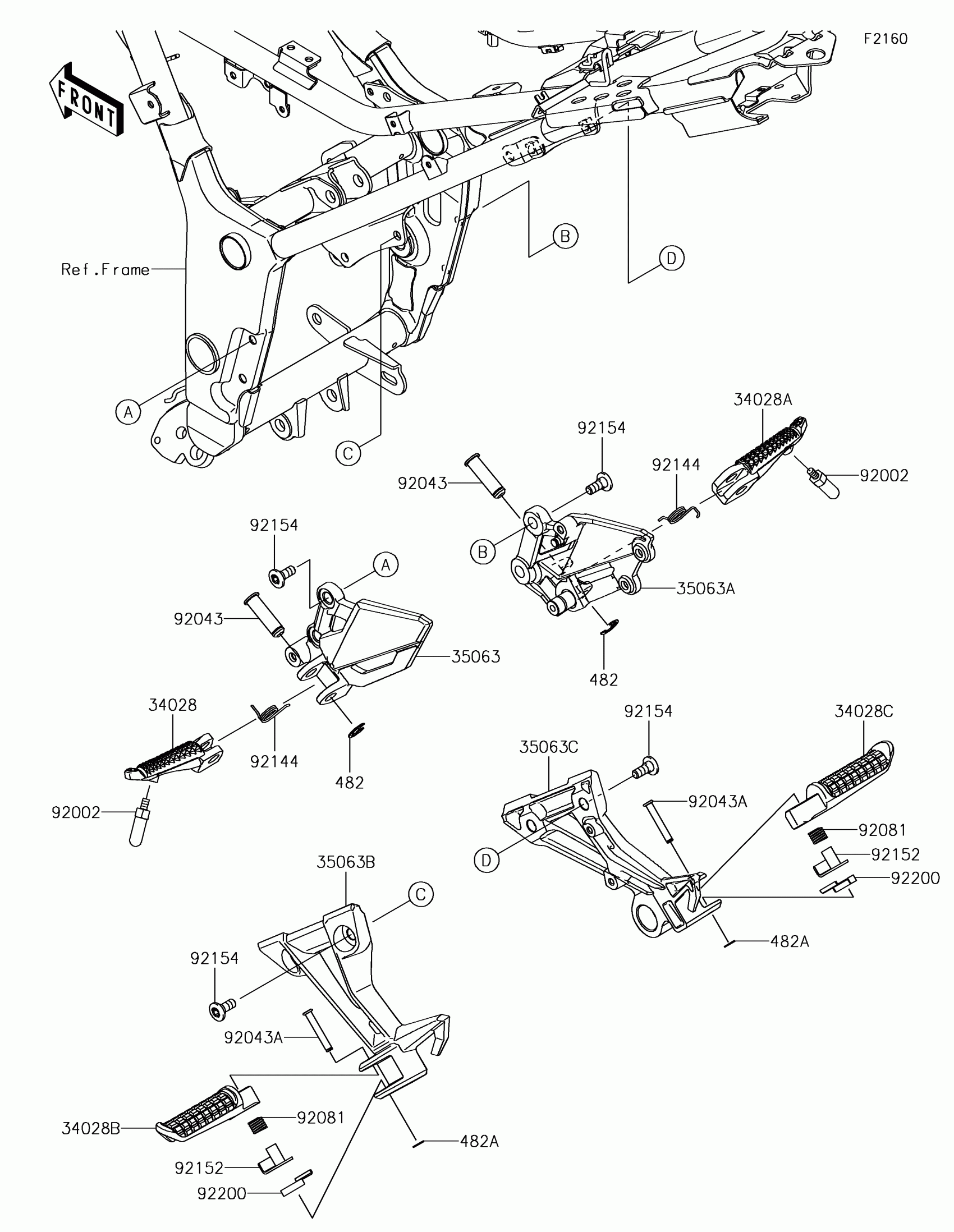

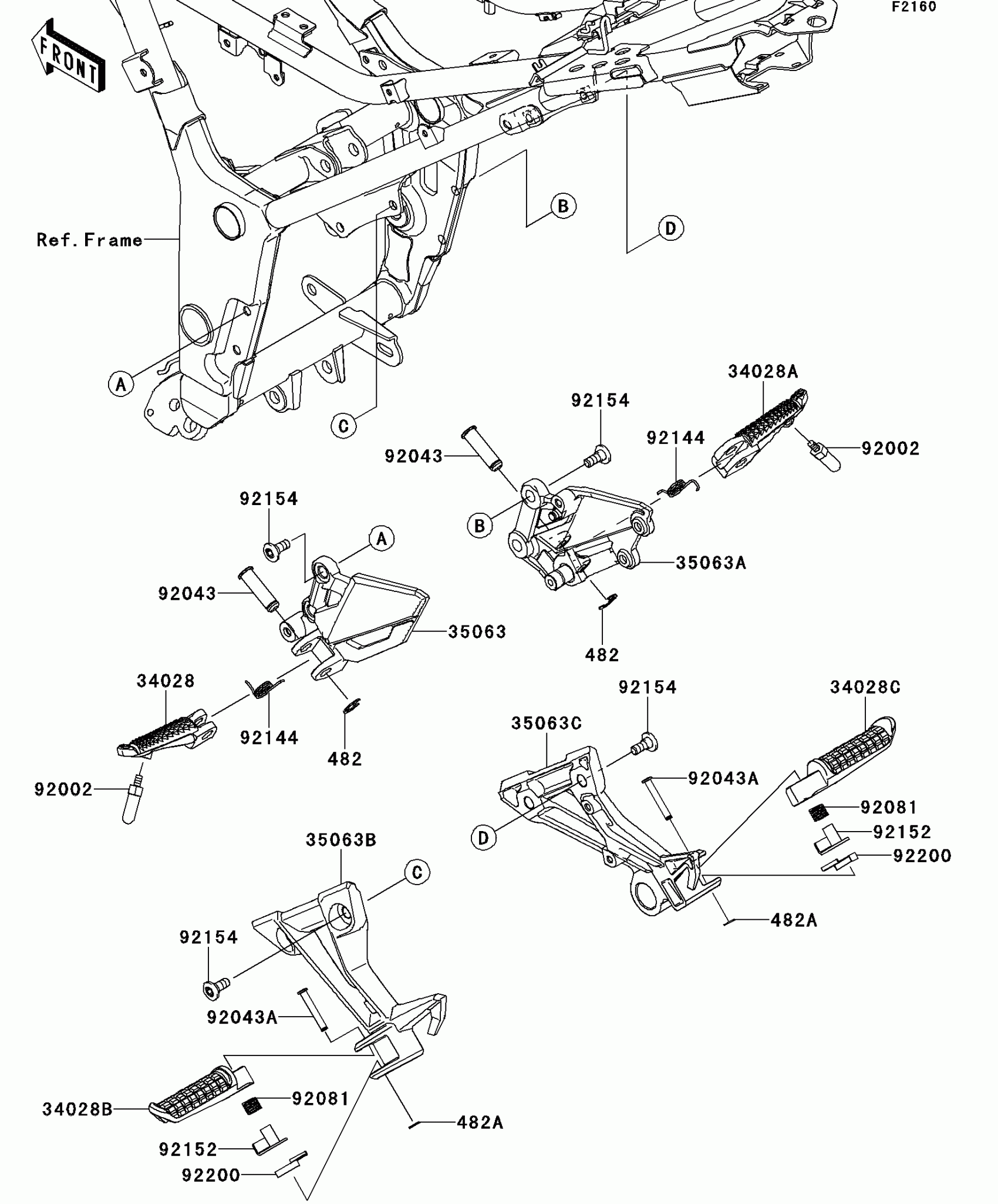

Kawasaki Ninja 300 ABS Footrests Diagram

Description

Price

34028

STEP,FR,LH

34028-0318

$51.41

34028A

STEP,FR,RH

34028-0319

$51.41

34028B

STEP,RR,LH

34028-1488

$66.47

34028C

STEP,RR,RH

34028-1489

$66.47

35063

STAY,STEP HOLDER,FR,LH

35063-0999

$122.48

35063A

STAY,STEP HOLDER,FR,RH

35063-1000

$122.48

35063B

STAY,STEP HOLDER,RR,LH

35063-1271

$132.52

35063C

STAY,STEP HOLDER,RR,RH

35063-1272

$132.52

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34

92002

BOLT,BANK SENSOR

92002-1995

$14.23

92043

PIN,12X37.5

92043-0026

$5.57

92043A

PIN,6X40

92043-0200

$3.02

92081

SPRING,STEP,RR

92081-1612

$4.26

92144

SPRING,STEP RETURN

92144-1567

$6.51

92152

COLLAR,STEP

92152-0658

$10.30

92154

BOLT,SOCKET,8X20

92154-0936

$4.10

92200

WASHER

92200-0783

$1.97
