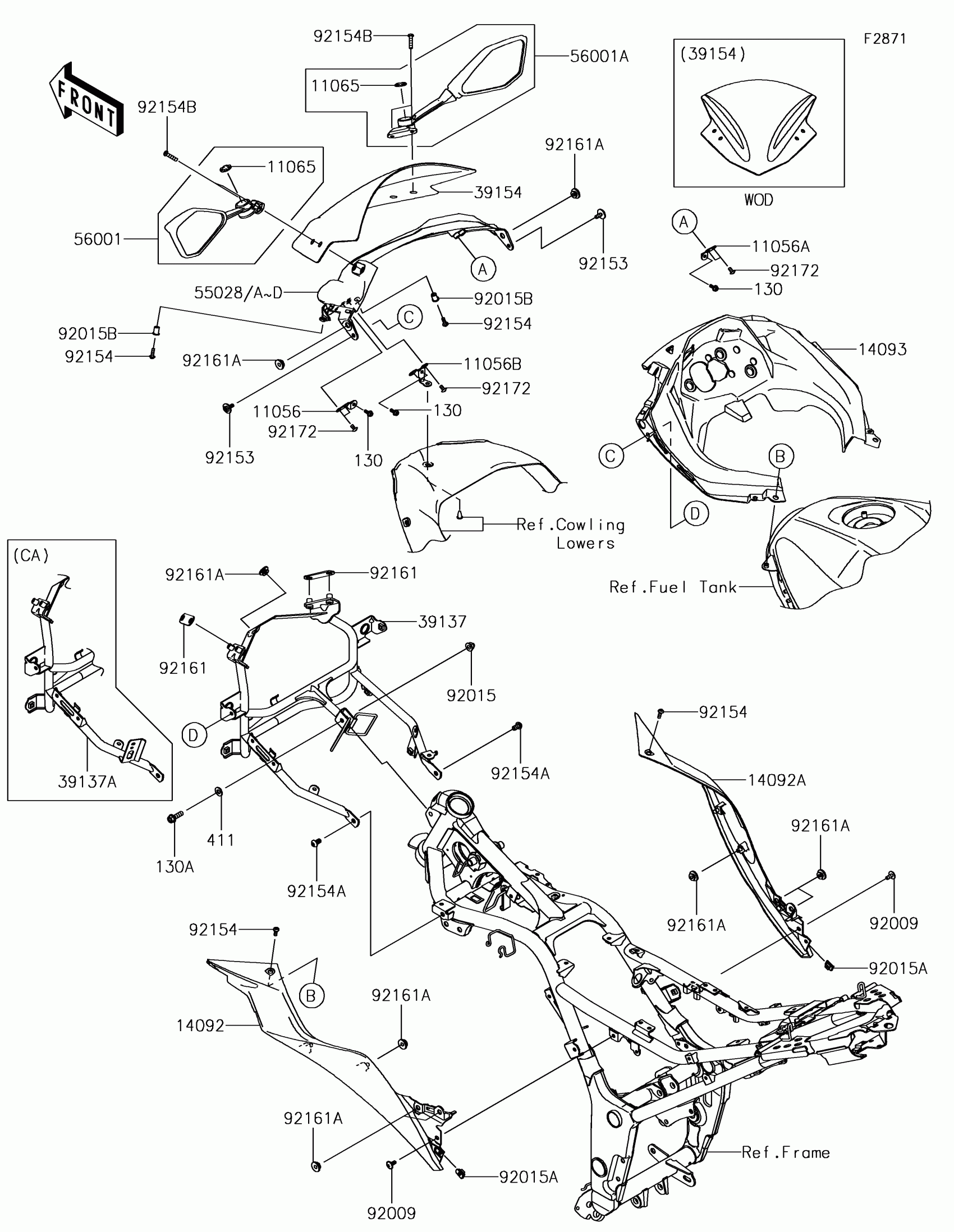

Kawasaki Ninja 300 ABS Cowling(BGF-BHFA) Diagram

#

Description
Price

11056

BRACKET,COWL. STAY,LH

11056-1608

$2.32

11056A

BRACKET,COWL. STAY,RH

11056-1610

$2.32

11056B

BRACKET,COWL. STAY

11056-1611

$3.72

11065

CAP,MIRROR

11065-0945

$2.30

130

BOLT-FLANGED,5X12

130BA0512

$2.22

130A

BOLT-FLANGED,8X25

130BB0825

$4.45

14092

COVER,TANK,LH

14092-0922

$72.31

14092A

COVER,TANK,RH

14092-0923

$72.31

14093

COVER,METER

14093-0249

$356.63

39137

STAY-COMP,COWLING,F.S.BLACK

39137-0565-18R

$310.13

39137A

STAY-COMP,COWLING,F.S.BLACK

39137-0566-18R

$310.13

39154

WINDSHIELD

39154-0318

$97.30

411

WASHER-PLAIN,8.5X18X1.6

411AB0800

$1.78

55028D

COWLING,UPP,EBONY

55028-0496-H8

$219.50

56001

MIRROR-ASSY,LH

56001-0239

$89.23

56001A

MIRROR-ASSY,RH

56001-0240

$89.23

92009

SCREW,6X14

92009-1662

$3.92

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015A

NUT,5MM

92015-1627

$5.93

92015B

NUT,WELL,5MM

92015-1757

$7.29

92153

BOLT,6X16

92153-1423

$1.34

92154

BOLT,SOCKET,5X16

92154-0182

$2.55

92154A

BOLT,SOCKET,8X14

92154-1032

$3.72

92154B

BOLT,SOCKET,6X25

92154-1142

$1.63

92161

DAMPER

92161-1467

$1.97

92161A

DAMPER

92161-1531

$3.02

92172

SCREW,TAPPING,5X10

92172-0262

$1.34
