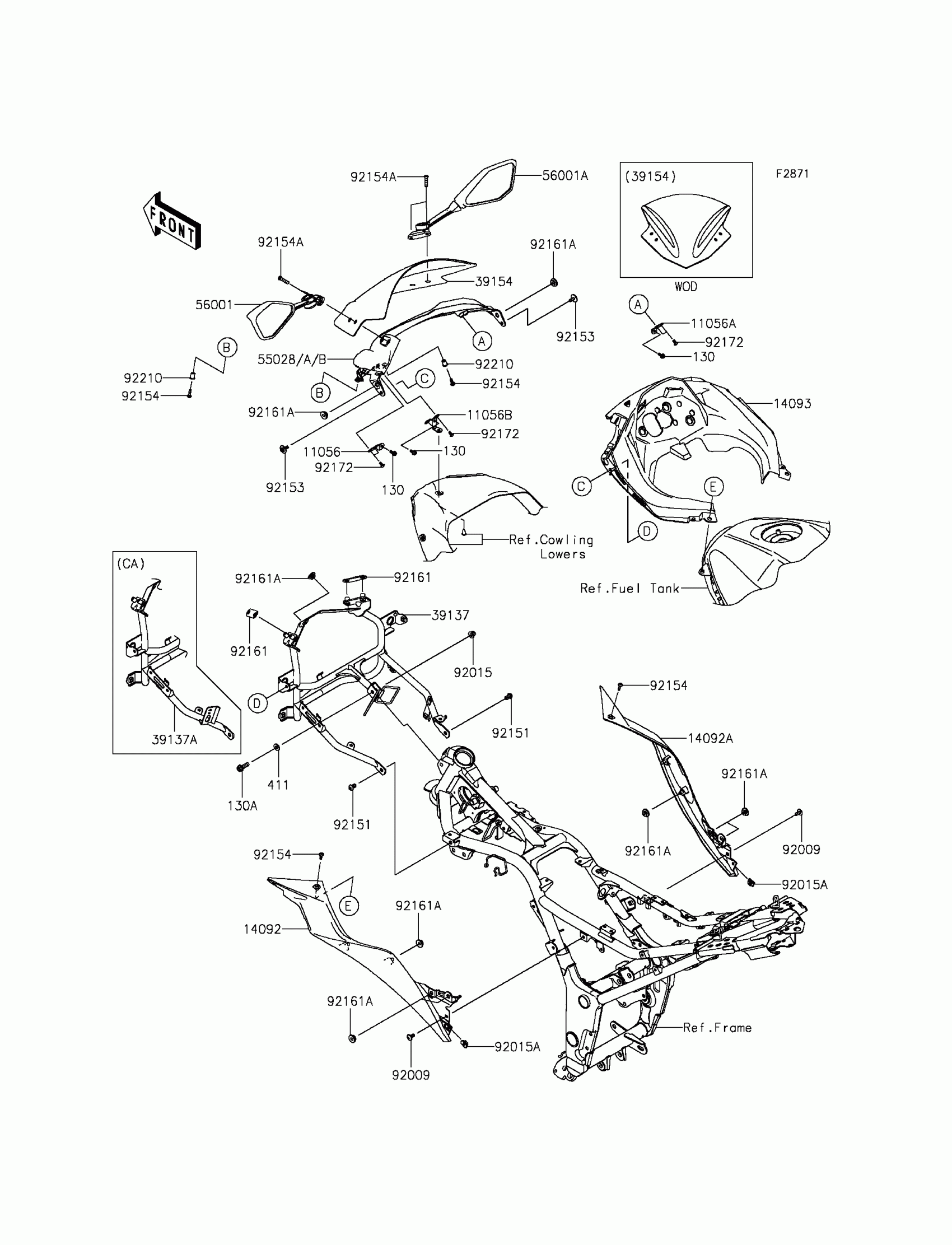

Kawasaki NINJA® 300 ABS Cowling Diagram
#
Description
Price
130
BOLT-FLANGED,5X12
130BA0512
$2.22
130A
BOLT-FLANGED,8X25
130BB0825
$4.45
411
WASHER-PLAIN,8.5X18X1.6
411AB0800
$1.78
11056
BRACKET,COWL. STAY,LH
11056-1608
$2.32
11056A
BRACKET,COWL. STAY,RH
11056-1610
$2.32
11056B
BRACKET,COWL. STAY
11056-1611
$3.72
14092
COVER,TANK,LH
14092-0922
$72.31
14092A
COVER,TANK,RH
14092-0923
$72.31
14093
COVER,METER
14093-0249
$356.63
39154
WINDSHIELD
39154-0318
$97.30
55028A
COWLING,UPP,P.S.WHITE
55028-0533-25Y
$183.36
55028B
COWLING,UPP,L.GREEN
55028-0533-777
$182.80
56001
MIRROR-ASSY,LH
56001-0239
$89.23
56001A
MIRROR-ASSY,RH
56001-0240
$89.23
92009
SCREW,6X14
92009-1662
$3.92
92015
NUT,CAP,8MM,BLACK
92015-1174
$5.00
92015A
NUT,5MM
92015-1627
$5.93
92151
BOLT,8X14
92151-1438
$2.46
92153
BOLT,6X16
92153-1423
$1.34
92154
BOLT,SOCKET,5X16
92154-0182
$2.55
92154A
BOLT,SOCKET,6X25
92154-1142
$1.63
92161
DAMPER
92161-1467
$1.97
92161A
DAMPER
92161-1531
$3.02
92172
SCREW,TAPPING,5X10
92172-0262
$1.34
92210
NUT,WELL,5MM
92210-0498
$7.29
39137
STAY-COMP,COWLING,F.S.BLACK
39137-0565-18R
$310.13
39137A
STAY-COMP,COWLING,F.S.BLACK
39137-0566-18R
$310.13
