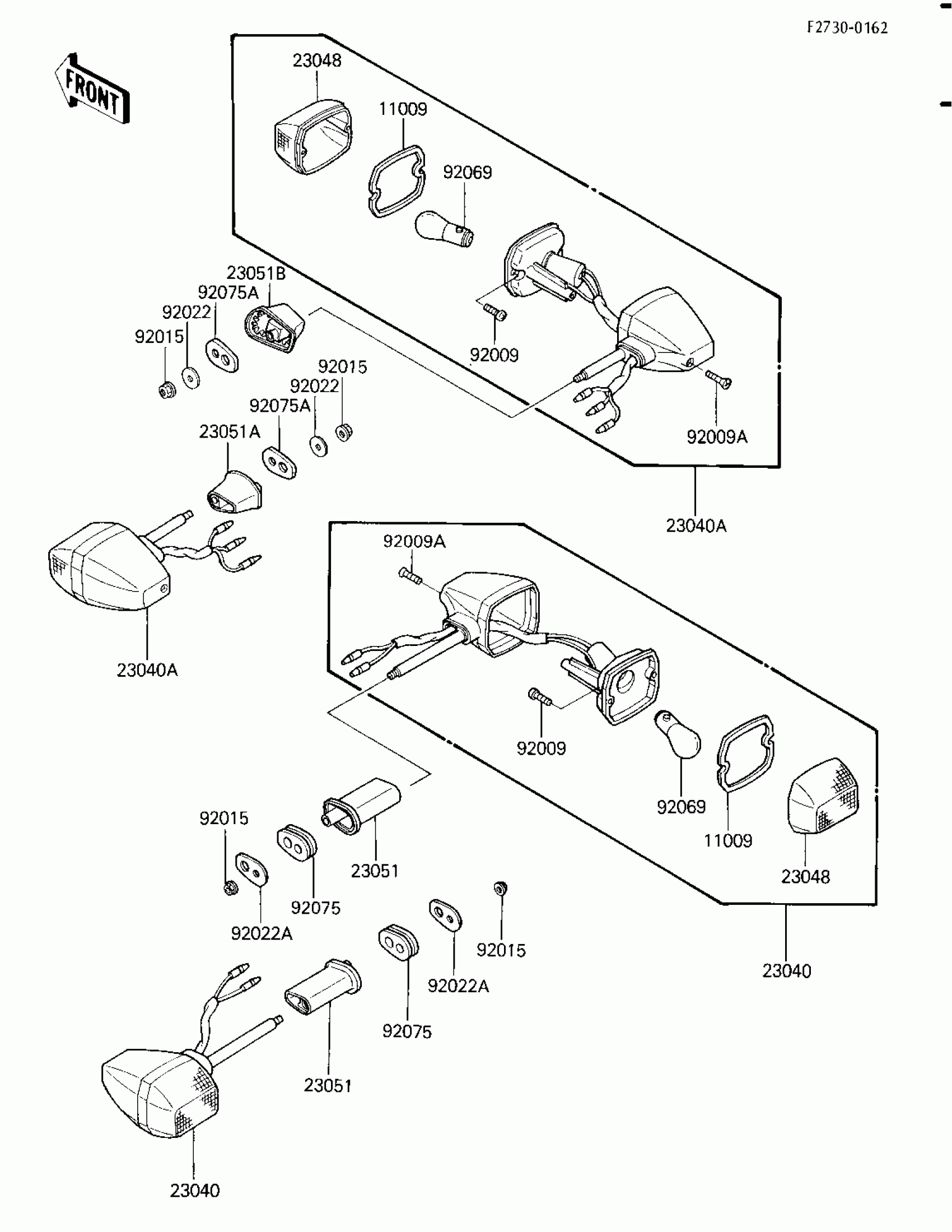

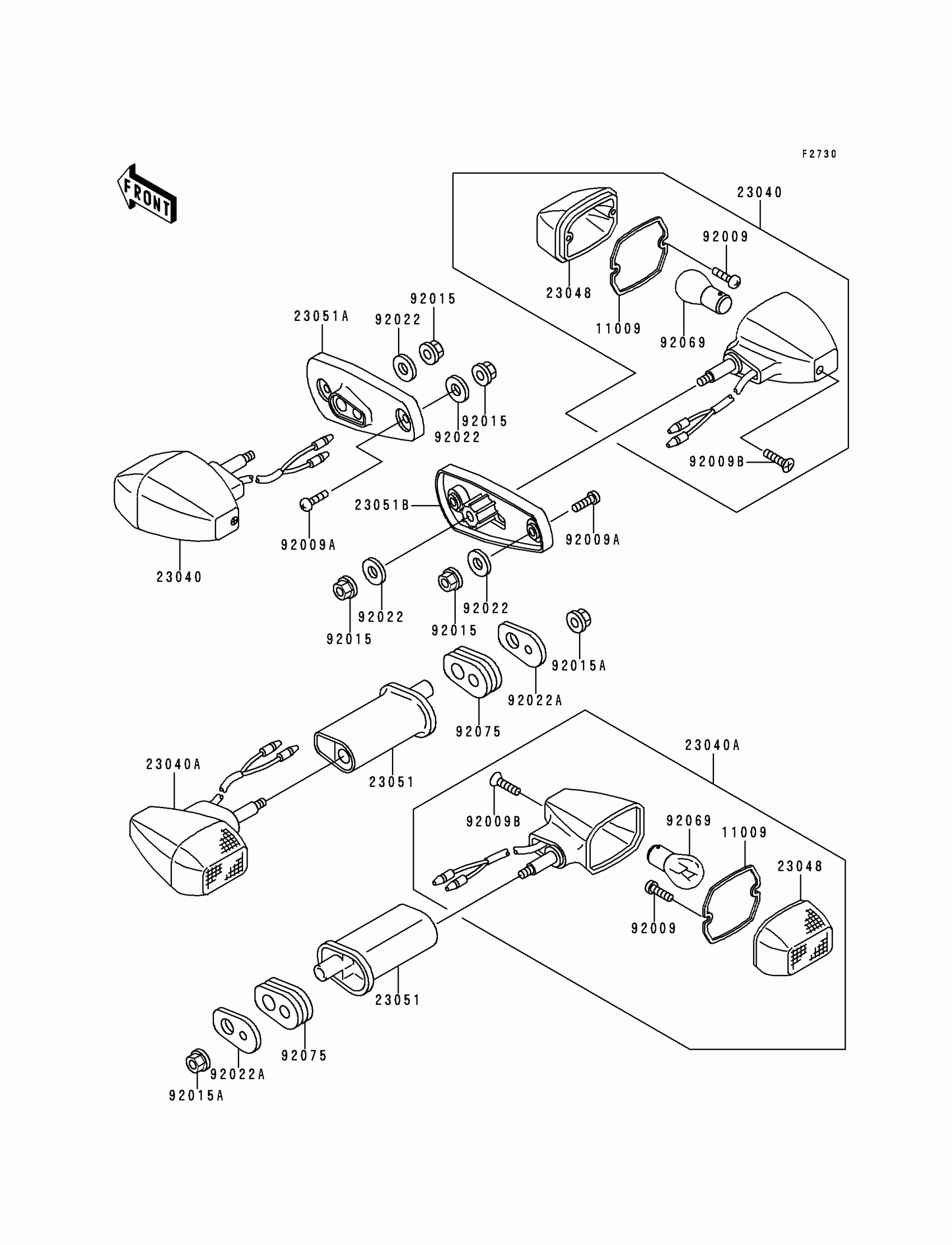

Kawasaki Ninja® 250R TURN SIGNALS Diagram

Description

Price

11009

GASKET,SIGNAL LAMP

11009-1402

$5.54

23040

LAMP-SIGNAL,RR

23040-1108

$60.17

23040A

LAMP-SIGNAL,FR

23040-1127

$77.49

23048

LENS-SIGNAL LAMP

23048-1054

$10.47

23051

BRACKET-SIGNAL LAMP

23051-1165

$24.17

23051A

BRACKET-SIGNAL LAMP,F

23051-1181

$19.82

23051B

BRACKET-SIGNAL LAMP,F

23051-1182

Unavailable

92009

SCREW,TAPPING,3X16

92009-1115

$1.76

92009A

SCREW,TAPPING,4X20

92009-1304

$4.80

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92022S

WASHER,SIGNAL LAMP

92022-1672

$5.59

92069

BULB,12V 32CP(23W)

92069-055

$5.18

92075

DAMPER,SIGNAL LAMP

92075-1698

$9.57

92075A

DAMPER

92075-1749

Unavailable
