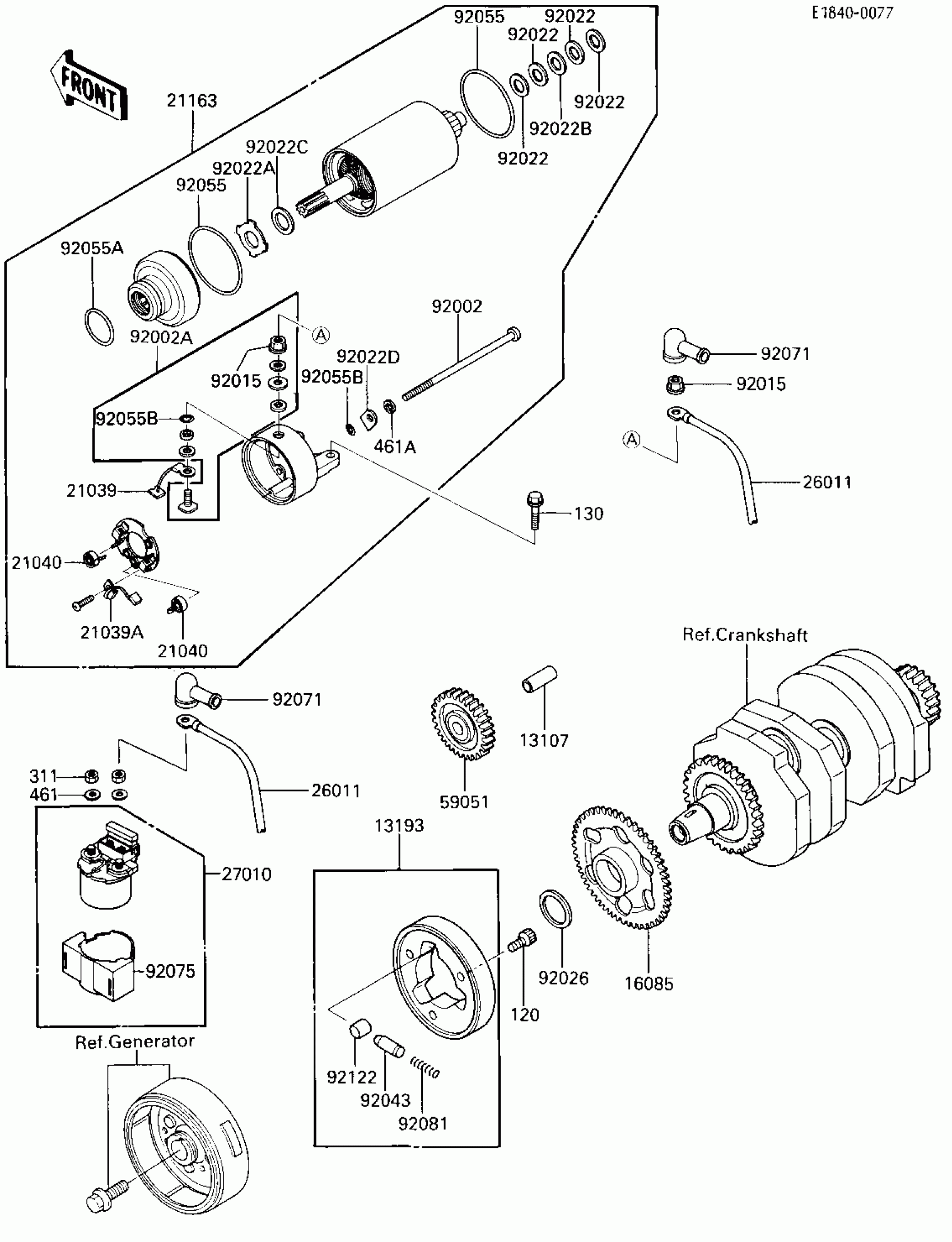

Kawasaki Ninja® 250R STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

13107

SHAFT,7.8X12X26.5

13107-1176

$10.56

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$116.39

16085

GEAR,ONEWAY CLUTCH,65T

16085-1166

Unavailable

21039

BRUSH,CARBON(+)

21039-1001

$34.49

21039A

BRUSH,CARBON(-)

21039-1056

$34.49

21040

SPRING-BRUSH

21040-1053

$10.33

21163

STARTER-ELECTRIC

21163-1100

$534.58

26011

WIRE-LEAD

26011-1376

$76.50

27010

SWITCH,MAGNETIC

27010-1213

Unavailable

59051

GEAR-SPUR,IDLE

59051-1154

$123.35

92002

BOLT,STARTER

92002-1818

Unavailable

92002A

BOLT,TERMINAL

92002-1819

$33.69

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.2

21025-011

$6.22

92022A

WASHER,THRUST SUPPORT

92022-1130

Unavailable

92022B

WASHER,9.1X18X0.8

92022-1132

$6.22

92022C

WASHER,22X12.2X0.5

92022-1714

Unavailable

92022D

WASHER,LOCK

92022-1825

Unavailable

92026

SPACER,25X40X1

92026-1004

$7.24

92043

PIN

92043-132

$6.22

92055

RING-O

92055-1042

Unavailable

92055A

RING-O

92055-1303

$11.79

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92075

DAMPER,MAGNETIC SWITCH

92075-1863

Unavailable

92081

SPRING,COIL

92081-159

$3.89

92122

ROLLER

92122-006

$6.22

120

BOLT-SOCKET,8X14

120P0814

$4.35

130

BOLT-FLANGED

130J0620

$0.43

311

NUT-HEX,6MM

311G0600

$2.19

461

WASHER SPRING 6MM

461F0600

$0.69

461A

WASHER-SPRING,5MM,BLACK

461K0500

$1.49
