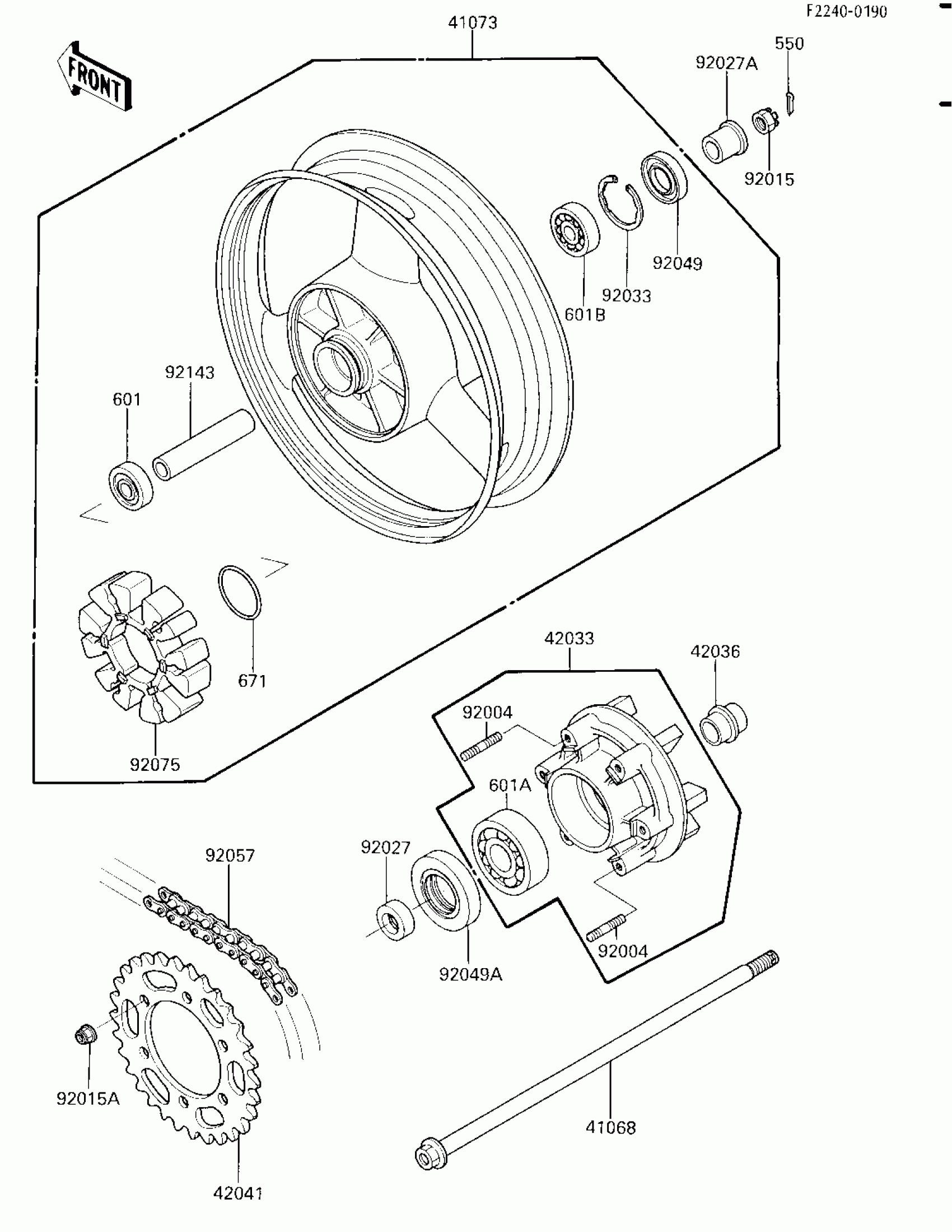

Kawasaki Ninja® 250R REAR WHEEL/HUB/CHAIN Diagram

Description

Price

41068

AXLE,RR

41068-1221

$78.34

41073

WHEEL-ASSY,RR,WHITE N

41073-1333-T6

$585.57

42033

COUPLING-ASSY,RR HUB

42033-1107

$246.81

42036

SLEEVE,RR HUB,L=30

42036-1055

$26.02

42041

SPROCKET-HUB,42T

42041-1235

$76.84

92004

STUD,10X19

92004-1111

$7.09

92015

NUT,CASTLE,16MM

42045-014

$7.86

92015A

NUT,FLANGED,10MM

92015-1335

$2.15

92027

COLLAR,RR HUB

92027-1784

$22.49

92027A

COLLAR,RR HUB

92027-1785

$34.32

92033

RING-SNAP,47MM

92033-1042

$3.36

92049

SEAL-OIL,BJN28475

92049-1056

$10.37

92049A

SEAL-OIL,TWC35527

92052-006

Unavailable

92057

DR CHAIN EK520 104L

92057-1159

$269.60

92075

DAMPER,RR HUB SHOCK

92075-1436

$83.79

92143

COLLAR,17.2X25X97

92027-1993

$24.63

550

PIN-COTTER,4.0X35

550D4035

$1.81

601

BEARING-BALL,#6203ZC3

601B6203Z

$26.08

601A

BEARING-BALL,#6205C3

601B6205

$15.38

601B

BEARING BALL #6303Z

601B6303Z

Unavailable

671

O RING

671B2550

$1.86
