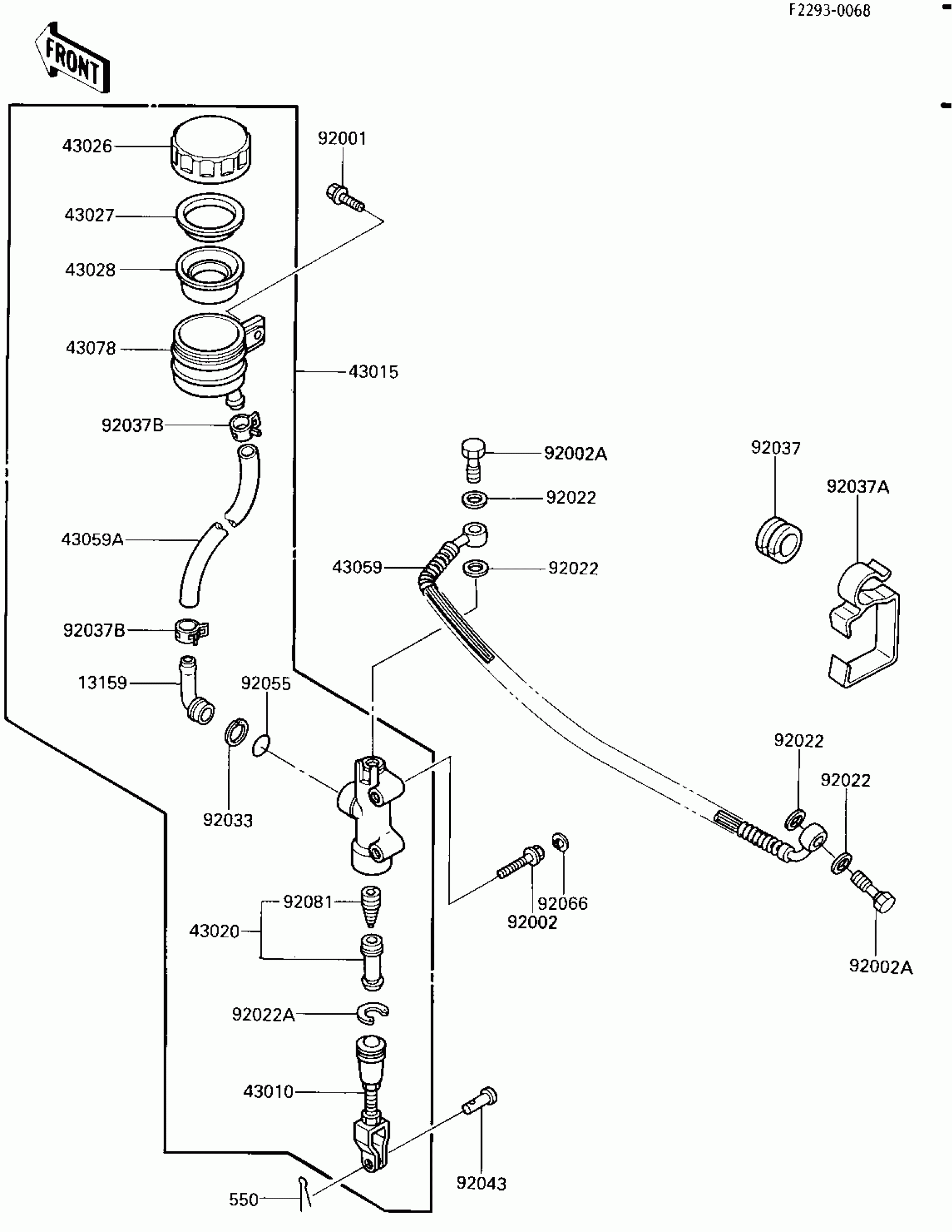

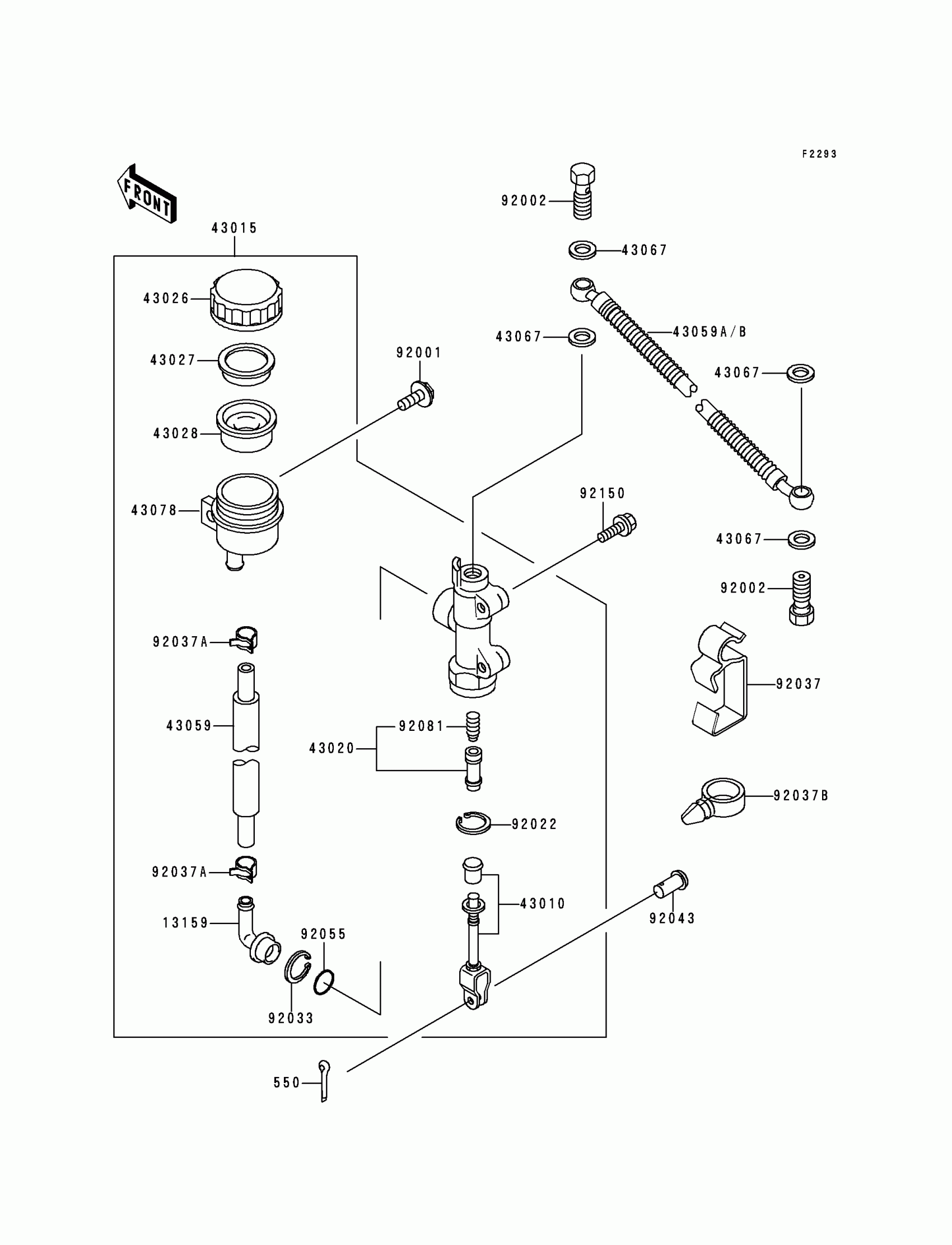

Kawasaki Ninja® 250R REAR MASTER CYLINDER Diagram

#

Description
Price

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

43010

ROD-ASSY-BRAKE

43010-1055

$69.04

43015

CYLINDER-ASSY-MASTER,

43015-1321

$237.44

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1054

Unavailable

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43059

HOSE-BRAKE,RR

43059-1336

$96.93

43059A

HOSE-BRAKE,RR MASTER CYLINDER

43059-1566

$39.57

43078

RESERVOIR,RR MASTER CYLINDER

43078-1058

$30.28

92001

BOLT,W/P,6X16

92001-1860

$4.31

92002

BOLT,8X30

92002-1485

$3.90

92002A

BOLT,OIL,L=23

92002-1888

$5.48

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

GROMMET,HOSE CLAMP

43064-007

$5.52

92037A

CLAMP,RR BRAKE HOSE

92037-1498

$8.21

92037B

CLAMP,BRAKE HOSE

92037-1547

$12.35

92043

PIN,8X16

92043-1013

$9.91

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92066

PLUG

92066-1216

$4.65

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

550

PIN COTTER 2.0X15

550D2015

$1.04
