Description

Price

14024

COVER,METER

14024-1278

Unavailable

14024A

COVER,METER HOUSING

14024-1289

Unavailable

23008

SOCKET-ASSY,METER

23008-1314

$96.63

25001

METER-ASSY,MPH

25001-1656

$759.59

25001

METER-ASSY,MPH

25001-1656

$759.59

25005

SPEEDOMETER,MPH

25005-1332

$277.18

25005A

SPEEDOMETER,KPH (Canada)

25005-1333

Unavailable

25015

TACHOMETER,X1000R/MIN

25015-1256

$520.25

25023

COVER-METER CASE

25023-1140

$54.83

25023A

COVER-METER CASE,UPP

25023-1141

$117.41

28011

METER,TEMP

28011-1083

$70.36

92009

SCREW,TAPPING,4X16

92009-1163

$4.10

92009A

SCREW,3X22

92009-1293

$3.91

92009B

SCREW,3X10

92009-1382

$4.99

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92075

DAMPER,METER BRACKET

92075-1385

$5.11

92077

BOOT,TRIP RESET KNOB

92077-1061

$9.50

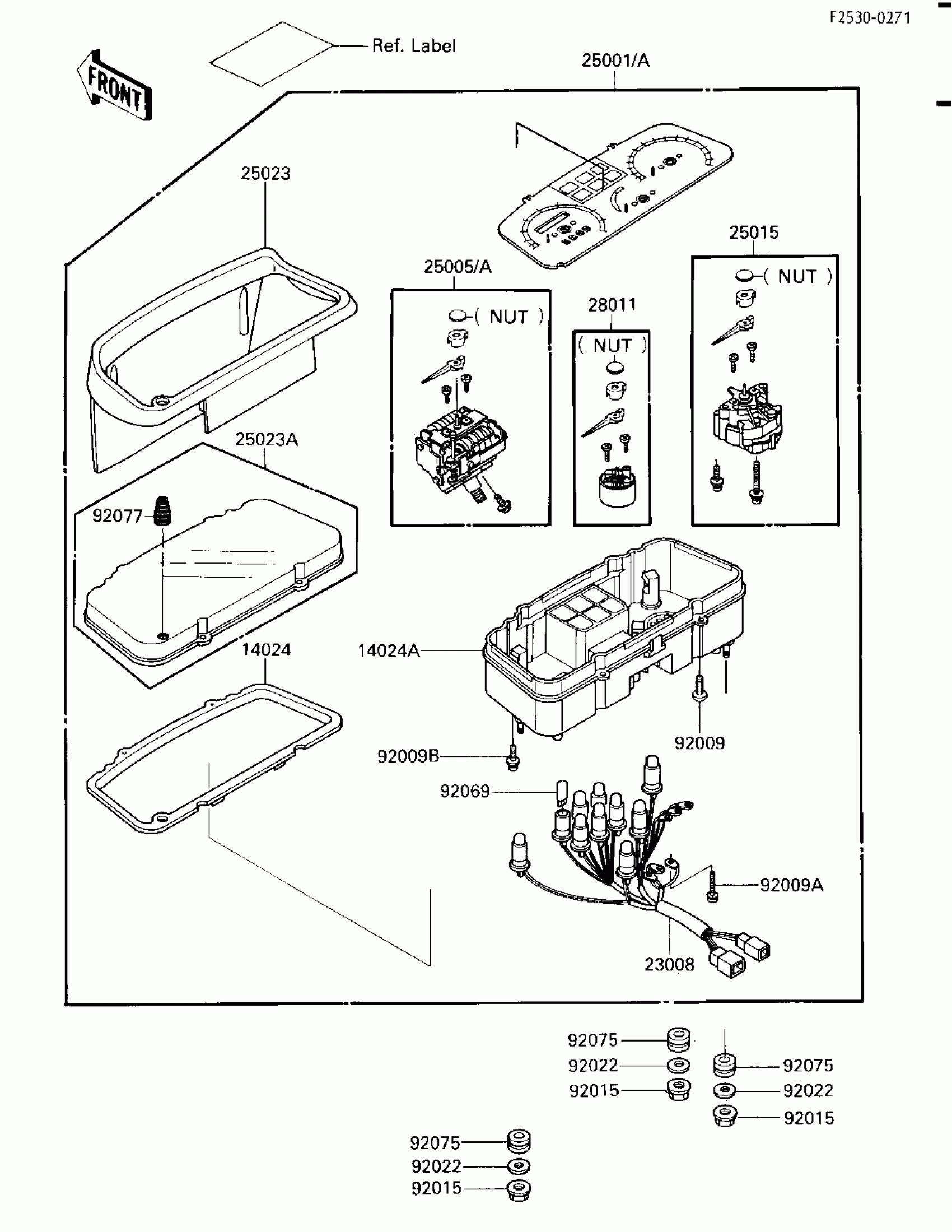

Kawasaki Ninja® 250R METERS Diagram

COVER,METER

COVER,METER HOUSING

SOCKET-ASSY,METER

METER-ASSY,MPH

METER-ASSY,MPH

SPEEDOMETER,MPH

SPEEDOMETER,KPH (Canada)

TACHOMETER,X1000R/MIN

COVER-METER CASE

COVER-METER CASE,UPP

METER,TEMP

SCREW,TAPPING,4X16

SCREW,3X22

SCREW,3X10

NUT,FLANGED,5MM

WASHER,5.2X16X1.2

BULB,12V 3.4W,T10

DAMPER,METER BRACKET

BOOT,TRIP RESET KNOB
