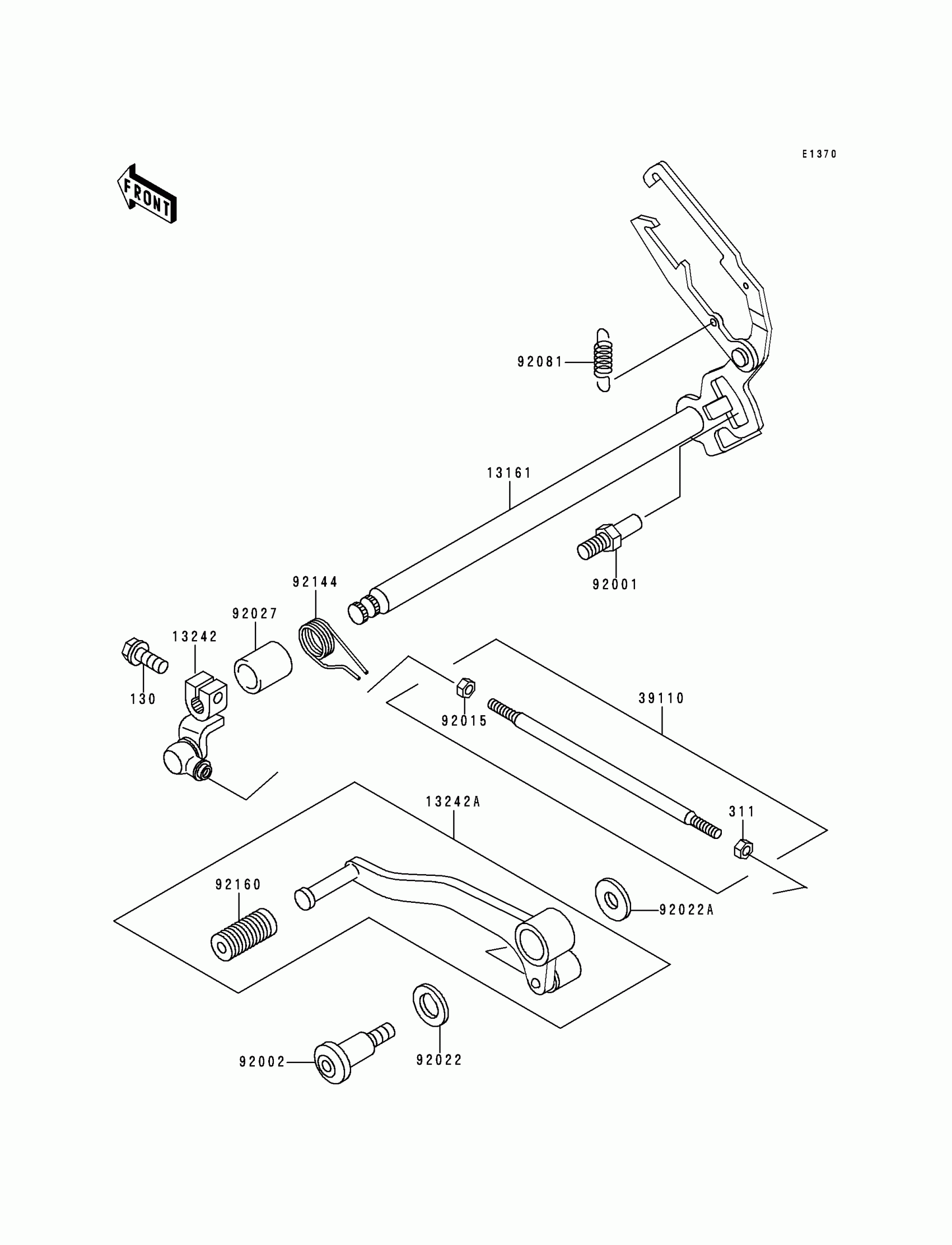

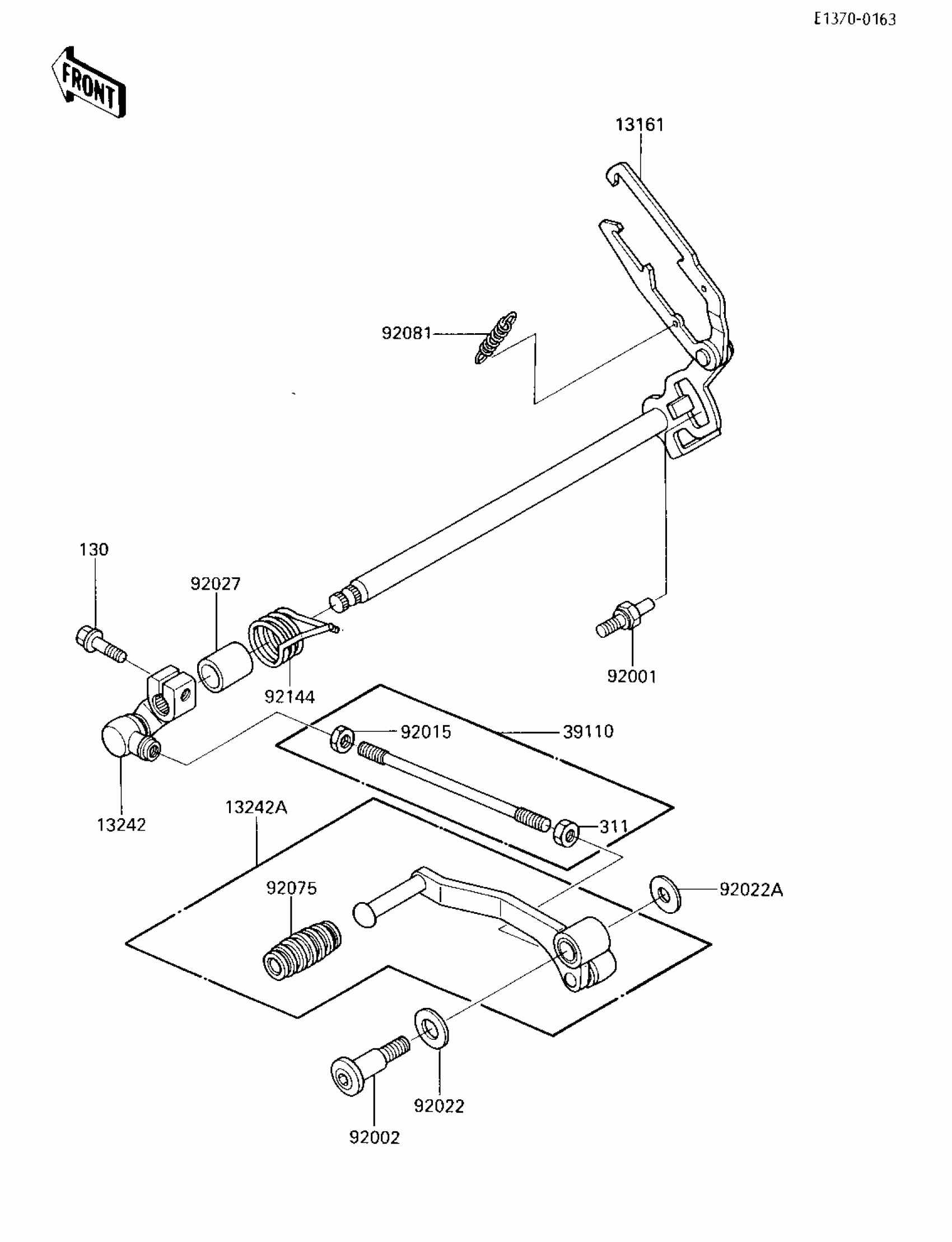

Kawasaki Ninja® 250R Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

$6.86

311

NUT-HEX

311J0600

$1.01

13161

LEVER-COMP-CHANGE SHAFT

13161-1131

$90.11

13242

LEVER-ASSY-CHANGE

13242-1214

$53.68

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-1215

$49.92

39110

ROD-ASSY-TIE

39110-1075

$13.21

92001

BOLT,RETURN SPRING

92001-1455

$4.69

92002

BOLT,CHANGE PEDAL

92002-1926

$15.92

92015

NUT,LEFT HANDED,6MM

92015-1178

$4.31

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92022A

WASHER,8.5X20X1.6

92022-1561

$4.31

92027

COLLAR,13X18.3X21.5

92027-1440

$5.52

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92144

SPRING,CHANGE PEDAL RETURN

92144-1074

$9.43

92160

DAMPER,CHANGE PEDAL

92160-1036

$5.05
