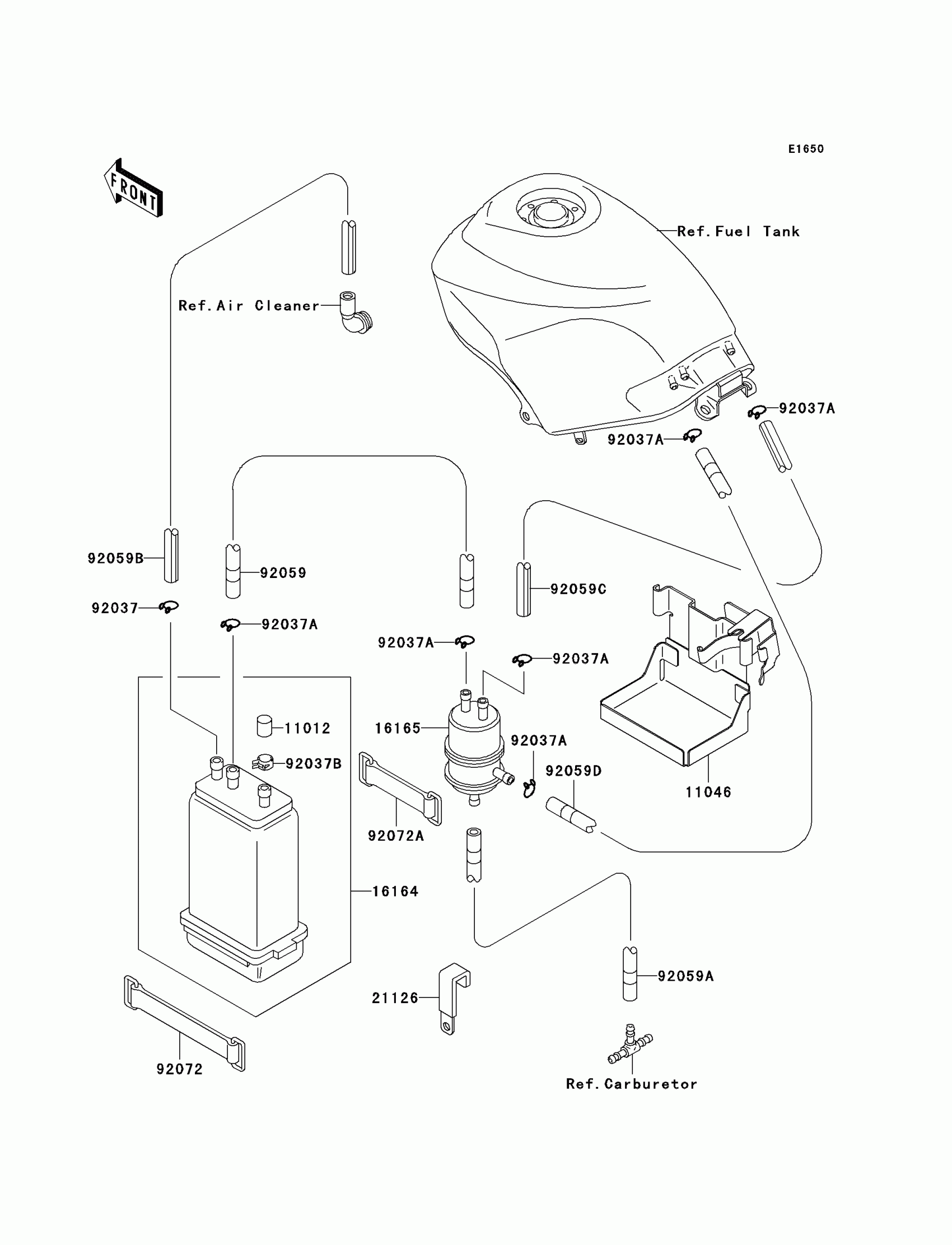

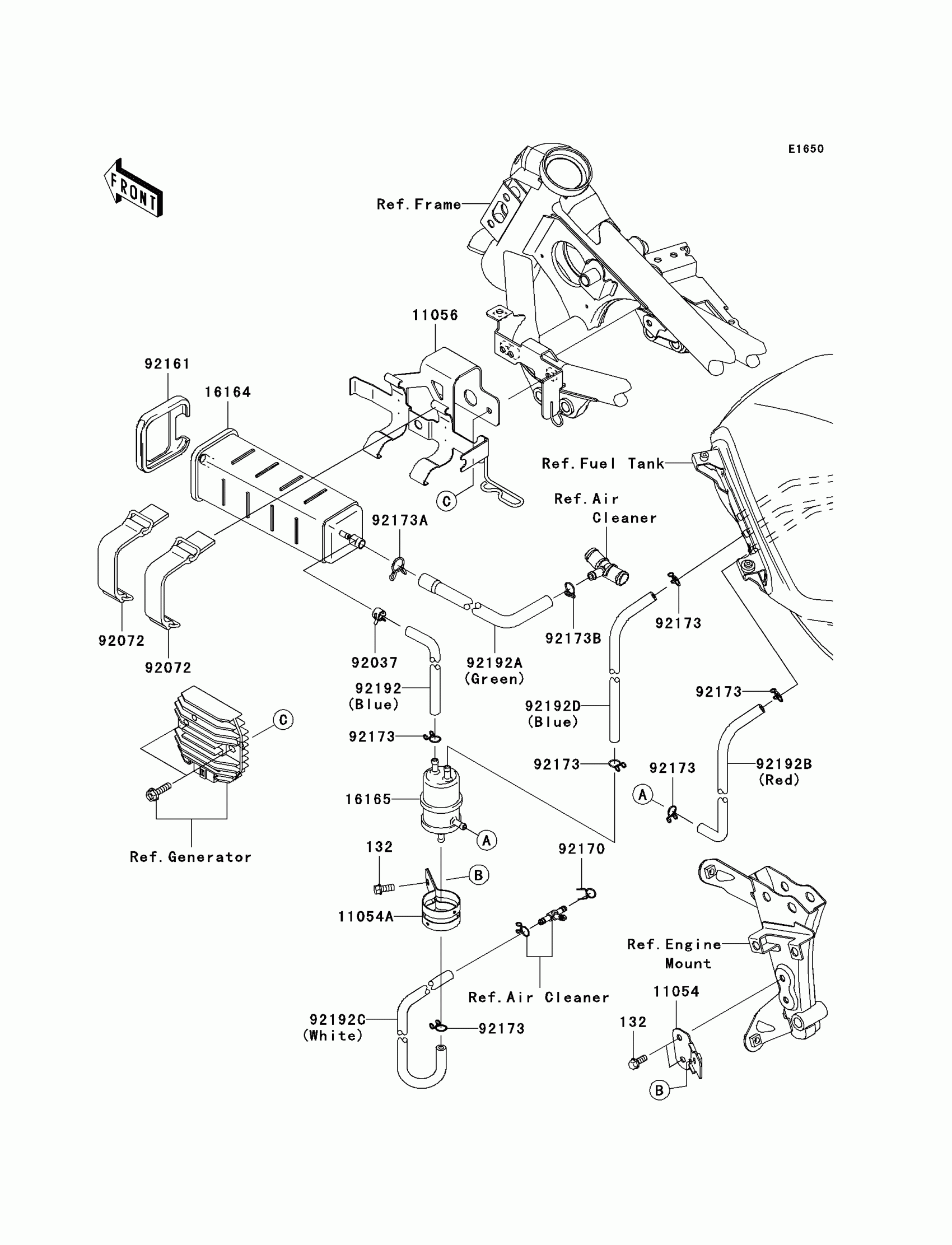

Kawasaki NINJA® 250R Fuel Evaporative System(CA) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

11054

BRACKET,SEPARATOR

11054-1559

$9.26

11054A

BRACKET

11054-1560

$12.74

11056

BRACKET,CANISTER

11056-0122

$50.42

16164

CANISTER

16164-0009

$137.47

16165

SEPARATOR

16165-1001

$90.01

92037

CLAMP

92037-1601

$12.92

92072

BAND,L=90

92072-0135

$18.06

92161

DAMPER

92161-0762

$9.00

92170

CLAMP

92170-1450

$6.34

92173

CLAMP

92173-0050

$6.61

92173A

CLAMP,14MM

92173-0192

$3.74

92173B

CLAMP,11.5MM

92173-0197

$5.70

92192

TUBE,SEPARATOR-CANISTER,BLUE

92192-0464

$47.88

92192A

TUBE,CANISTER-FITTING,GREEN

92192-0465

$57.30

92192B

TUBE,SEPARATOR-TANK,RED

92192-0466

$55.83

92192C

TUBE,SEPARATOR-FITTING,WHITE

92192-0467

$15.77

92192D

TUBE,TANK-SEPARATOR,BLUE

92192-0813

$38.89
