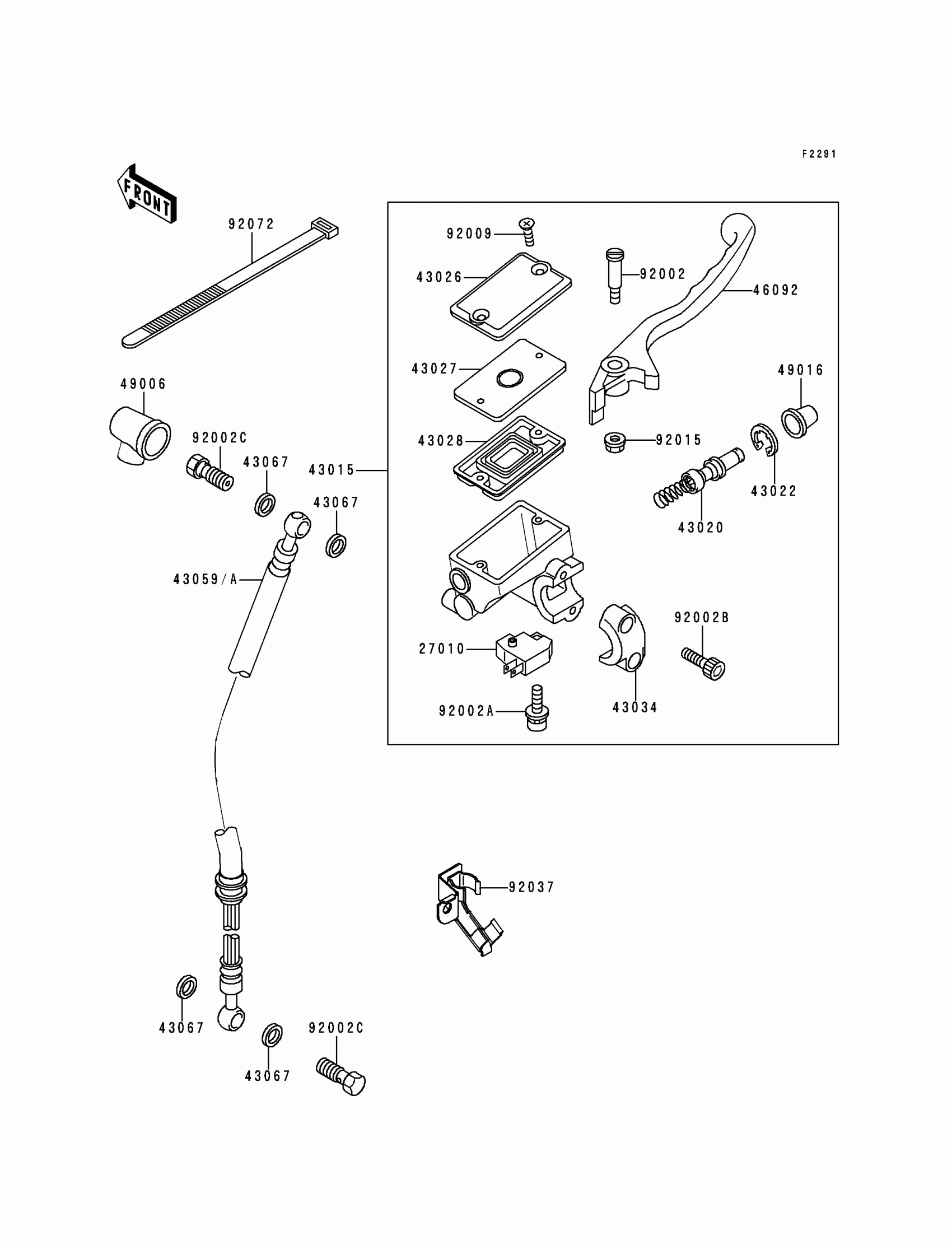

Kawasaki Ninja® 250R FRONT MASTER CYLINDER Diagram

Description

Price

27010

SWITCH,BRAKE

27010-1170

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-1330

Unavailable

43020

PISTON-COMP-BRAKE

43020-1098

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE,FR

43026-1055

$48.83

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$35.87

43059

HOSE-BRAKE,FR

43059-1335

$96.93

46092

LEVER-GRIP,FRONT BRAKE

46092-1117

$24.80

49006

BOOT,DUST

49006-1041

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

SCREW,5MM,BLACK

92001-1727

$4.11

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.65

92002C

BOLT,OIL,L=23

92002-1888

$5.48

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037

GROMMET,HOSE CLAMP

43064-007

$5.52

92037A

CLAMP,BRAKE HOSE

92037-1218

$22.68

92037B

CLAMP,HOSE

92037-1728

$14.96

92072

BAND,L=186

92072-056

$5.00

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41
