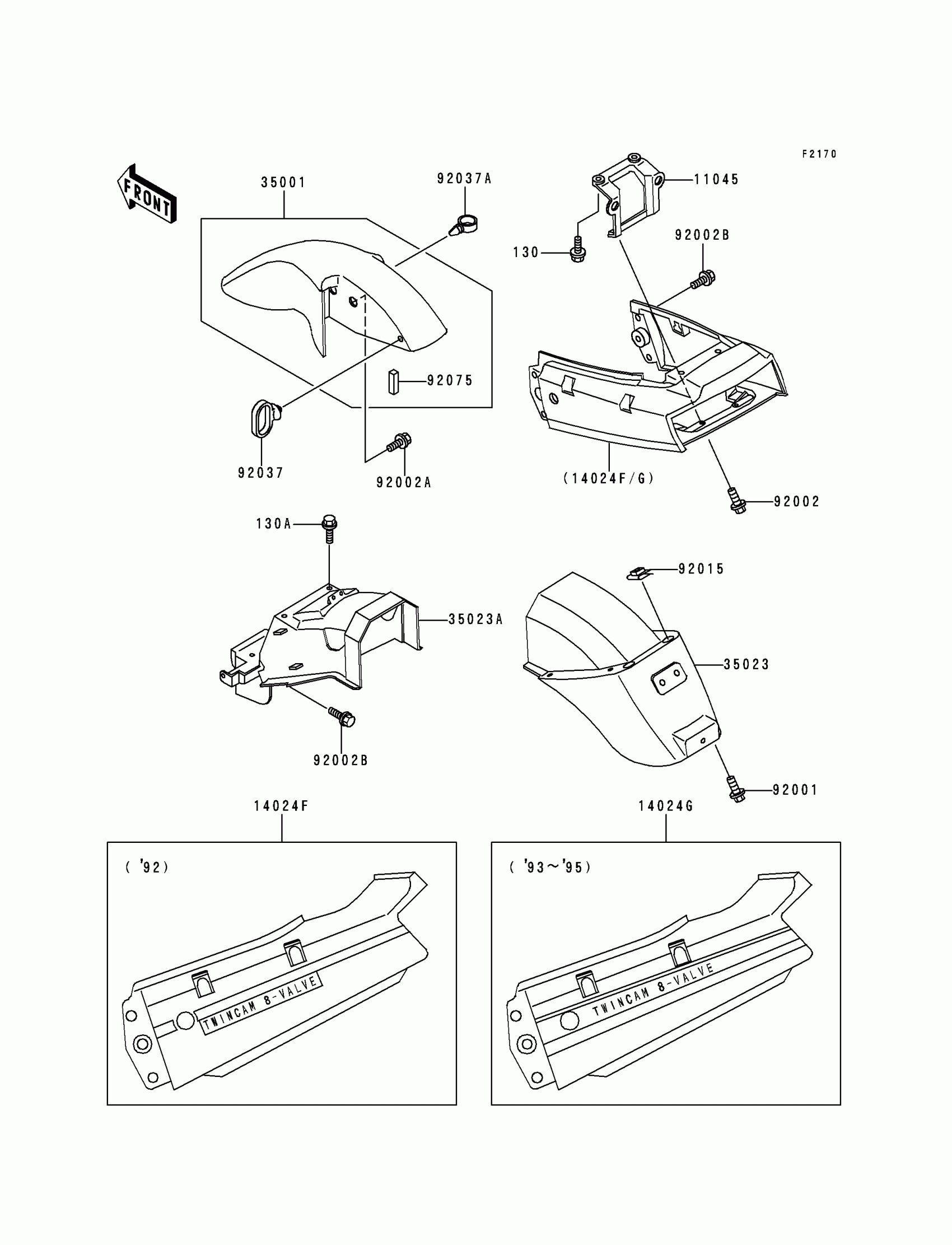

Kawasaki Ninja® 250R Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X25

130D0625

Unavailable

130A

BOLT-FLANGED,6X16

130G0616

$1.17

11045

BRACKET,TAIL LAMP

11045-1639

Unavailable

14024G

COVER,TAIL,EBONY

14024-5216-H8

Unavailable

35001

FENDER-ASSY-FRONT,EBONY

35001-1130-H8

$279.95

35023

FENDER-REAR,RR,BLACK

35023-1220-6Z

$90.48

35023A

FENDER-REAR,FR

35023-1224

$104.74

92001

BOLT,6X20

92001-1773

$3.96

92002

BOLT,6X25

92002-1135

$4.31

92002A

BOLT,FLANGED,8X16

92002-1200

$4.92

92002B

BOLT,6X14

92002-1351

$4.31

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92037

CLAMP,CABLE

92037-1459

$21.77

92037A

CLAMP,HOSE

92037-1827

$7.45

92075

DAMPER

92075-1867

$4.78
