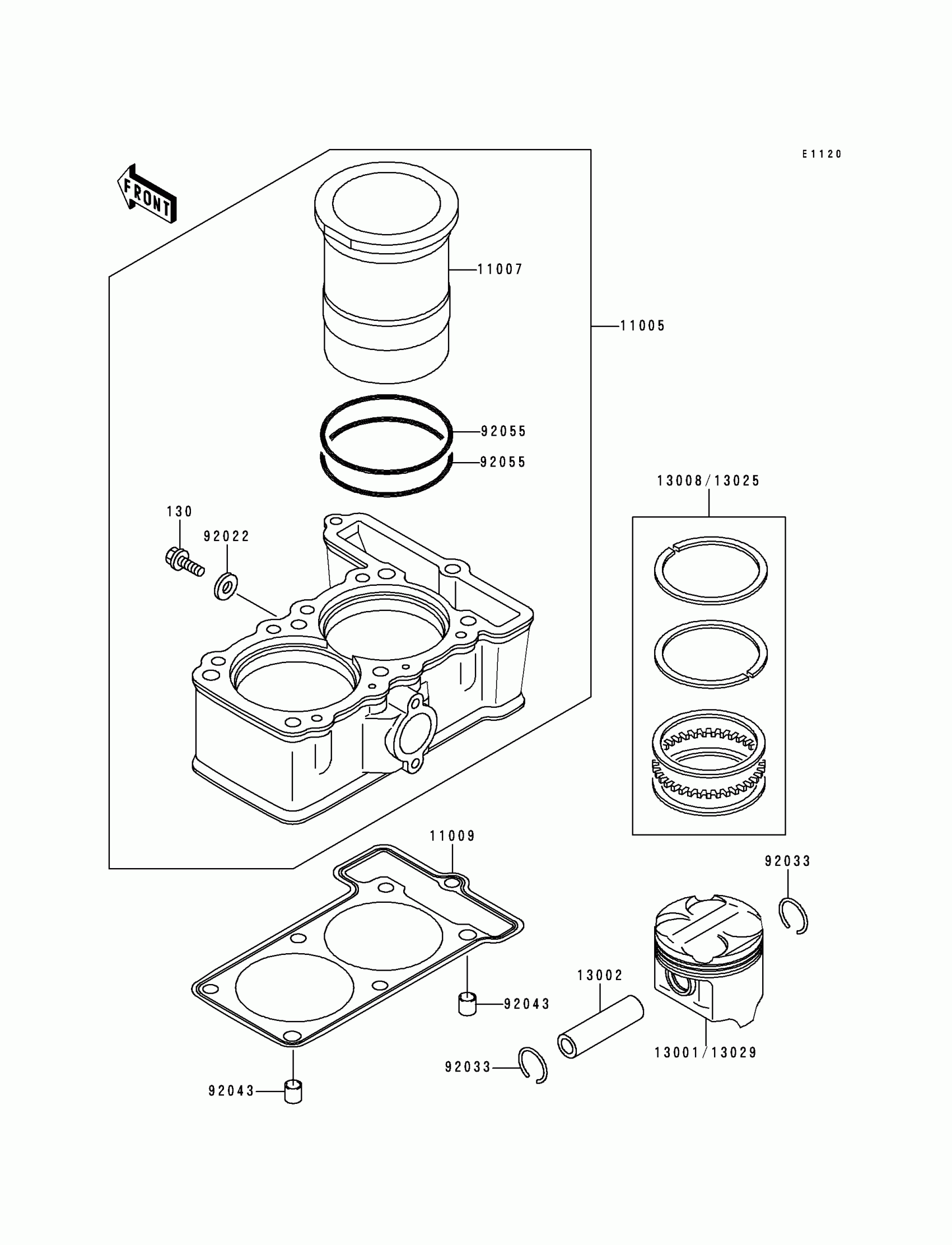

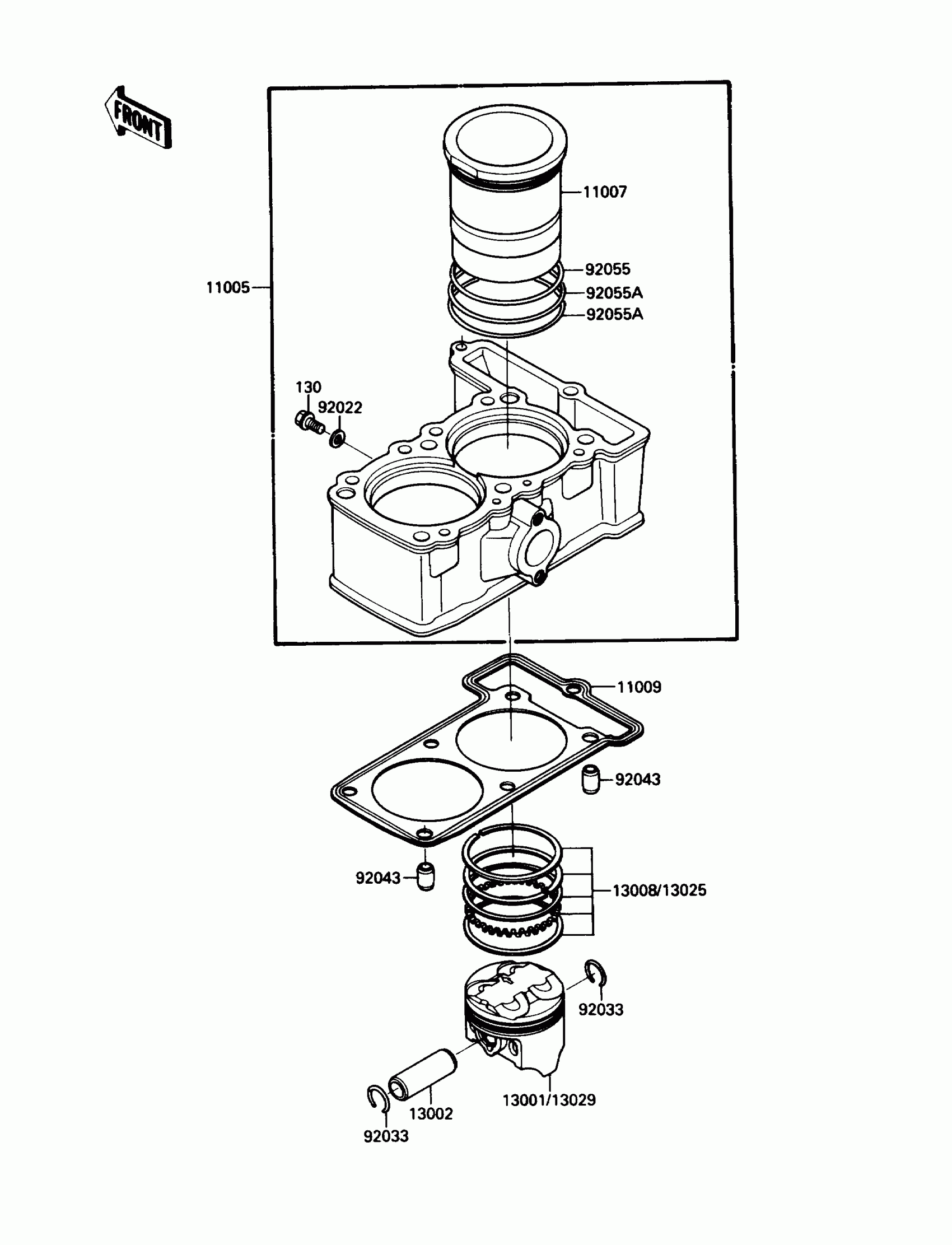

Kawasaki Ninja® 250R Cylinder/Piston(s) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130C0610

$3.84

11005

CYLINDER-ENGINE

11005-1623

$822.77

11007

LINER-CYLINDER

11007-1111

$138.78

11009

GASKET,CYLINDER BASE

11009-1572

$39.56

13001

PISTON-ENGINE,STD

13001-1325

$76.32

13002

PIN-PISTON

13002-1097

$22.21

13008

RING-SET-PISTON,STD

13008-1157

Unavailable

13025

RING-SET-PISTON L,O/S,0.50

13025-1120

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1201

Unavailable

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP,PISTON PIN

92033-1161

$3.89

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,68.2X2.4

92055-1338

$5.52
