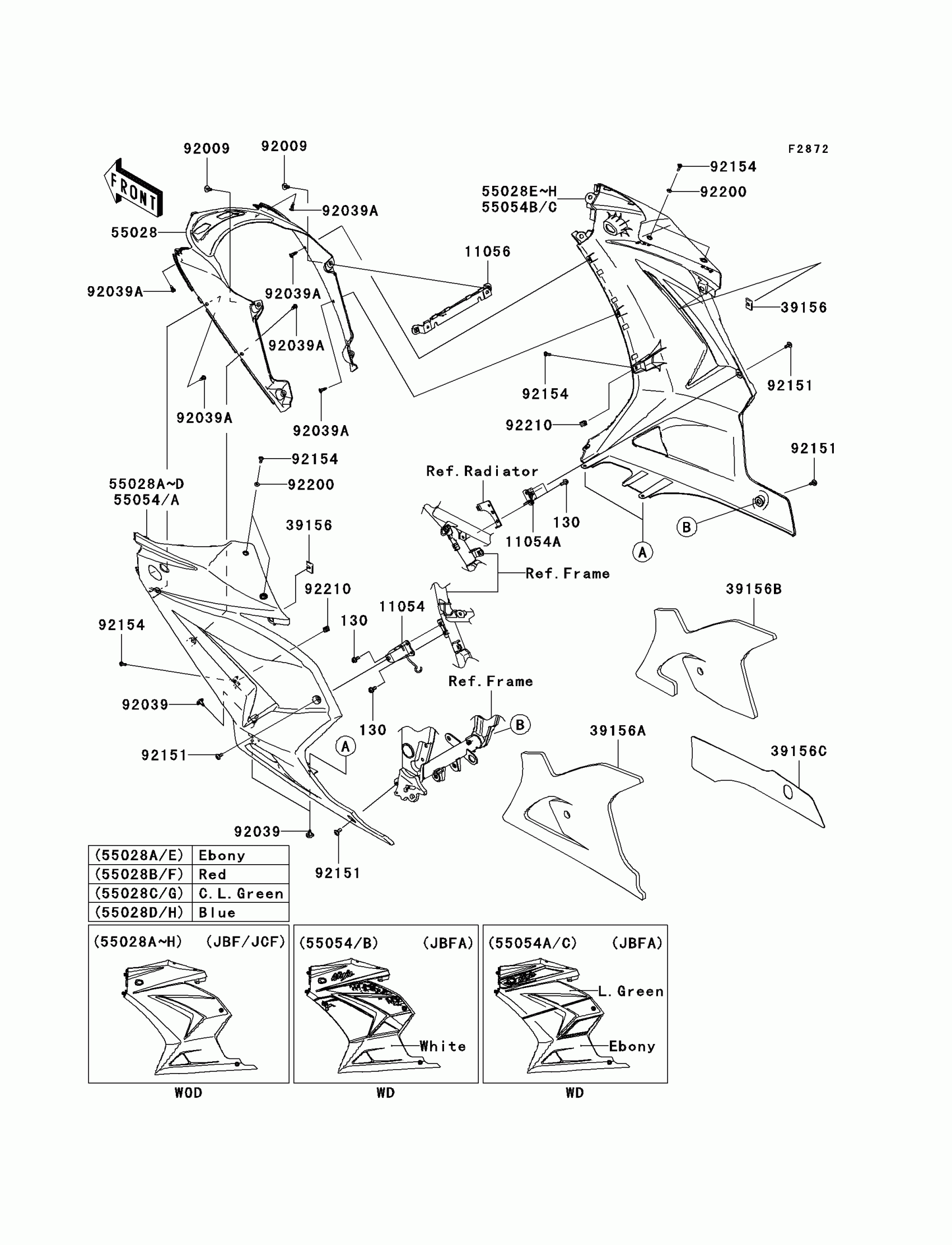

Kawasaki NINJA® 250R Cowling Lowers(JBF-JCF) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BB0614

$1.77

11054

BRACKET,SIDE COWLING,LH,BLACK

11054-1752-18R

Unavailable

11054A

BRACKET,SIDE COWLING,RH,BLACK

11054-1753-18R

$34.76

11056

BRACKET,RADIATOR COWL.

11056-0119

$44.61

39156

PAD,SIDE COWLING

39156-0607

$10.61

39156A

PAD,SIDE COWLING,LH,LWR

39156-0611

$83.55

39156B

PAD,SIDE COWLING,RH,LWR

39156-0615

$83.55

39156C

PAD,SIDE COWLING,RH

39156-0662

$62.17

55028

COWLING,RADIATOR

55028-0229

$287.20

55028C

COWLING,SIDE,LH,C.L.GREEN

55028-0271-15P

$491.89

55028G

COWLING,SIDE,RH,C.L.GREEN

55028-0272-15P

$355.39

92009

SCREW,6X14

92009-1662

$2.99

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92039A

RIVET

92039-0060

$2.34

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92154

BOLT,SOCKET,5X16

92154-0182

$1.81

92200

WASHER,NYLON,5.2X12X1

92200-1011

$2.15

92210

NUT,PLATE,5MM

92210-0262

$1.04

55028B

COWLING,SIDE,LH,P.RED

55028-0271-15I

Unavailable

55028F

COWLING,SIDE,RH,P.RED

55028-0272-15I

$489.92
