Partiron

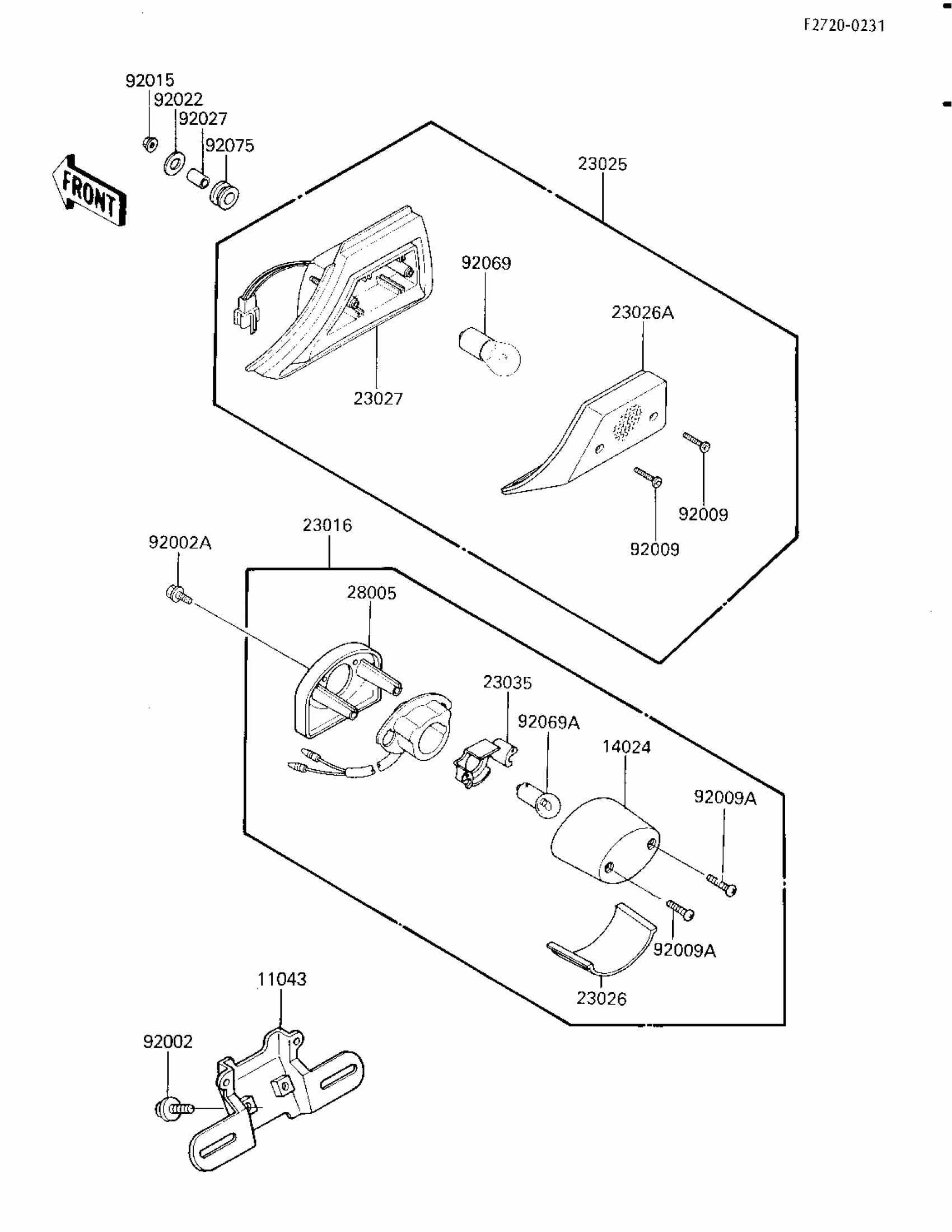

Kawasaki Ninja® 250R TAILLIGHT Diagram

#

Description
Price

11043

BRACKET,LICENSE PLATE

11043-1440

$25.68

14024

COVER,LICENSE LAMP

14025-1725

$17.20

23016

LAMP-ASSY,LICENSE PLA

23016-1071

Unavailable

23025

LAMP-TAIL

23025-1147

$136.93

23026

LENS,LICENSE LAMP

23026-1064

$24.51

23026A

LENS,TAIL LAMP

23026-1078

$48.53

23027

BODY-COMP-TAIL LAMP

23027-1074

$41.38

23035

REFLECTOR-LAMP,LICENSE

23035-1060

Unavailable

28005

BODY-LAMP,LICENSE

28005-1051

$25.64

92002

BOLT,6X14

92002-1351

$3.43

92002A

BOLT,TAPPING,5X16

92002-1472

$1.32

92009

SCREW,TAPPING,4X20

92009-1297

$3.75

92009A

SCREW,TAPPING,4X20

92009-1378

$3.68

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92027

COLLAR,6.8X10X12

92027-162

$5.21

92069

BULB,12V 27/8W

92069-059

$6.45

92069A

BULB,12V 8W

92069-1012

Unavailable

92075

DAMPER,10X24X12

92075-1690

$3.97
