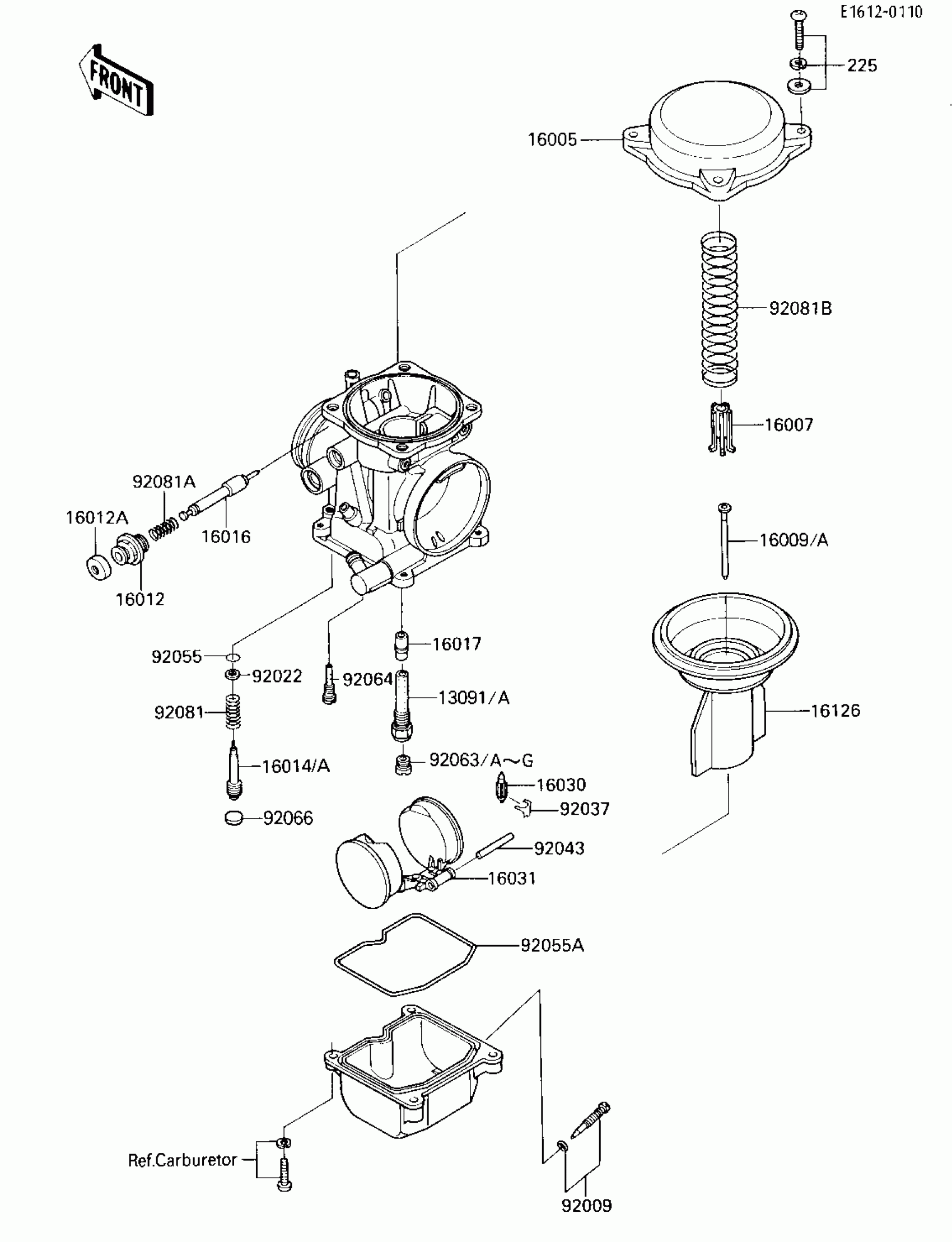

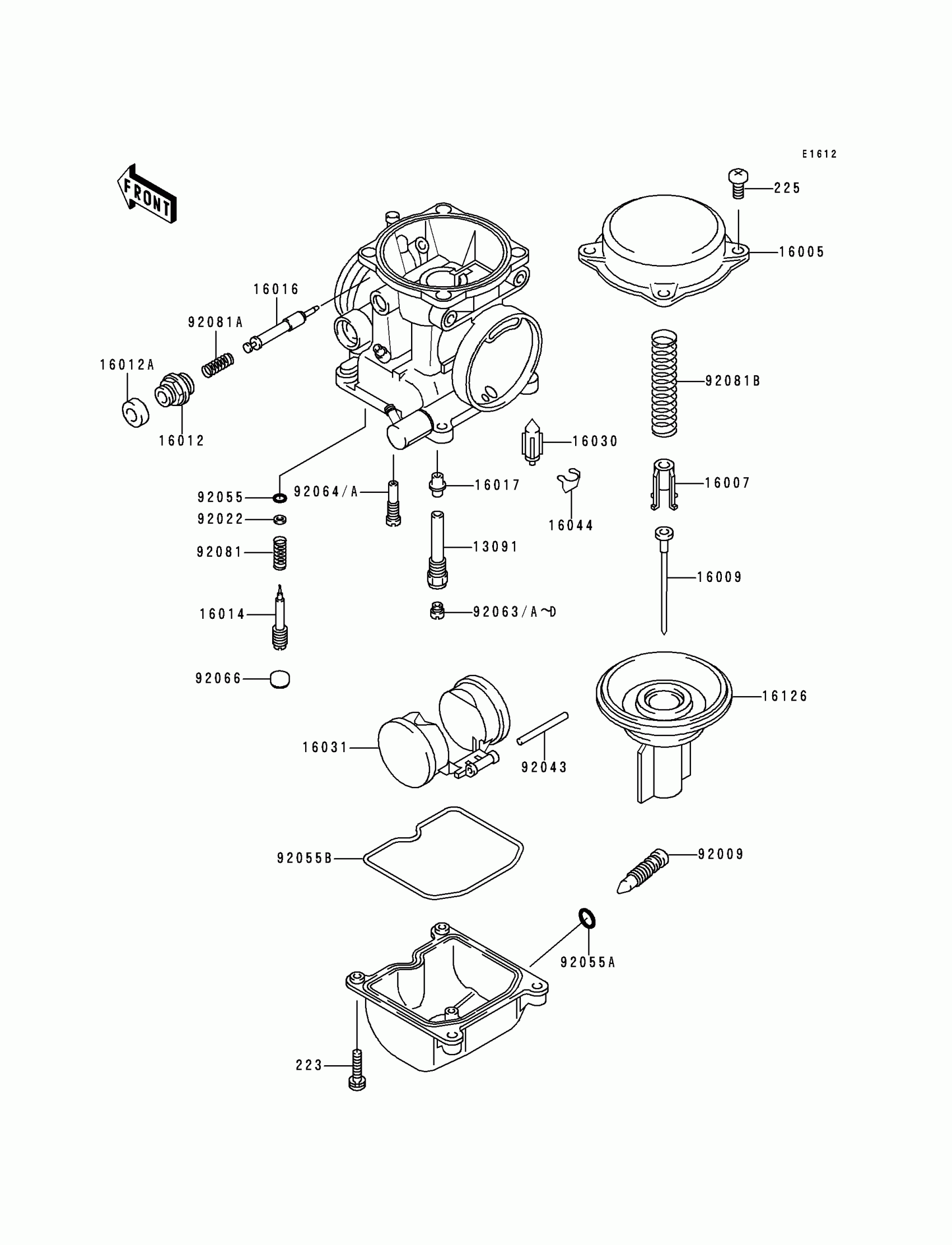

Kawasaki Ninja® 250R CARBURETOR PARTS Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1406

$33.38

13091A

HOLDER,NEEDLE JET

13091-1425

$29.68

16005

TOP-CHAMBER,MIXING

16005-1056

$68.90

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$26.23

16009

NEEDLE-JET,LH,N52H

16009-1318

$33.75

16009A

NEEDLE-JET,RH,N52I

16009-1319

$20.44

16012

CAP-STARTER PLUNGER

16012-1051

$10.88

16012A

CAP-STARTER PLUNGER

16012-1052

$15.04

16014

SCREW-PILOT AIR

16014-1029

$19.09

16014A

SCREW-PILOT AIR

16014-1054

$24.57

16016

PLUNGER,STARTER

16016-1061

$43.41

16017

JET-NEEDLE,01D34

16017-1286

$51.49

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1056

$53.59

16126

VALVE,VACUUM

16126-1160

$200.34

92009

SCREW,DRAIN,M6X1.0

92009-1095

$14.92

92022

WASHER,PLAIN

92022-1003

$4.31

92037

CLAMP,FLOAT VALVE

16044-007

$7.91

92043

PIN,FLOAT

92043-1148

$11.14

92055

RING-O,PILOT ADJUST

92055-1002

$4.31

92055A

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92063

JET-MAIN,#110

92063-1114

$14.79

92063A

JET-MAIN,#110

92063-1114

$14.79

92063B

JET-MAIN,#105

92063-1009

$15.76

92063C

JET-MAIN,#102

92063-1115

$15.04

92063D

JET-MAIN,#108

92063-1116

$14.79

92063F

JET-MAIN,#112

92063-1117

$14.79

92063G

JET-MAIN,#115

92063-1118

$14.79

92064

JET-PILOT,#35

92064-1101

$17.03

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$5.46

92081A

SPRING,STARTER PLUNGER

92081-1761

$9.36

92081B

SPRING,VACUUM VALVE

92081-1912

$25.81

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01
