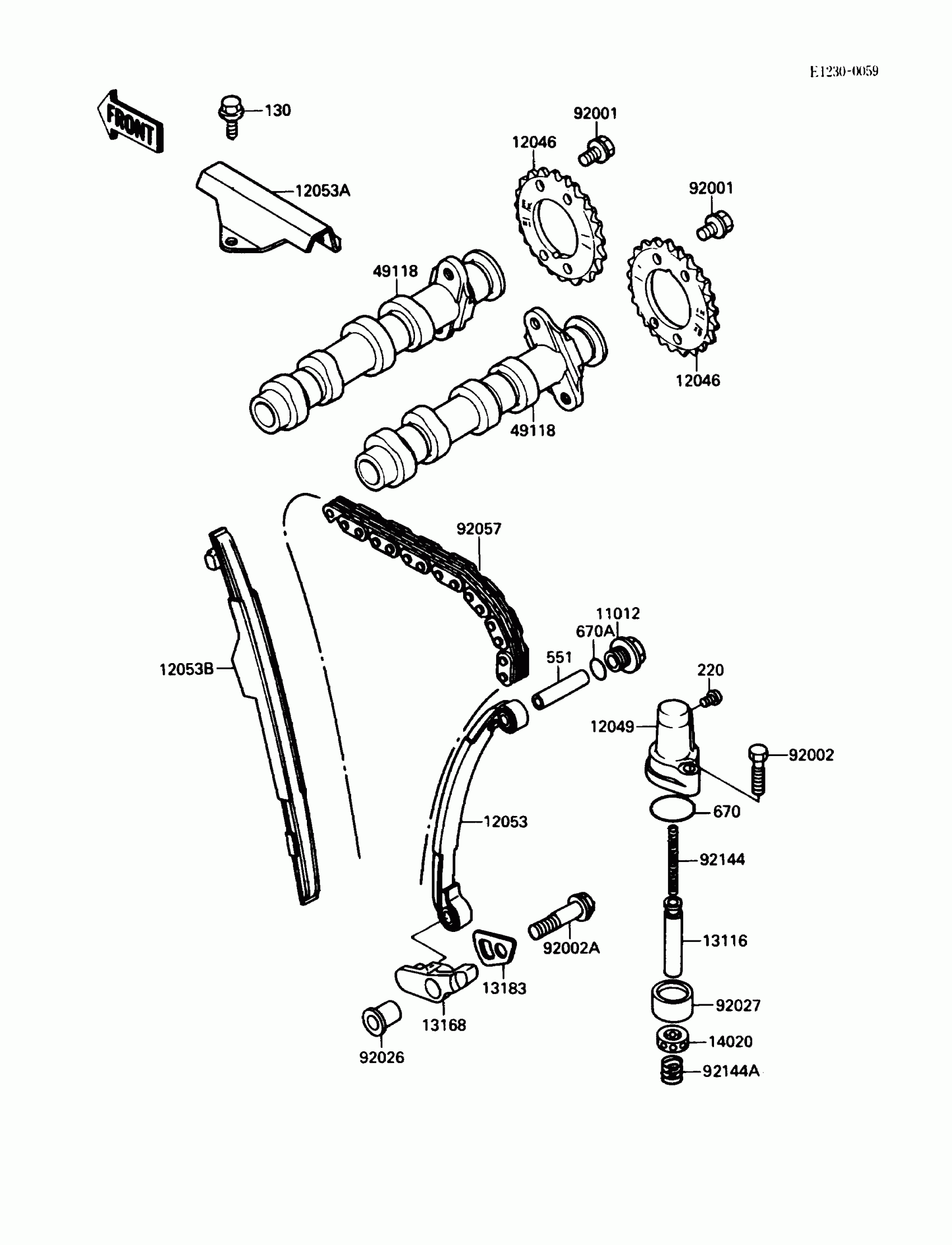

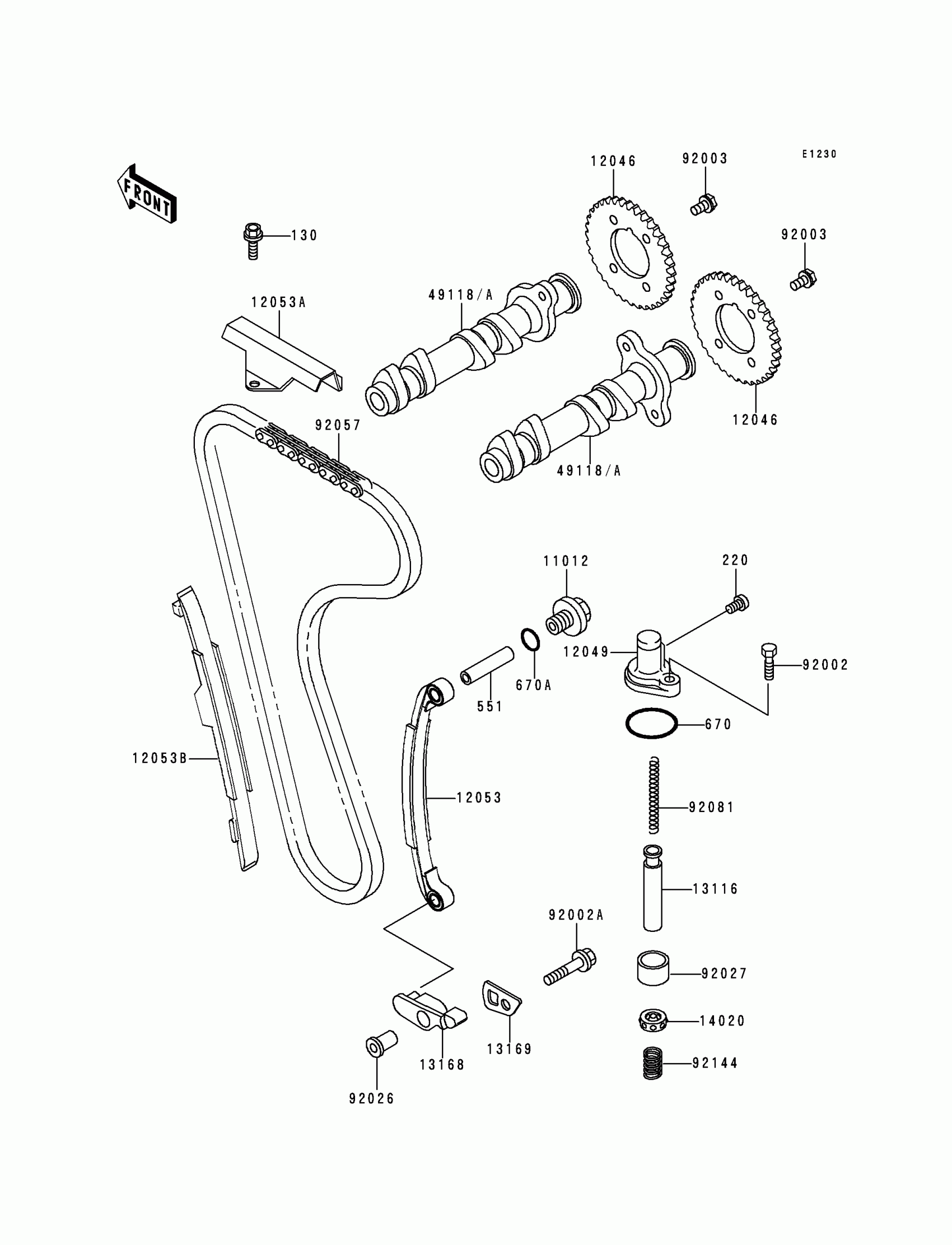

Kawasaki Ninja® 250R Camshaft(s)/Tensioner Diagram

Description

Price

11012

CAP,BOLT

11012-1677

Unavailable

12046

SPROCKET,CAMSHAFT,38T

12046-1085

$45.03

12049

TENSIONER

12049-1053

$35.06

12053

GUIDE-CHAIN,RR

12053-1191

Unavailable

12053A

GUIDE-CHAIN,UPP

12053-1192

$48.36

12053B

GUIDE-CHAIN,FR

12053-1205

$57.35

13116

ROD-PUSH,TENSIONER

13116-1138

$17.09

13168

LEVER,TENSIONER

13168-1313

$29.37

13183

PLATE,CHAIN GUIDE

13169-1661

$6.16

14020

RETAINER,TENSIONER

14020-1002

$17.55

49118

CAMSHAFT-COMP

49118-1055

$367.57

92001

BOLT,FLANGED,6X11

92003-208

$4.31

92002

BOLT,6X25

92002-1344

Unavailable

92002A

BOLT,8X35

92002-1824

$5.59

92026

SPACER

92026-1266

$9.05

92027

COLLAR,TENSIONER

92027-1240

$15.92

92057

CHAIN,CAM,82RH2010-124L

92057-1210

$98.80

92144

SPRING,TENSIONER

92081-1984

$6.87

92144A

SPRING,TENSIONER

92144-1059

Unavailable

130

BOLT-FLANGED,6X14

130P0614

Unavailable

220

SCREW-PAN-CROSS

220C0508

$0.55

551

PIN-DOWEL

551A0835

$4.69

670

O RING,21MM

670B2021

$4.69

670A

O RING,14MM

670D2014

$5.52
