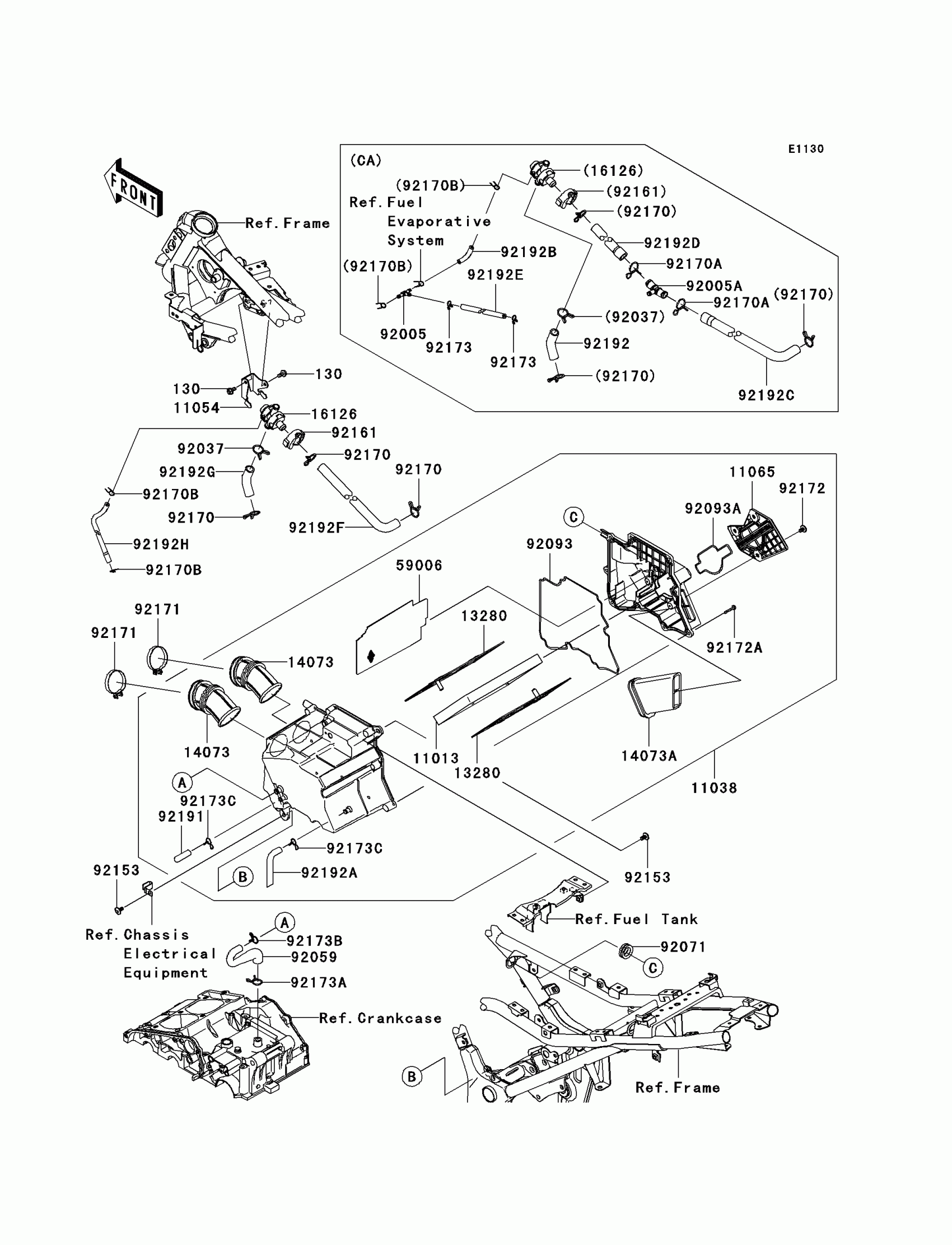

Kawasaki NINJA® 250R Air Cleaner Diagram

#

Description
Price

11013

ELEMENT-AIR FILTER

11013-0020

$13.06

11038

CASE-ASSY-AIR FILTER

11038-0030

$290.03

11054

BRACKET

11054-1785

$18.13

11065

CAP

11065-0185

$33.67

13280

HOLDER,ELEMENT

13280-0226

$26.91

14073

DUCT,CARBURETOR

14073-0146

$33.67

14073A

DUCT,INTAKE

14073-0147

$40.01

16126

VALVE,AIR CUT

16126-0055

$92.88

59006

ARRESTER-FLAME

59006-0014

$46.35

92037

CLAMP

92037-1593

$6.21

92059

TUBE,BREAHER

92059-1676

$17.78

92071

GROMMET

92071-1047

$5.83

92093

SEAL,CASE-AIR FILTER

92093-0078

$15.06

92093A

SEAL,CAP

92093-0144

$8.37

92153

BOLT,SOCKET,6X12

92153-1948

$1.78

92161

DAMPER

92161-0482

$7.35

92170

CLAMP

92170-1017

$4.69

92170B

CLAMP

92170-1450

$6.34

92171

CLAMP

92171-1553

$11.91

92172

SCREW,6X10

92172-0005

$2.41

92172A

SCREW,TAPPING,5X25

92172-0296

$1.34

92173A

CLAMP,20MM

92173-0190

$5.33

92173B

CLAMP,14MM

92173-0192

$3.74

92173C

CLAMP,11.6MM

92173-0198

$7.24

92191

TUBE,8X12X40

92191-1795

$4.61

92192A

TUBE,8X12X120

92192-0446

$8.18

130

BOLT-FLANGED,6X12

130BB0612

$2.34

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING

92005-1373

$9.11

92170A

CLAMP,TUBE

92170-1445

$4.92

92173

CLAMP

92173-0050

$6.61

92192

TUBE,ASV-HEAD

92192-0425

$9.97

92192B

TUBE,ASV-FITTING

92192-0469

$4.87

92192C

TUBE,A/C-FITTING

92192-0470

$88.60

92192D

TUBE,ASV-FITTING

92192-0471

$10.23

92192E

TUBE,CARB.FITTING

92192-0710

$8.51

92192F

TUBE,ACV-AIR FILTER

92192-0899

$26.65

92192G

TUBE,ACV-HEAD

92192-0900

$9.06

92192H

TUBE,ACV-CARB.

92192-0901

$10.30
