2025 Kawasaki Ninja 1100SX Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

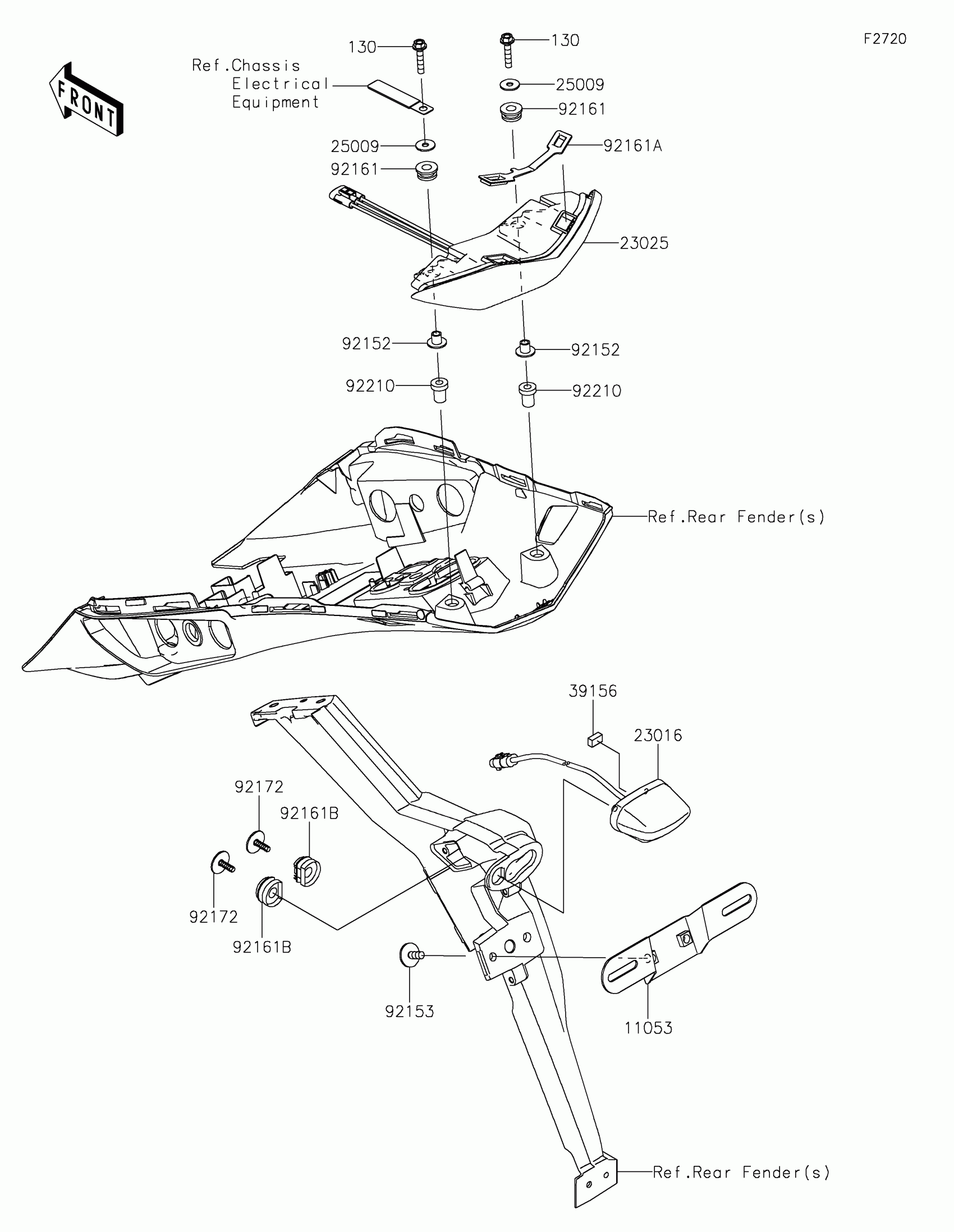

2025 Kawasaki Ninja 1100SX Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,LICENSE

11053-0400

1

$13.08

In stock

23016

1

$67.09

In stock

23025

LAMP-TAIL

23025-0348

1

$164.05

In stock

25009

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

39156

PAD,7X12X5

39156-2292

1
Out of stock

92152

COLLAR

92152-0092

1

$5.24

In stock

92153

BOLT,6X16

92153-1423

1
Out of stock

92161

DAMPER

92161-0317

1

$2.71

In stock

92161A

DAMPER,TAIL LAMP

92161-0808

1

$4.20

In stock

92161B

DAMPER

92161-2128

1
Out of stock

92172

SCREW,TAPTITE,5X16

92172-0481

1

$2.58

In stock

92210

NUT,5MM

92210-0001

1
Out of stock

130

BOLT-FLANGED,5X25

130BA0525

1

$0.66

In stock
