2025 Kawasaki Ninja 1100SX Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

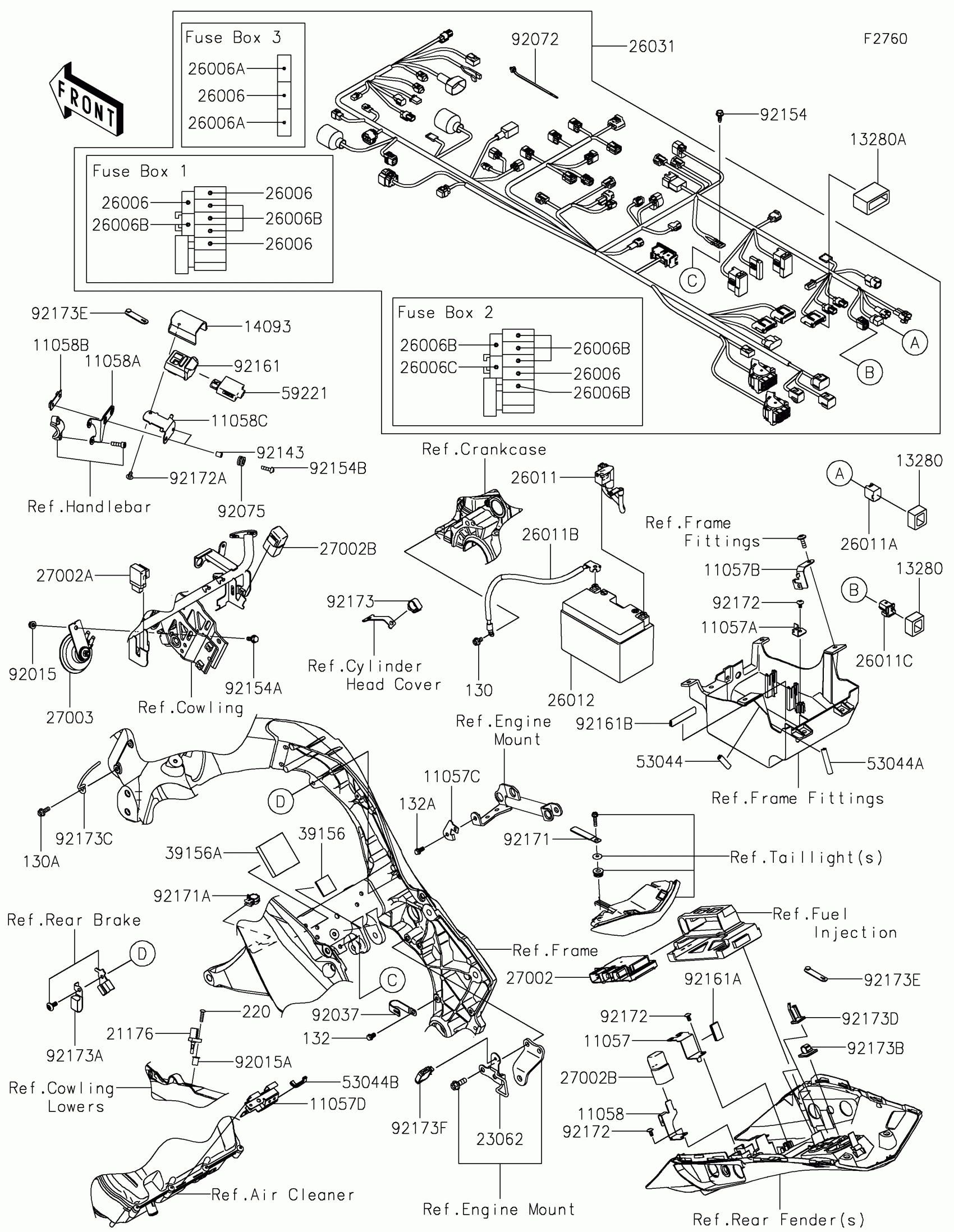

2025 Kawasaki Ninja 1100SX Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RR SIGNAL LAMP

11057-2891

1
Out of stock

11057A

BRACKET,BATTERY(+)

11057-2892

1
Out of stock

11057B

BRACKET,FUEL PUMP

11057-2893

1
Out of stock

11057C

BRACKET,QUICK-SHIFTER CONNECTO

11057-2907

1
Out of stock

11057D

BRACKET-COMP,O2 SENSOR

11057-7101

1
Out of stock

11058

BRACKET

11058-1400

1
Out of stock

11058A

BRACKET,CLUTCH LEVER

11058-1401

1
Out of stock

11058B

BRACKET,USB,RR

11058-1409

1
Out of stock

11058C

BRACKET,USB,FR

11058-2312

1
Out of stock

13280

HOLDER,DIAG CONNECTOR

13280-0959

1
Out of stock

13280A

HOLDER

13280-0994

1
Out of stock

14093

COVER,USB

14093-1458

1
Out of stock

21176

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

23062

BRACKET-COMP

23062-1502

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

1
Out of stock

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-0252

1
Out of stock

26011A

WIRE-LEAD,CONNECTOR COVER

26011-0275

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-0822

1
Out of stock

26011C

WIRE-LEAD,DIAG CONNECTOR

26011-1901

1
Out of stock

26012

BATTERY,YT12A-BS,12V

26012-1529

1
Out of stock

26031

HARNESS,MAIN

26031-4486

1
Out of stock

27002

RELAY-ASSY

27002-0061

1
Out of stock

27002A

RELAY-ASSY,SIGNAL LAMP

27002-0068

1
Out of stock

27002B

RELAY-ASSY

27002-1086

1
Out of stock

27003

HORN

27003-0126

1
Out of stock

39156

PAD,30X30X3

39156-1766

1
Out of stock

39156A

PAD,60X60X10

39156-2216

1
Out of stock

53044

TRIM,L=30

53044-0001

1
Out of stock

53044A

TRIM,L=40

53044-0012

1
Out of stock

53044B

TRIM,L=65

53044-0718

1
Out of stock

59221

CONNECTOR-CORD,USB TYPE-C

59221-0022

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92037

CLAMP,CABLE,STEEL SHEET

92037-2014

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92075

DAMPER

92075-1912

1
Out of stock

92143

COLLAR,5.6X8X9.3

92143-1984

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92154A

BOLT,FLANGED,6X16

92154-1851

1
Out of stock

92154B

BOLT,SOCKET,5X18

92154-2107

1
Out of stock

92161

DAMPER

92161-2497

1
Out of stock

92161A

DAMPER,30X30X2

92161-2654

1
Out of stock

92161B

DAMPER,60X20X2

92161-2655

1
Out of stock

92171

CLAMP,L=60

92171-0652

1
Out of stock

92171A

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92172A

SCREW,5X10

92172-1194

1
Out of stock

92173

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92173A

CLAMP,84MM

92173-1008

1
Out of stock

92173B

CLAMP,DRAIN

92173-1055

1
Out of stock

92173C

CLAMP,IRON WIRE

92173-1199

1
Out of stock

92173D

CLAMP,LOCKING WIRE SADDLE

92173-1269

1
Out of stock

92173E

CLAMP

92173-2198

1
Out of stock

92173F

CLAMP

92173-2951

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X16

130BB0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132BA0610

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132BA0612

1
Out of stock

220

SCREW-PAN-CROS,5X18

220AB0518

1
Out of stock
