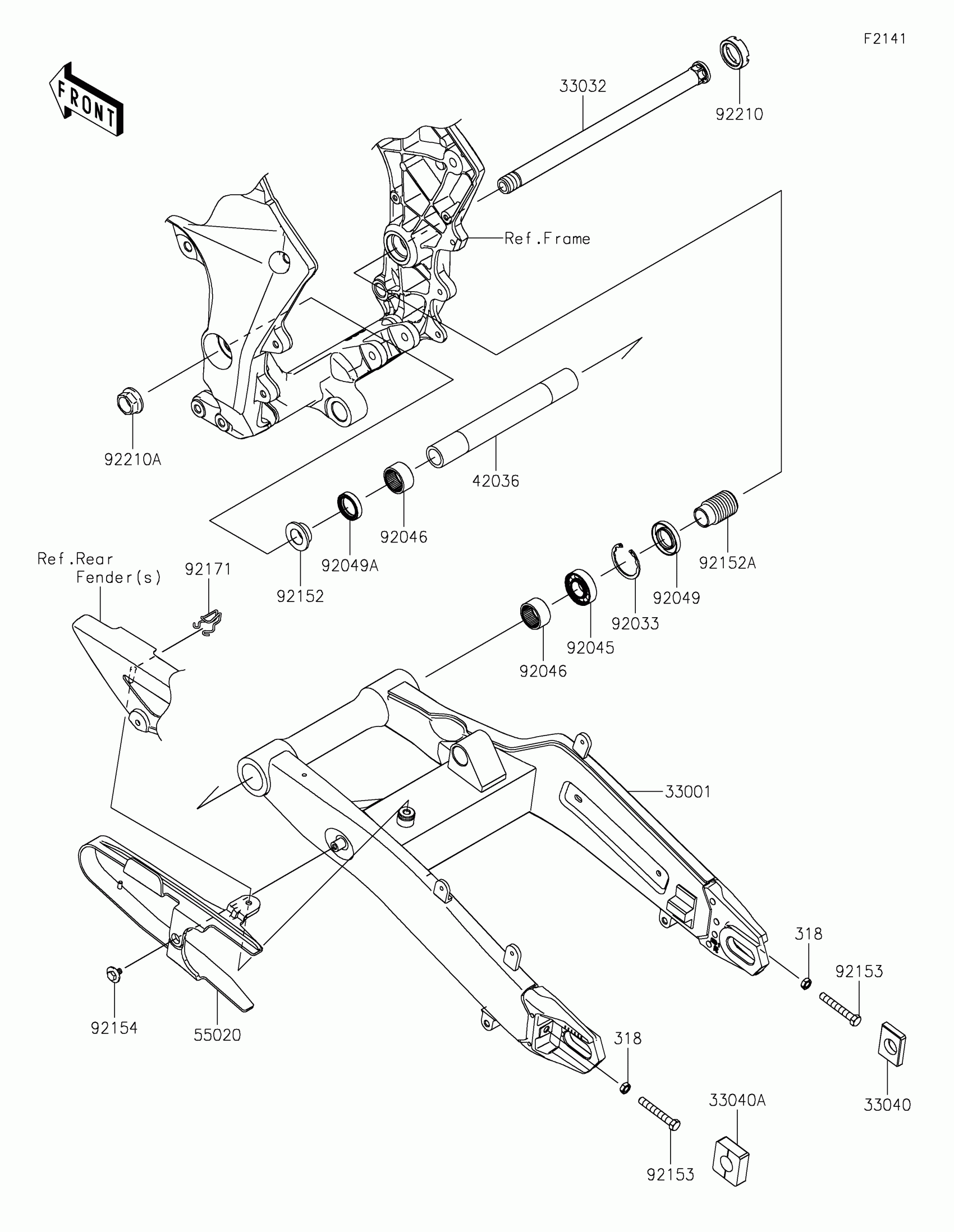

Find the part on the Swingarm diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja 1100SX Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING

33001-0764

1

$966.94

In stock

33032

SHAFT-SWING ARM

33032-0044

1

$106.56

In stock

33040

ADJUSTER-CHAIN,RH

33040-0040

1

$39.63

In stock

33040A

ADJUSTER-CHAIN,LH

33040-0110

1

$35.07

In stock

42036

SLEEVE,20.1X28X226

42036-0069

1

$73.05

In stock

55020

GUARD,CHAIN

55020-0903

1

$76.25

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92045

1

$11.39

In stock

92046

1

$19.97

In stock

92049

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

1
Out of stock

92152

1

$7.13

In stock

92152A

1

$37.85

In stock

92153

BOLT,8X55

92153-1407

1
Out of stock

92154

BOLT-UPSET-WP,6X12

92154-4179

1

$1.03

In stock

92171

CLAMP

92171-0907

1

$9.93

In stock

92210

NUT,30MM

92210-0134

1
Out of stock

92210A

NUT,FLANGED,20MM

92210-0320

1
Out of stock

318

NUT-HEX-SMALL,8MM

318AA0800

1

$0.63

In stock
