2025 Kawasaki Ninja 1100SX Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

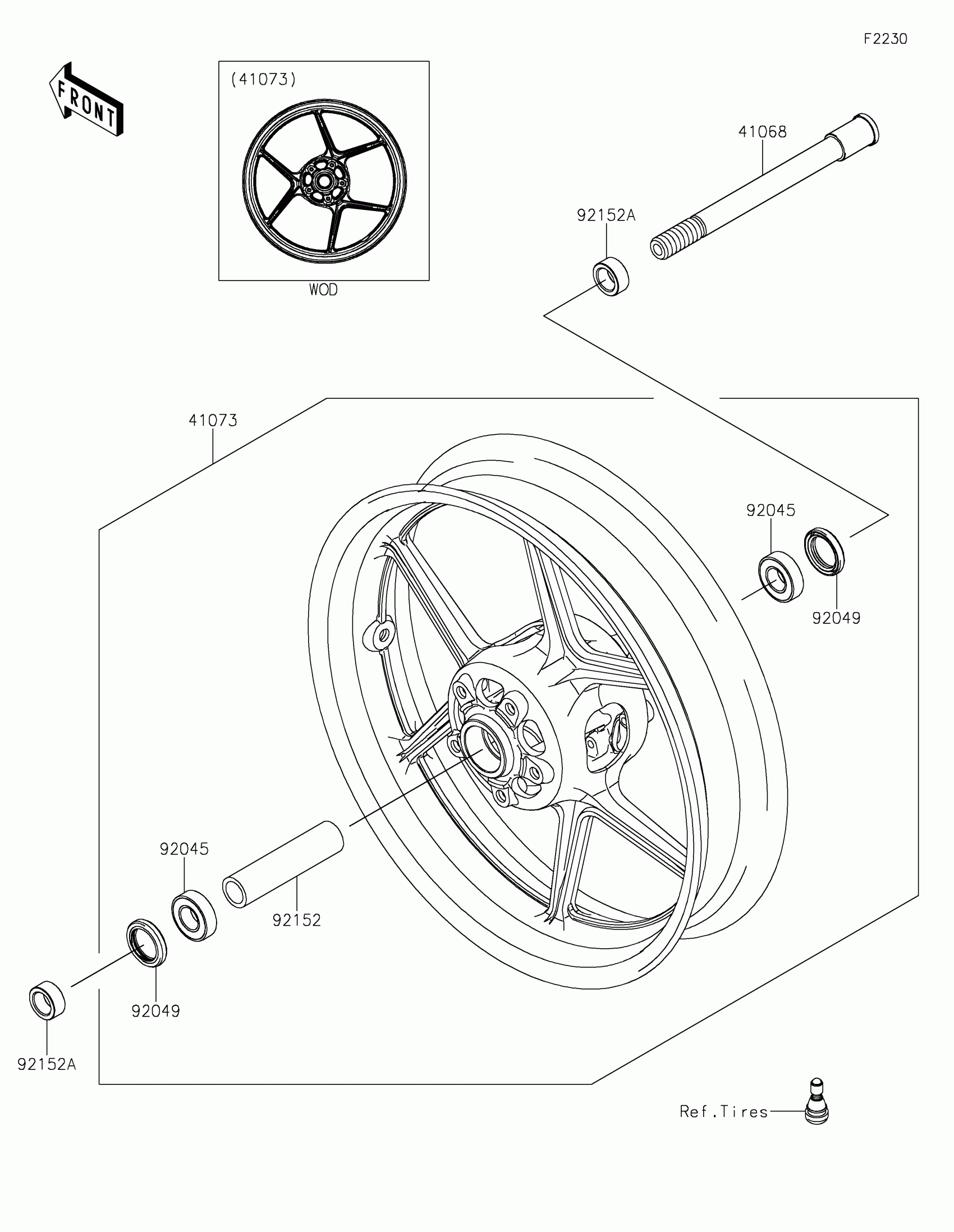

2025 Kawasaki Ninja 1100SX Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,FR,20X209

41068-0616

1

$83.41

In stock

41073

WHEEL-ASSY,FR,G.BLACK

41073-0724-18F

1

$995.49

In stock

92045

1

$12.55

In stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92152

COLLAR,FR HUB,L=115

92152-0087

1

$40.82

In stock

92152A

COLLAR,20X30X13

92152-1739

1
Out of stock
