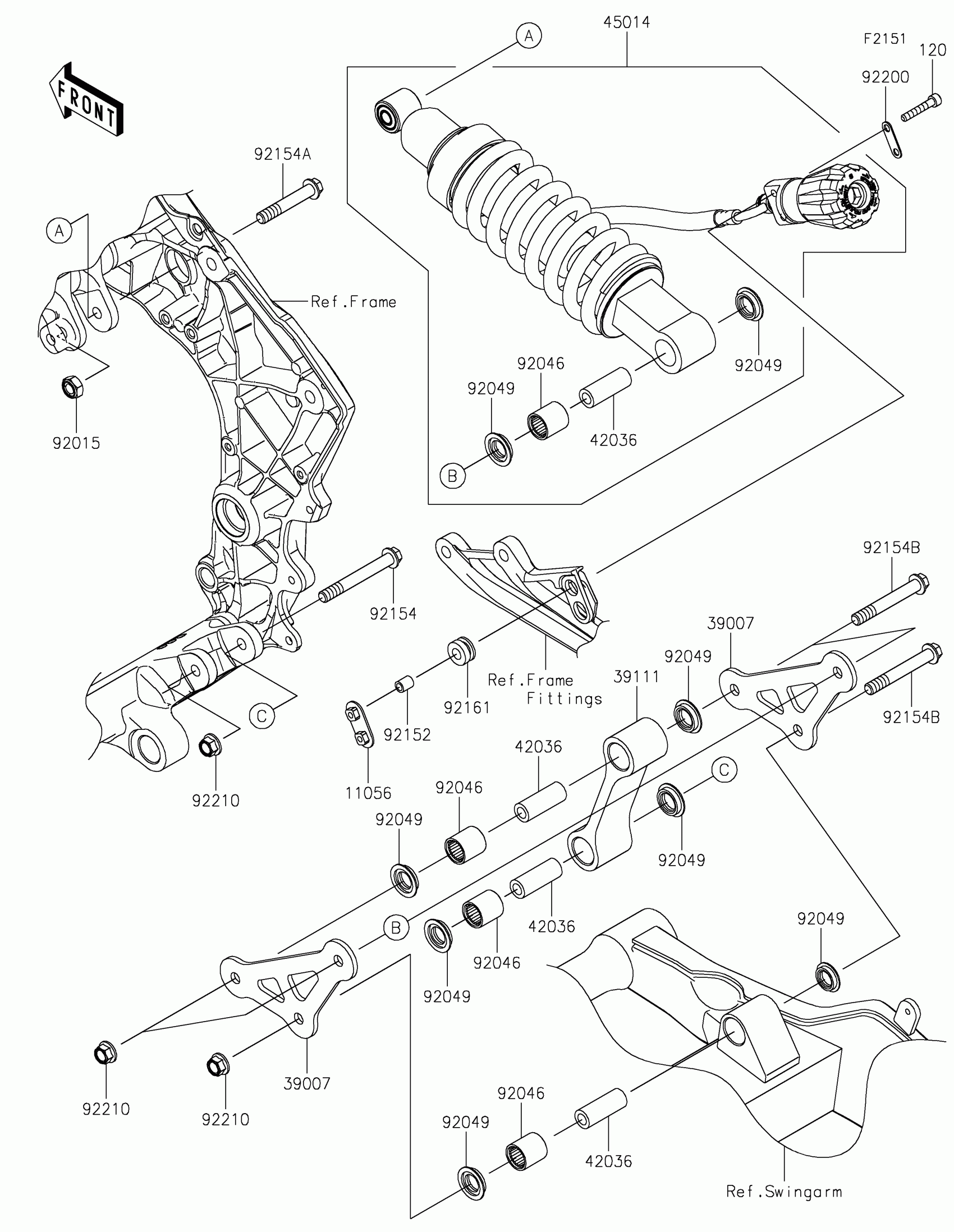

Kawasaki Ninja 1100SX Suspension/Shock Absorber Diagram

Description

Price

11056

BRACKET

11056-1914

$5.65

39007

ARM-SUSP,P.SILVER

39007-0405-458

$30.50

39111

ROD-TIE,SUSPENSION

39111-0414

$47.28

42036

SLEEVE,10.1X17X44.5

42036-1342

$11.28

45014

SHOCKABSORBER,SPG SIL+BODY BLK

45014-0592-37R

$1,258.89

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92152

COLLAR,6.4X10X12

92152-1628

$7.98

92154

BOLT,FLANGED,10X77

92154-0262

$5.59

92154A

BOLT,FLANGED,10X60

92154-0263

$5.29

92154B

BOLT,FLANGED,10X67

92154-0264

$5.29

92161

DAMPER

92161-2540

$4.42

92200

WASHER

92200-2307

$2.80

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

120

BOLT-SOCKET,6X35

120CC0635

$2.32
