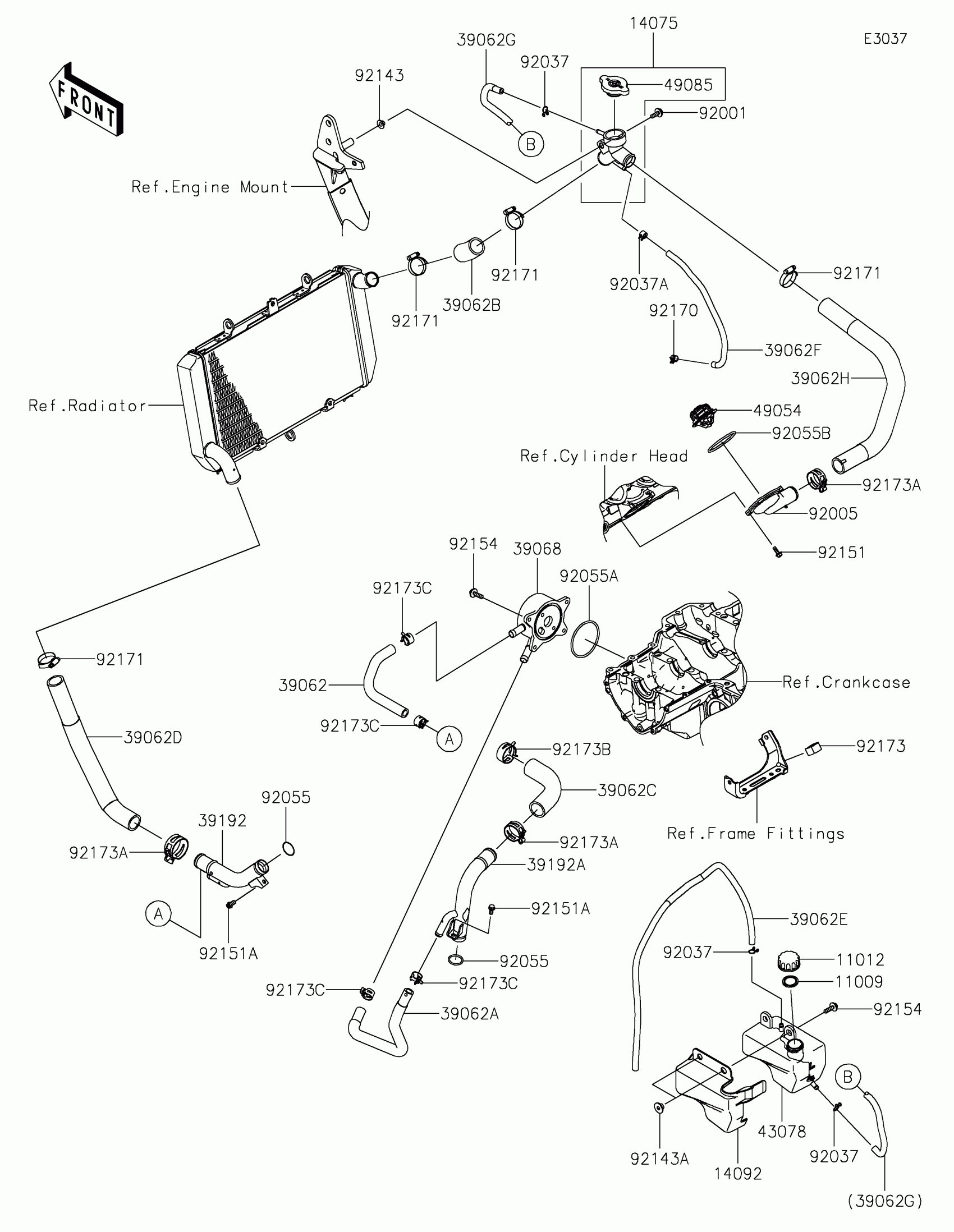

Find the part on the Water Pipe diagram for your 2025 Kawasaki Ninja 1100SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja 1100SX Se Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

14075

CAP-ASSY

14075-0028

1
Out of stock

14092

COVER,RESERVOIR

14092-1098

1
Out of stock

39062

HOSE-COOLING,PIPE-OIL COOLER

39062-0308

1
Out of stock

39062A

HOSE-COOLING,PIPE-OIL COOLER

39062-0309

1
Out of stock

39062B

HOSE-COOLING,CAP-RAD.

39062-0727

1
Out of stock

39062C

HOSE-COOLING,PIPE-CYLINDER

39062-0757

1
Out of stock

39062D

HOSE-COOLING,RAD.-PIPE

39062-0768

1
Out of stock

39062E

HOSE-COOLING,OVERFLOW

39062-0860

1
Out of stock

39062F

HOSE-COOLING,AIR BLEED

39062-0909

1
Out of stock

39062G

HOSE-COOLING,RETURN

39062-0920

1
Out of stock

39062H

HOSE-COOLING,HEAD-CAP

39062-1950

1
Out of stock

39068

COOLER-ASSY-OIL

39068-0704

1
Out of stock

39192

PIPE-WATER,RADIATOR-WATER PUMP

39192-0619

1
Out of stock

39192A

PIPE-WATER,WATER PUMP-CYLINDER

39192-0620

1
Out of stock

43078

RESERVOIR

43078-0566

1
Out of stock

49054

THERMOSTAT

49054-0004

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1066

1
Out of stock

92001

BOLT,6X18

92001-1342

1
Out of stock

92005

FITTING,THERMO CAP

92005-0842

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92037A

CLAMP,TUBE

92037-1505

1
Out of stock

92055

RING-O,20.8X2.4

92055-0114

1
Out of stock

92055A

RING-O,63.3MM

92055-0739

1
Out of stock

92055B

RING-O,53.5X2.6

92055-0831

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92143A

COLLAR

92143-1962

1
Out of stock

92151

BOLT,5X14

92151-1764

1
Out of stock

92151A

BOLT,6X12

92151-1997

1
Out of stock

92154

BOLT,FLANGED,6X22

92154-0403

1
Out of stock

92170

CLAMP

92170-1493

1
Out of stock

92171

CLAMP

92171-0179

1
Out of stock

92173

CLAMP,CLIP

92173-0127

1
Out of stock

92173A

CLAMP,34MM

92173-1360

1
Out of stock

92173B

CLAMP,35.5MM

92173-1432

1
Out of stock

92173C

CLAMP

92173-1552

1
Out of stock
