- Ninja 1100SX SE
Rear Master Cylinder

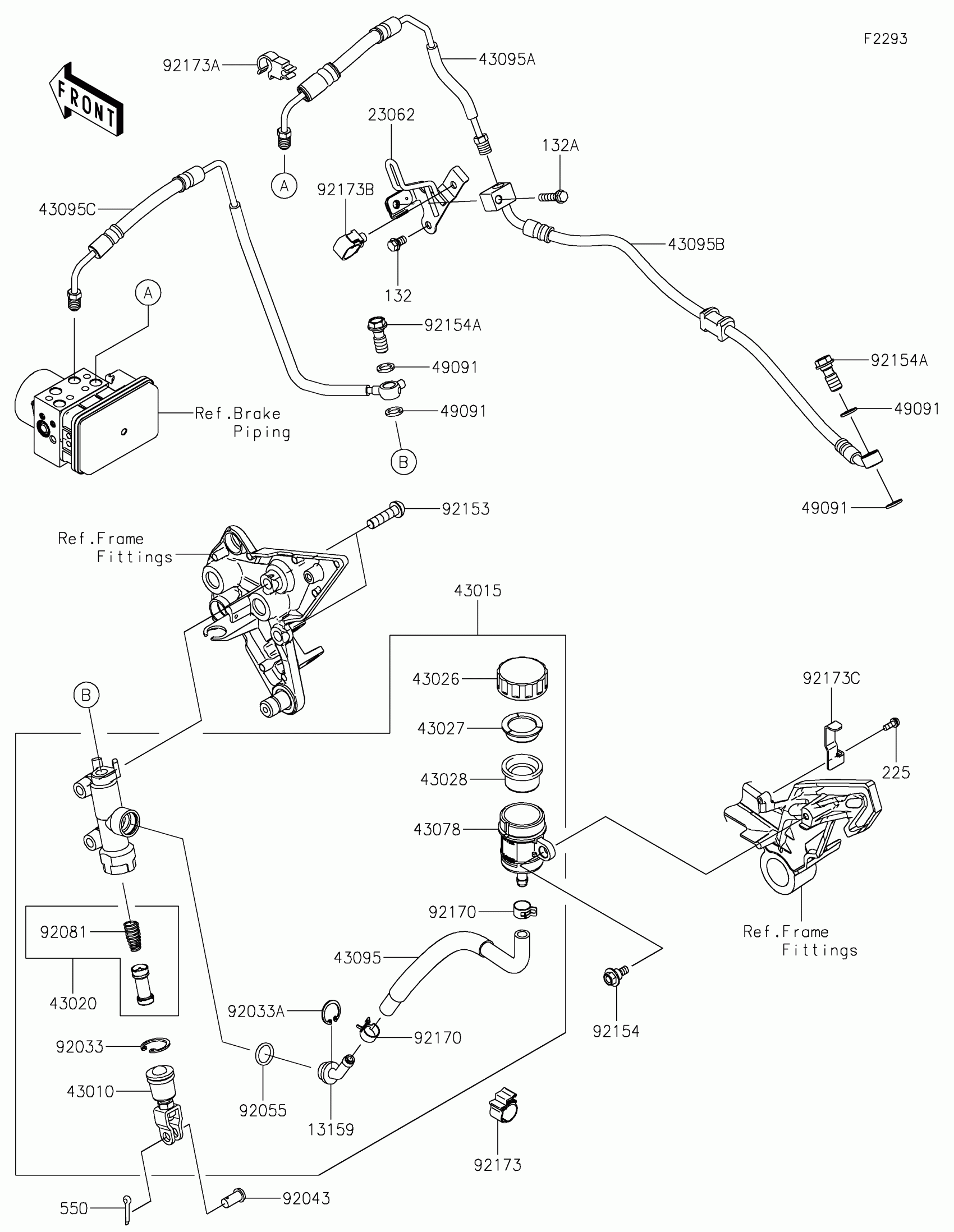

Kawasaki Ninja 1100SX SE Rear Master Cylinder Diagram
#
Description
Price
13159
CONNECTOR
13159-0008
$11.02
23062
BRACKET-COMP
23062-1299
$21.61
43010
ROD-ASSY-BRAKE
43010-1062
$51.24
43015
CYLINDER-ASSY-MASTER,RR
43015-0596
$410.95
43020
PISTON-COMP-BRAKE
43020-1057
$65.22
43026
CAP-BRAKE
43026-0009
$37.51
43027
PLATE-DIAPHRAGM
43027-1053
$5.67
43028
DIAPHRAGM
43028-1065
$19.09
43078
RESERVOIR
43078-0060
$32.45
43095
HOSE-BRAKE,RR M/C
43095-0811
$32.04
43095A
HOSE-BRAKE,RR,ABS UNIT
43095-2009
$201.48
43095B
HOSE-BRAKE,RR CALIPER
43095-2011
$111.97
43095C
HOSE-BRAKE,RR M/C-ABS UNIT
43095-2032
$201.48
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92043
PIN
92043-0904
$3.90
92055
RING-O,14.8X2.4
92055-0741
$3.71
92081
SPRING,MASTER CYLINDER
92081-1737
$12.23
92153
BOLT,SOCKET,8X30
92153-0393
$3.73
92154
BOLT,FLANGED,6X16
92154-0385
$3.99
92154A
BOLT,BANJO,10X23
92154-1712
$3.94
92170
CLAMP,HOSE
92170-1091
$5.00
92173
CLAMP,CLIP
92173-0127
$15.62
92173A
CLAMP
92173-0170
$4.41
92173B
CLAMP,HOLDER CLIP
92173-0868
$3.02
92173C
CLAMP
92173-1694
$7.24
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
132A
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
225
SCREW-PAN-WSP-CROS,4X12
225AB0412
$2.94
550
PIN-COTTER,2.0X15
550AA2015
$1.12
