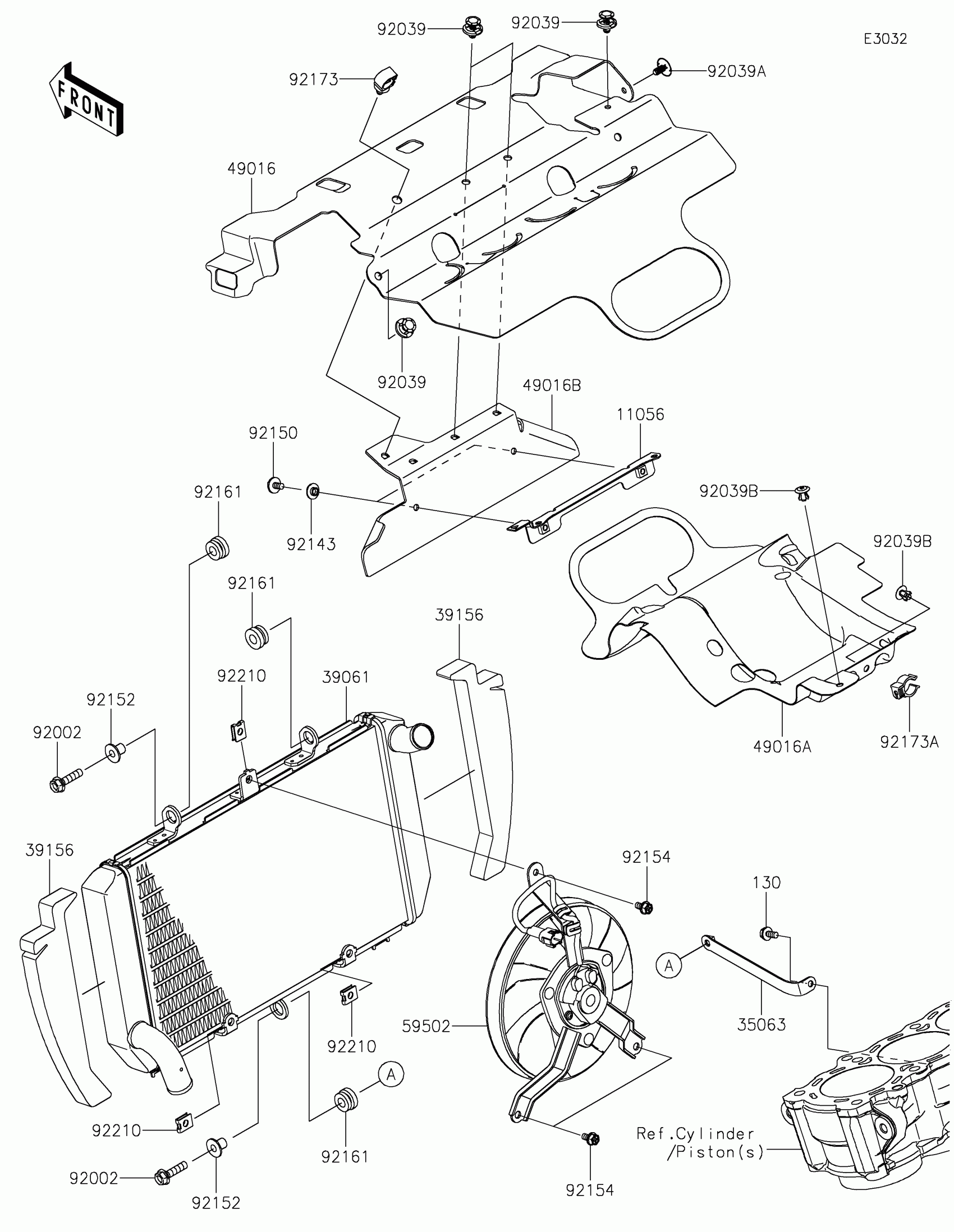

Kawasaki Ninja 1100SX SE Radiator Diagram

Description

Price

11056

BRACKET

11056-0230

$10.60

35063

STAY

35063-0761

$6.77

39061

RADIATOR-ASSY

39061-0852

$828.85

39156

PAD,RADIATOR

39156-2522

$41.50

49016

COVER-SEAL

49016-0691

$66.72

49016A

COVER-SEAL

49016-0712

$50.22

49016B

COVER-SEAL

49016-0715

$23.27

59502

FAN-ASSY

59502-0647

$763.11

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92039A

RIVET

92039-0027

$3.90

92039B

RIVET

92039-0730

$2.49

92143

COLLAR

92143-1087

$4.31

92150

BOLT,6X12

92150-1891

$3.92

92152

COLLAR

92152-0667

$7.37

92154

BOLT

92154-1429

$4.18

92161

DAMPER

92161-2139

$2.70

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-1240

$2.49

92210

NUT

92210-1323

$4.18

130

BOLT-FLANGED,6X16

130CC0616

$1.94
