Fuel Tank

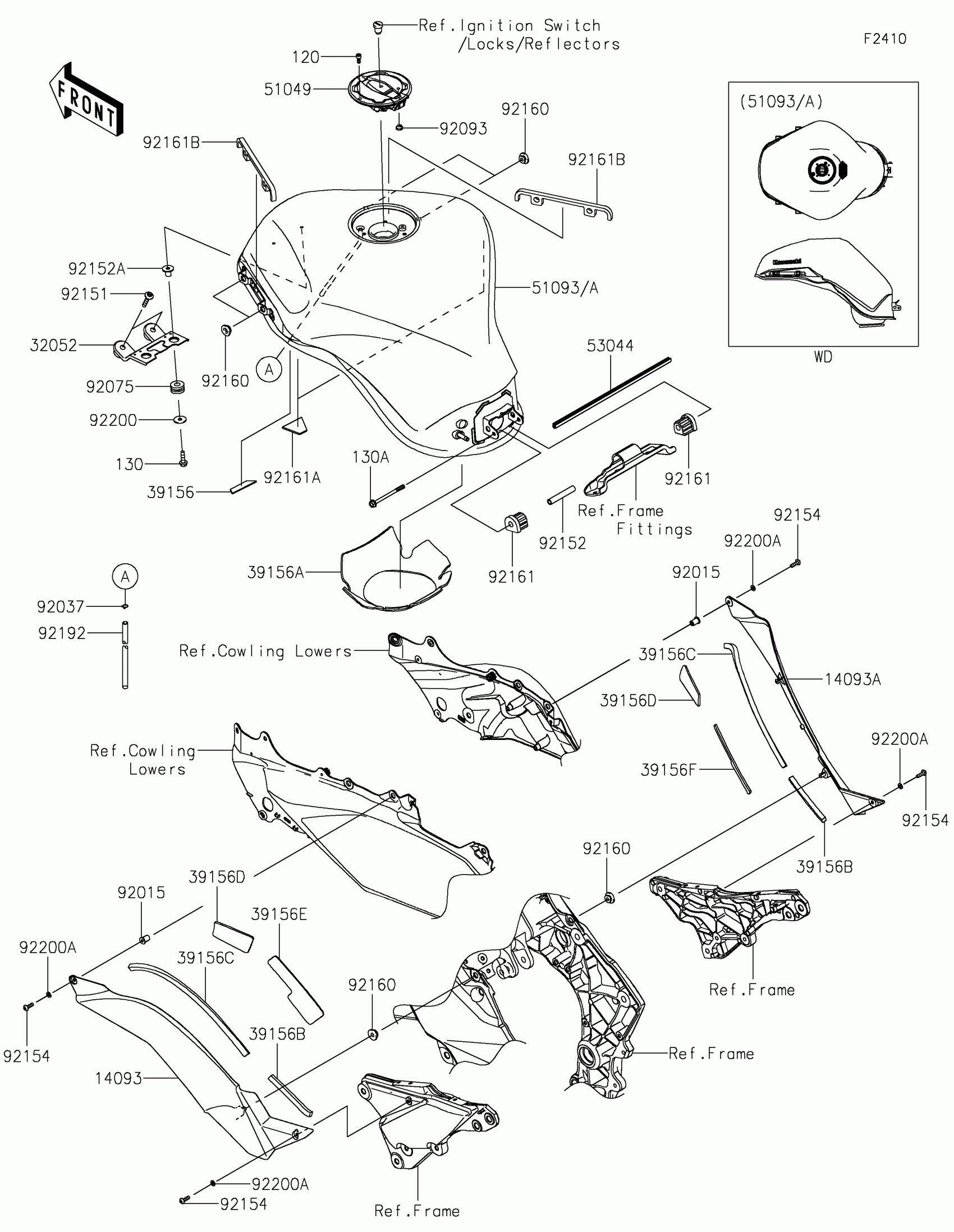

Kawasaki Ninja 1100SX SE Fuel Tank Diagram
#
Description
Price
14093
COVER,KNEE GRIP,LH
14093-0529
$48.88
14093A
COVER,KNEE GRIP,RH
14093-0530
$48.88
32052
BRACKET-TANK,F.S.BLACK
32052-0783-18R
$49.33
39156
PAD,DRAIN TUBE
39156-1770
$1.84
39156A
PAD,FUEL PUMP
39156-1781
$51.83
39156B
PAD,8X100X5
39156-2150
$2.39
39156C
PAD,8X280X10
39156-2151
$5.54
39156D
PAD,35X70X3
39156-2600
$6.81
39156E
PAD,RR,LH
39156-2601
$9.50
39156F
PAD,RR,RH
39156-2602
$9.50
51049
CAP-TANK,FUEL
51049-0756
$136.31
51093
TANK-COMP-FUEL,M.D.BLACK
51093-5381-17K
$960.35
51093A
TANK-COMP-FUEL,E.B.GREEN
51093-5383-60R
$960.35
53044
TRIM
53044-1296
$11.99
92015
NUT,WELL,5MM
92015-1757
$7.29
92037
CLAMP,TUBE
92037-010
$3.92
92075
DAMPER,10X24X12
92075-1690
$5.00
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92151
BOLT,SOCKET,6X30
92151-1605
$2.34
92152
COLLAR,6.8X10X60
92152-1182
$4.83
92152A
COLLAR,6.3X9.5X14.1
92152-1847
$6.52
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92160
DAMPER
92160-1613
$3.74
92161
DAMPER,FUEL TANK,RR
92161-1330
$6.18
92161A
DAMPER,30X48X3
92161-1768
$5.25
92161B
DAMPER
92161-1943
$5.88
92192
TUBE,6X9X926(30)
92192-1024
$24.04
92200
WASHER,6.5X22X1.6
92200-1087
$3.94
92200A
WASHER,5.2X10X1.0
92200-1820
$0.63
120
BOLT-SOCKET,5X12
120CA0512
$1.57
130
BOLT-FLANGED,6X22
130BA0622
$1.29
130A
BOLT-FLANGED,6X70
130BB0670
$5.93
