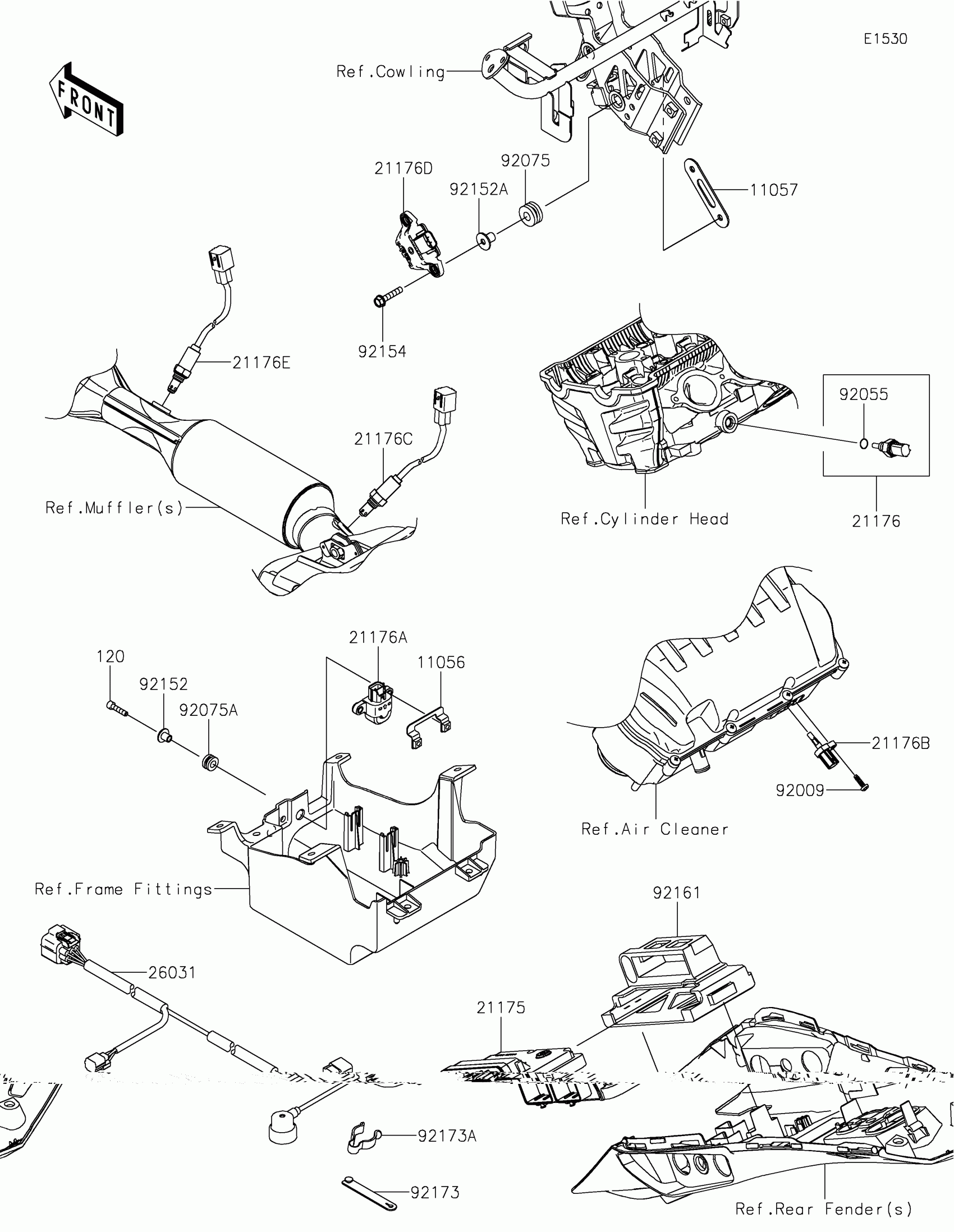

Kawasaki Ninja 1100SX SE Fuel Injection Diagram

Description

Price

11056

BRACKET

11056-0124

$7.24

11057

BRACKET,SENSOR

11057-0381

$4.85

21175

CONTROL UNIT-ELECTRONIC

21175-2218

$1,175.34

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176C

SENSOR,OXYGEN

21176-0932

$235.01

21176D

SENSOR,GYRO

21176-1126

$736.46

21176E

SENSOR,OXYGEN

21176-1205

$228.41

26031

HARNESS,SUB

26031-4167

$67.15

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92055

RING-O,9.5X1.9

92055-0016

$8.89

92075

DAMPER,10X24X12

92075-1690

$5.00

92075A

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-0134

$7.65

92152A

COLLAR,6.3X9.5X14.1

92152-1847

$6.52

92154

BOLT,FLANGED,6X30

92154-1857

$2.15

92161

DAMPER,ECU

92161-2261

$39.93

92173

CLAMP

92173-2194

$1.83

92173A

CLAMP

92173-2419

$10.92

120

BOLT-SOCKET,5X25

120CA0525

$4.71
