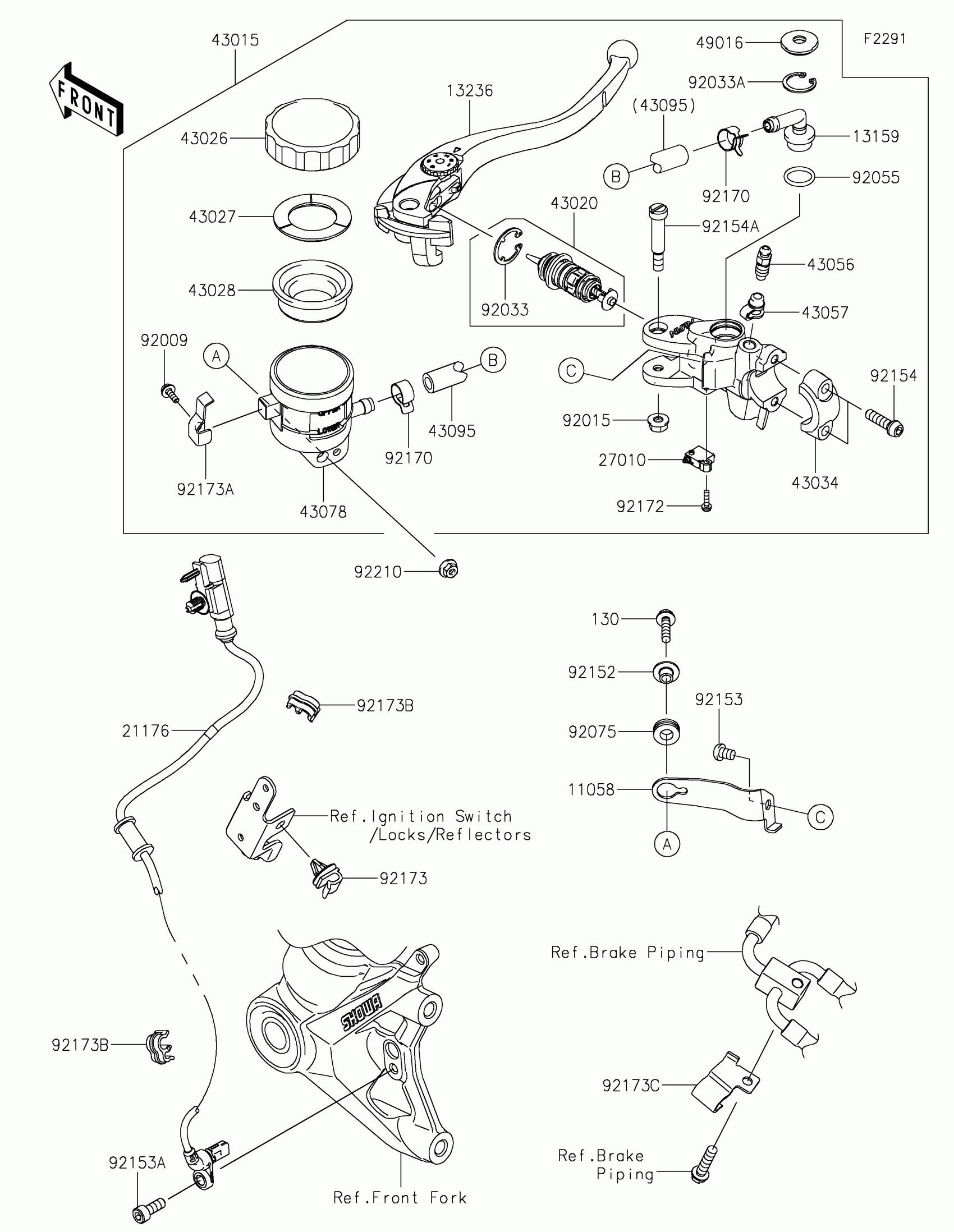

Kawasaki Ninja 1100SX SE Front Master Cylinder Diagram

#

Description
Price

11058

BRACKET,RESERVOIR

11058-1359

$7.30

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,FRONT BRAKE

13236-0882

$68.87

21176

SENSOR,FR WHEEL SPEED

21176-1213

$111.46

27010

SWITCH,BRAKE

27010-0915

$74.90

43015

CYLINDER-ASSY-MASTER,FR

43015-0855

$421.78

43020

PISTON-COMP-BRAKE

43020-0010

$65.94

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

$23.08

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43078

RESERVOIR

43078-0591

$30.88

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0366

$13.04

49016

COVER-SEAL

49016-1147

$6.29

92009

SCREW

92009-1570

$3.09

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92033

RING-SNAP

92033-0034

$4.55

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,14.8X2.4

92055-0741

$3.71

92075

DAMPER

92075-161

$4.69

92152

COLLAR

92152-0017

$2.80

92153

BOLT,6X8

92153-0578

$2.55

92153A

BOLT,SOCKET,6X16

92153-1344

$2.97

92154

BOLT,SOCKET,6X22

92154-1724

$2.49

92154A

BOLT,LEVER

92154-1912

$7.83

92170

CLAMP,HOSE

92170-1091

$5.00

92172

SCREW

92172-1243

$0.64

92173

CLAMP,CABLE CLIP

92173-1022

$1.63

92173A

CLAMP

92173-1790

$11.55

92173B

CLAMP

92173-2301

$1.36

92173C

CLAMP

92173-2732

$7.59

92210

NUT,FLANGED,5MM

92210-0007

$2.70

130

BOLT-FLANGED,5X20

130BB0520

$2.02
