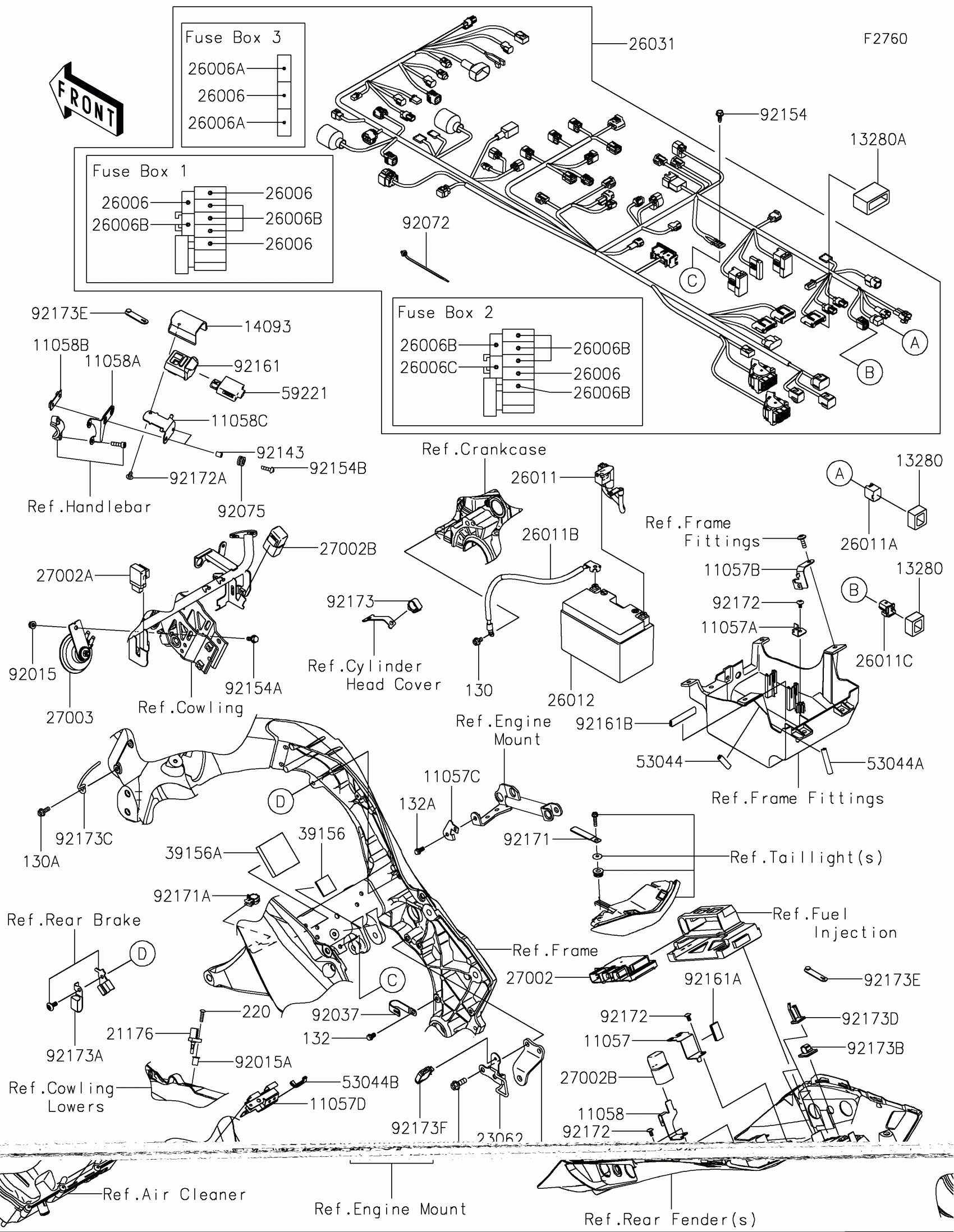

Kawasaki Ninja 1100SX SE Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,RR SIGNAL LAMP

11057-2891

$4.10

11057A

BRACKET,BATTERY(+)

11057-2892

$3.26

11057B

BRACKET,FUEL PUMP

11057-2893

$5.57

11057C

BRACKET,QUICK-SHIFTER CONNECTO

11057-2907

$2.80

11057D

BRACKET-COMP,O2 SENSOR

11057-7101

$16.01

11058

BRACKET

11058-1400

$5.47

11058A

BRACKET,CLUTCH LEVER

11058-1401

$13.19

11058B

BRACKET,USB,RR

11058-1409

$6.89

11058C

BRACKET,USB,FR

11058-2312

$8.89

13280

HOLDER,DIAG CONNECTOR

13280-0959

$2.08

13280A

HOLDER

13280-0994

$8.92

14093

COVER,USB

14093-1458

$5.46

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

23062

BRACKET-COMP

23062-1502

$19.56

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-0252

$43.53

26011A

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26011B

WIRE-LEAD,BATTERY(-)

26011-0822

$29.87

26011C

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$37.01

26012

BATTERY,YT12A-BS,12V

26012-1529

$174.88

26031

HARNESS,MAIN

26031-4488

$1,044.80

27002

RELAY-ASSY

27002-0061

$167.87

27002A

RELAY-ASSY,SIGNAL LAMP

27002-0068

$83.36

27002B

RELAY-ASSY

27002-1086

$36.91

27003

HORN

27003-0126

$70.00

39156

PAD,30X30X3

39156-1766

$1.27

39156A

PAD,60X60X10

39156-2216

$13.18

53044

TRIM,L=30

53044-0001

$2.80

53044A

TRIM,L=40

53044-0012

$2.97

53044B

TRIM,L=65

53044-0718

$4.76

59221

CONNECTOR-CORD,USB TYPE-C

59221-0022

$85.75

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,WELL,5MM

92015-1757

$7.29

92037

CLAMP,CABLE,STEEL SHEET

92037-2014

$1.97

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92075

DAMPER

92075-1912

$5.77

92143

COLLAR,5.6X8X9.3

92143-1984

$4.13

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92154A

BOLT,FLANGED,6X16

92154-1851

$2.15

92154B

BOLT,SOCKET,5X18

92154-2107

$2.12

92161

DAMPER

92161-2497

$9.93

92161A

DAMPER,30X30X2

92161-2654

$1.16

92161B

DAMPER,60X20X2

92161-2655

$2.13

92171

CLAMP,L=60

92171-0652

$2.61

92171A

CLAMP,EDGE CLIP

92171-1722

$8.05

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,5X10

92172-1194

$1.34

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173A

CLAMP,84MM

92173-1008

$5.33

92173B

CLAMP,DRAIN

92173-1055

$6.34

92173C

CLAMP,IRON WIRE

92173-1199

$5.98

92173D

CLAMP,LOCKING WIRE SADDLE

92173-1269

$4.92

92173E

CLAMP

92173-2198

$1.48

92173F

CLAMP

92173-2951

$1.50

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X16

130BB0616

$2.06

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

220

SCREW-PAN-CROS,5X18

220AB0518

$3.69
