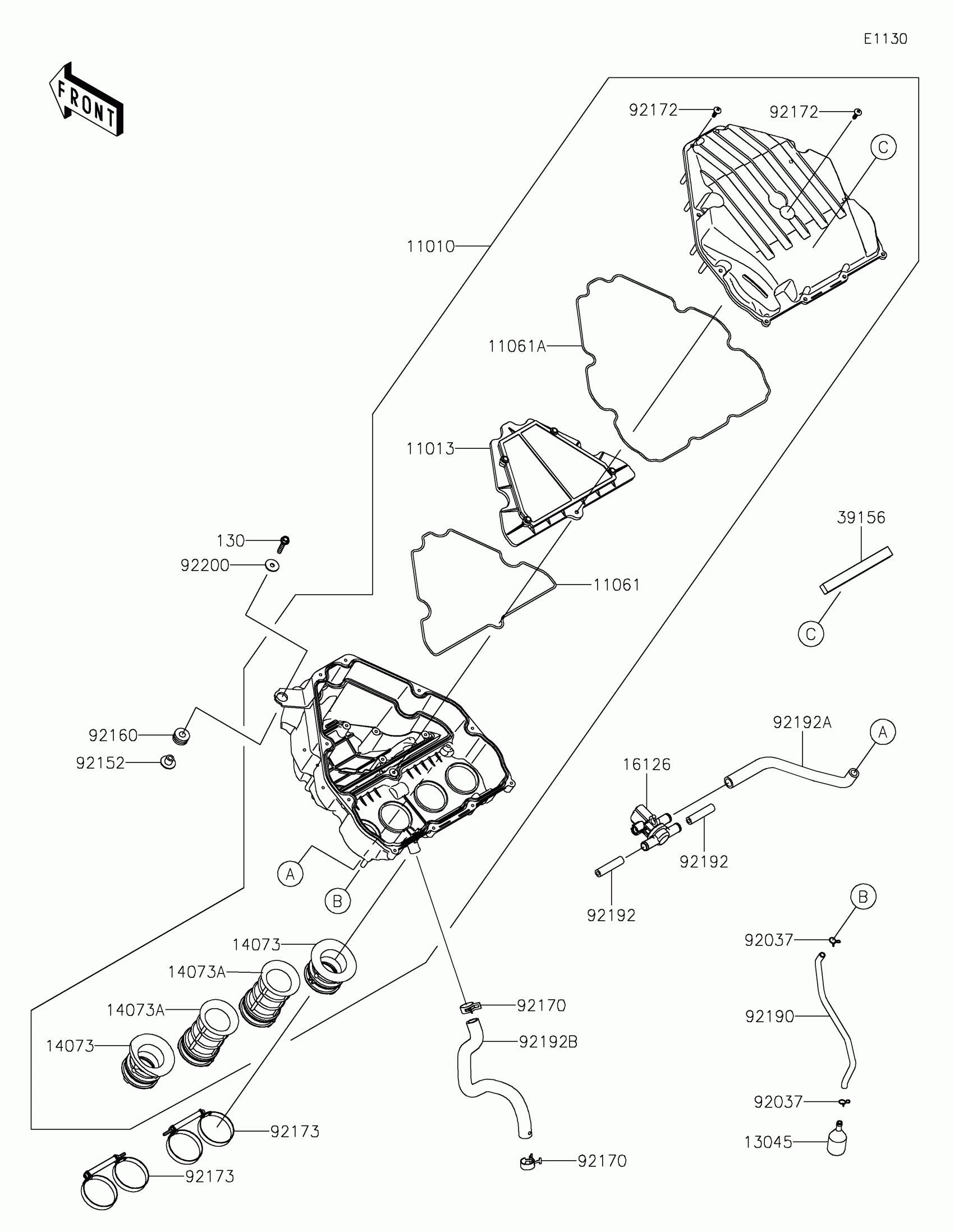

Kawasaki Ninja 1100SX SE Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-1836

$321.02

11013

ELEMENT-AIR FILTER

11013-0712

$46.45

11061

GASKET,ELEMENT

11061-0405

$6.89

11061A

GASKET,CASE

11061-0406

$9.50

13045

RECEIVER-OIL

13045-1057

$9.82

14073

DUCT,AIR FILTER

14073-1926

$48.02

14073A

DUCT,AIR FILTER

14073-1927

$50.96

16126

VALVE,AIR SWITCHING

16126-0745

$189.89

39156

PAD,15X145X10

39156-2569

$6.02

92037

CLAMP

92037-1712

$5.00

92152

COLLAR,6.5X10.5X13.1

92152-0547

$5.65

92160

DAMPER

92160-1162

$5.00

92170

CLAMP

92170-1060

$8.10

92172

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP

92173-2298

$23.10

92190

TUBE,6X9X300

92190-1253

$5.54

92192

TUBE,HEAD ASV

92192-0843

$2.76

92192A

TUBE,ASWV-A/C

92192-2710

$17.37

92192B

TUBE,BLOWBY,ZX1200K

92192-2711

$21.71

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

130

BOLT-FLANGED,6X30

130BB0630

$4.43
