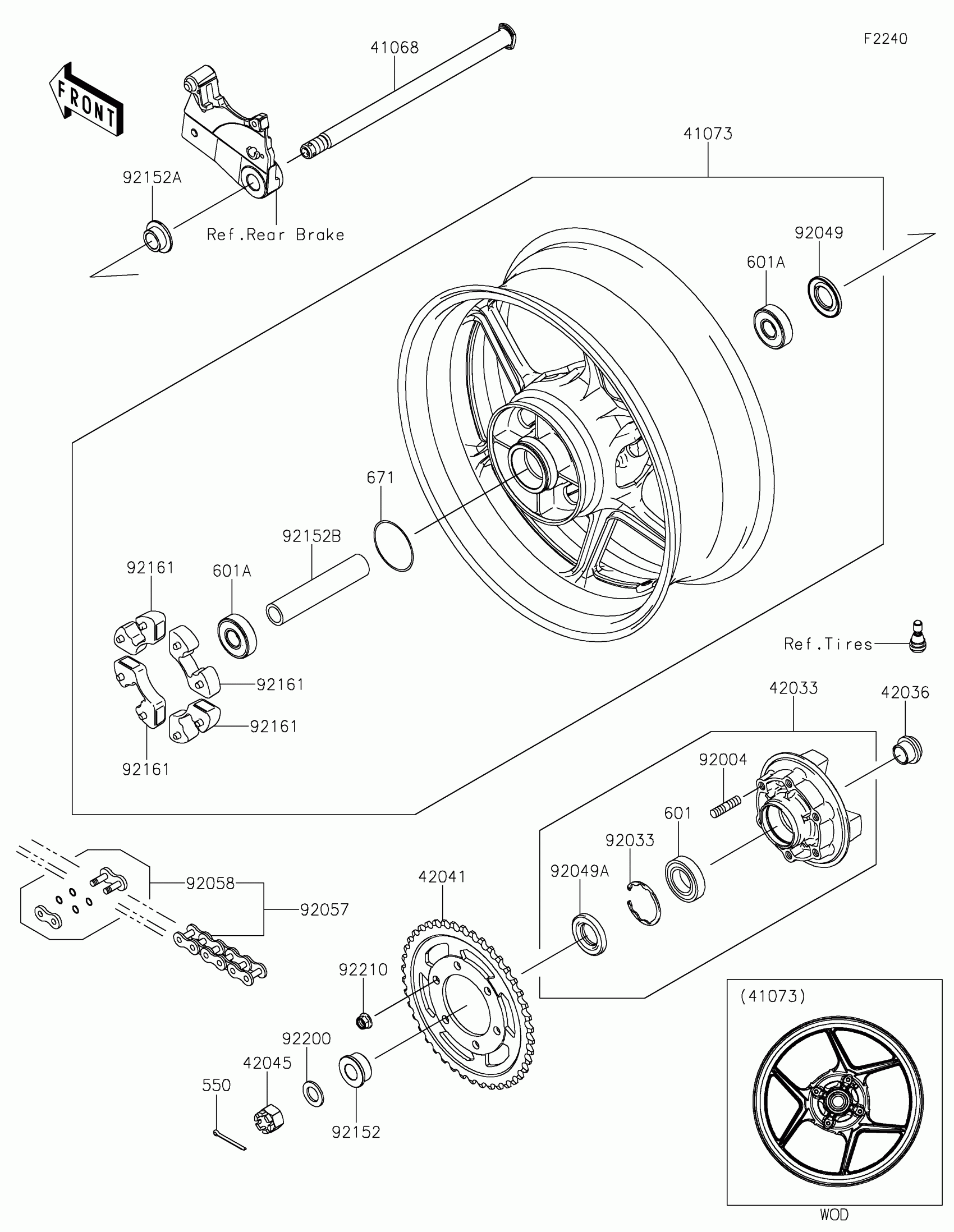

Kawasaki Ninja 1100SX Rear Wheel/Chain Diagram

Description

Price

41068

AXLE,RR

41068-0674

$105.87

41073

WHEEL-ASSY,RR,G.BLACK

41073-0725-18F

$966.58

42033

COUPLING-ASSY,RR HUB

42033-0028

$237.91

42036

SLEEVE,RR HUB,L=23

42036-1251

$26.21

42041

SPROCKET-HUB,42T

42041-0196

$140.87

42045

NUT,CASTLE,18MM

42045-018

$9.23

92004

STUD,10X19

92004-0028

$8.92

92033

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,27X52X5

92049-0723

$14.90

92049A

SEAL-OIL

92049-1287

$13.08

92057

CHAIN,DRIVE,RK525KZX-112L

92057-0936

$382.45

92058

JOINT-CHAIN

92058-0093

$32.27

92152

COLLAR,RR AXLE,LH,L=18

92152-0118

$7.87

92152A

COLLAR,RR AXLE,RH,20X28X14.5

92152-0876

$25.16

92152B

COLLAR,RR HUB,20.2X28X144.5

92152-0892

$30.10

92161

DAMPER,SHOCK,RR HUB

92161-0342

$26.13

92200

WASHER,19X32X2.6

92200-1489

$1.83

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

550

PIN-COTTER,4.0X40

550AA4040

$1.36

601

BEARING-BALL

601B6205UU

$29.62

601A

BEARING-BALL,#6304UUC3

601B6304UU

$34.48

671

O RING,60MM

671B2560

$6.91
