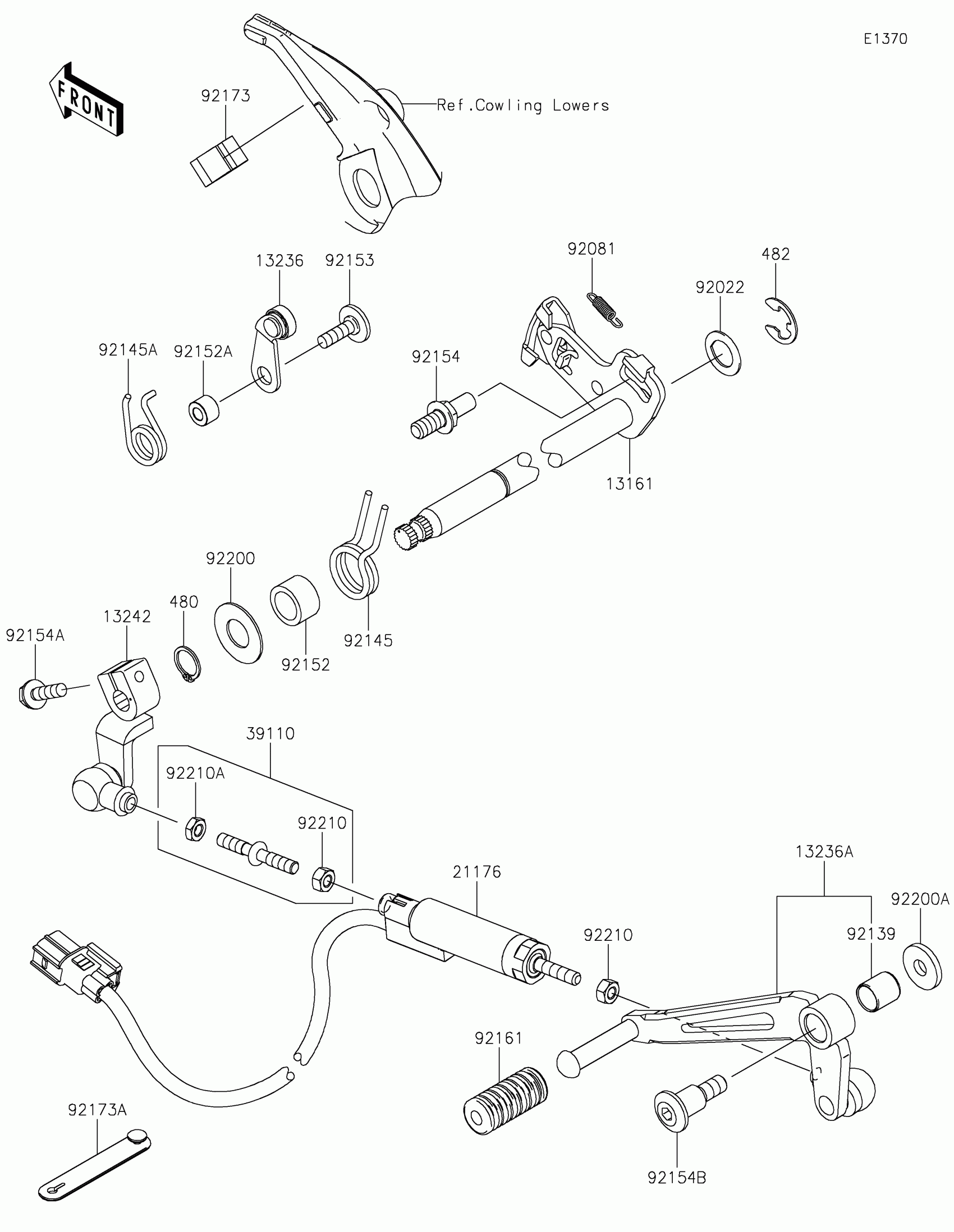

Kawasaki Ninja 1100SX Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0617

$84.89

13236

LEVER-COMP

13236-0835

$12.18

13236A

LEVER-COMP,CHANGE PEDAL

13236-0867

$85.96

13242

LEVER-ASSY-CHANGE

13242-0167

$50.58

21176

SENSOR,QUICK SHIFTER

21176-0991

$226.15

39110

ROD-ASSY-TIE

39110-0048

$21.95

92022

WASHER,CHANGE SHAFT

92022-1628

$6.57

92081

SPRING,PAWL RETURN

92081-1708

$6.51

92139

BUSHING

92139-0023

$3.69

92145

SPRING

92145-1122

$9.68

92145A

SPRING

92145-2387

$7.49

92152

COLLAR,14.2X19.9X12.0

92152-1383

$4.18

92152A

COLLAR

92152-2705

$3.86

92153

BOLT,6X20

92153-1505

$7.75

92154

BOLT,RETURN SPRING

92154-1838

$9.07

92154A

BOLT,FLANGED,6X20

92154-2090

$2.75

92154B

BOLT,SOCKET,8X16.7

92154-4189

$13.34

92161

DAMPER,CHANGE PEDAL

92161-2389

$6.18

92173

CLAMP,CLIP

92173-0127

$15.62

92173A

CLAMP

92173-2199

$1.48

92200

WASHER

92200-0265

$2.61

92200A

WASHER,8.0X22.0X3.5

92200-2387

$4.85

92210

NUT,6MM

92210-1100

$2.34

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.86

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92
