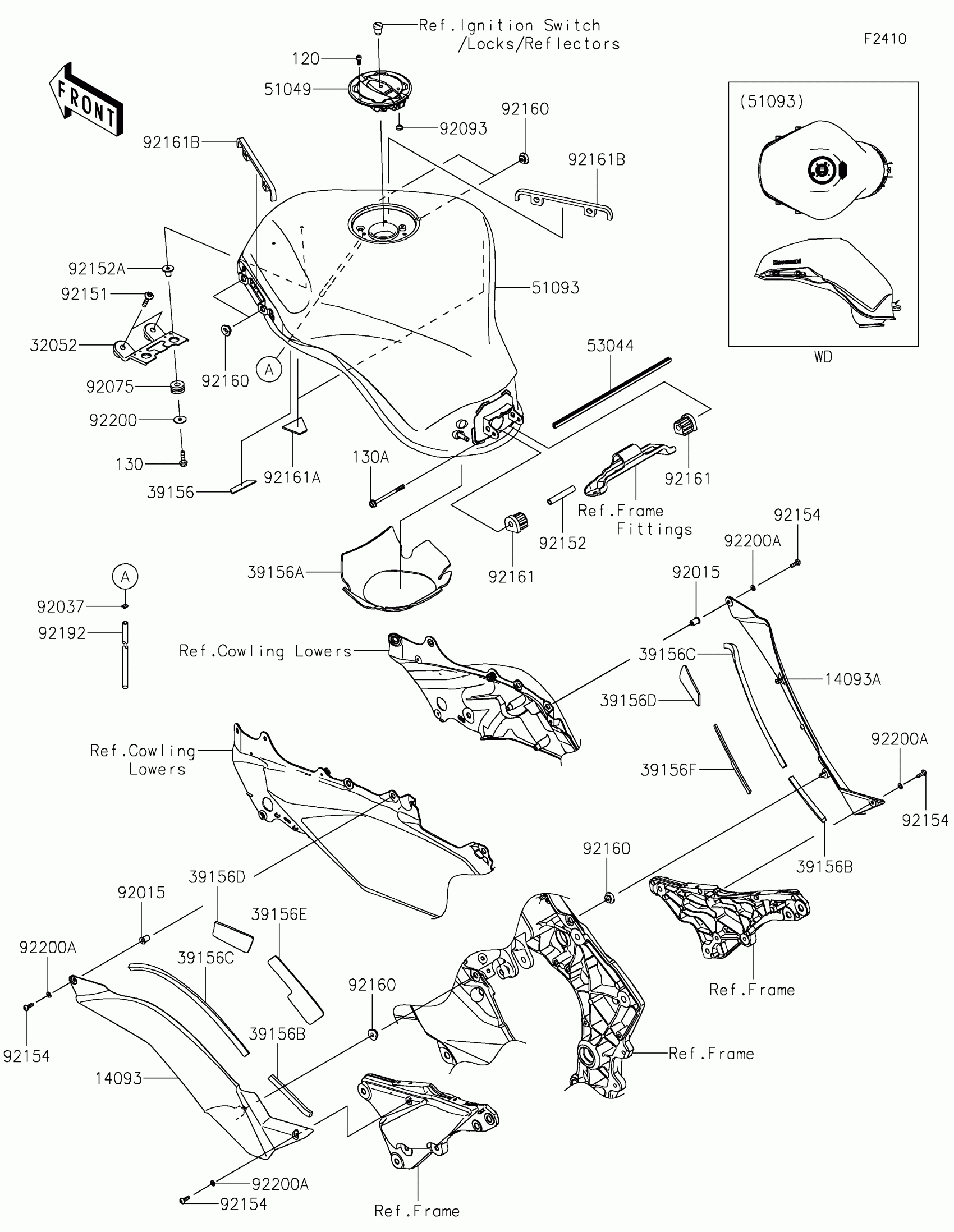

Find the part on the Fuel Tank diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja 1100SX Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,KNEE GRIP,LH

14093-0529

1
Out of stock

14093A

COVER,KNEE GRIP,RH

14093-0530

1
Out of stock

32052

BRACKET-TANK,F.S.BLACK

32052-0783-18R

1
Out of stock

39156

PAD,DRAIN TUBE

39156-1770

1
Out of stock

39156A

PAD,FUEL PUMP

39156-1781

1
Out of stock

39156B

PAD,8X100X5

39156-2150

1
Out of stock

39156C

PAD,8X280X10

39156-2151

1
Out of stock

39156D

PAD,35X70X3

39156-2600

1
Out of stock

39156E

PAD,RR,LH

39156-2601

1
Out of stock

39156F

PAD,RR,RH

39156-2602

1
Out of stock

51049

CAP-TANK,FUEL

51049-0756

1
Out of stock

51093

TANK-COMP-FUEL,M.D.BLACK

51093-5381-17K

1
Out of stock

53044

TRIM

53044-1296

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92037

CLAMP,TUBE

92037-010

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92151

BOLT,SOCKET,6X30

92151-1605

1
Out of stock

92152

COLLAR,6.8X10X60

92152-1182

1
Out of stock

92152A

COLLAR,6.3X9.5X14.1

92152-1847

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER,FUEL TANK,RR

92161-1330

1
Out of stock

92161A

DAMPER,30X48X3

92161-1768

1
Out of stock

92161B

DAMPER

92161-1943

1
Out of stock

92192

TUBE,6X9X926(30)

92192-1024

1
Out of stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

92200A

WASHER,5.2X10X1.0

92200-1820

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

130A

BOLT-FLANGED,6X70

130BB0670

1
Out of stock
