2025 Kawasaki Ninja 1100SX Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

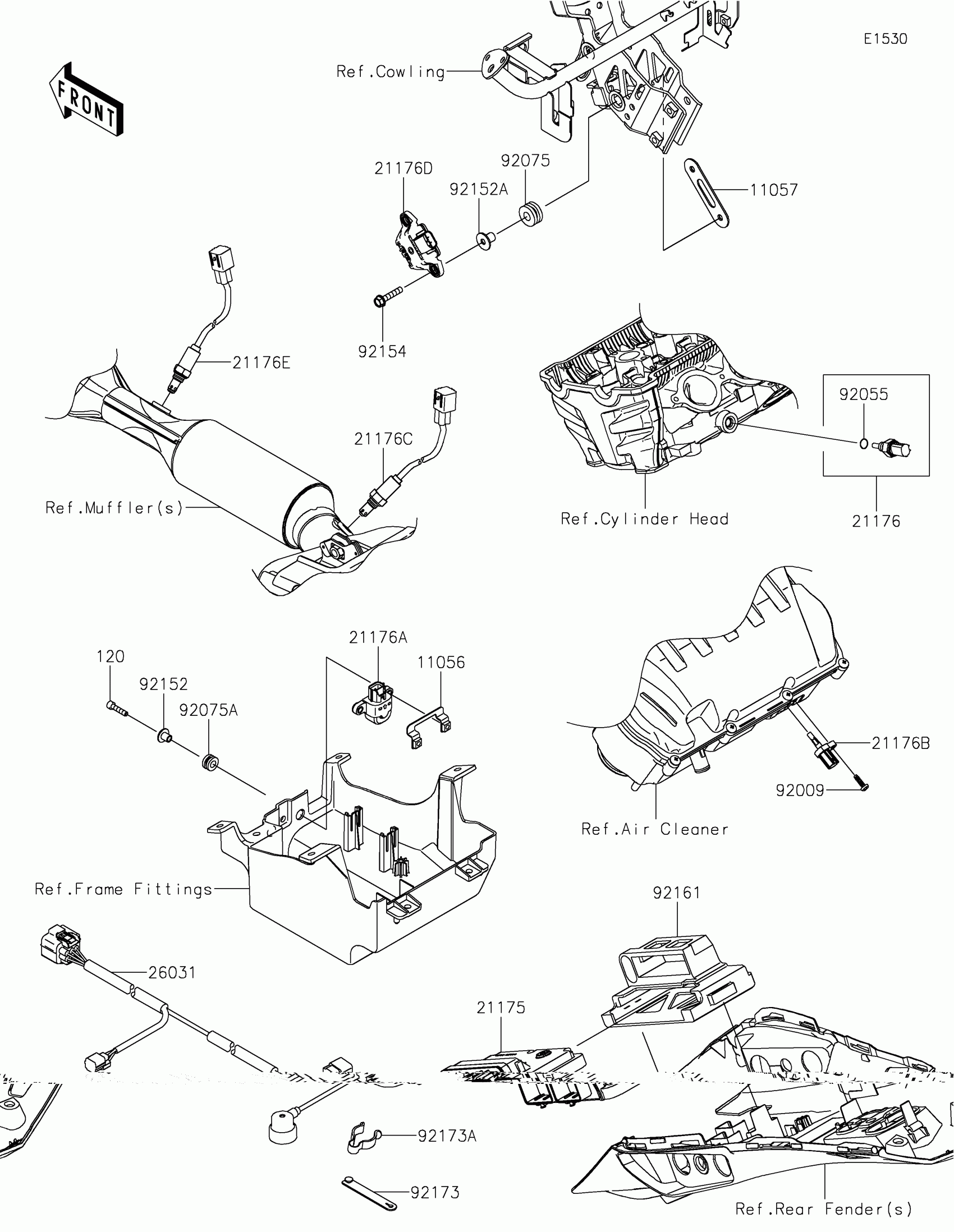

2025 Kawasaki Ninja 1100SX Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-0124

1

$7.15

In stock

11057

BRACKET,SENSOR

11057-0381

1

$4.31

In stock

21175

1

$1,206.04

In stock

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1

$79.06

In stock

21176B

1

$24.07

In stock

21176C

SENSOR,OXYGEN

21176-0932

1

$239.98

In stock

21176D

SENSOR,GYRO

21176-1126

1

$753.32

In stock

21176E

SENSOR,OXYGEN

21176-1205

1

$233.24

In stock

26031

HARNESS,SUB

26031-4167

1

$68.43

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92075A

DAMPER

92075-1912

1

$5.07

In stock

92152

COLLAR

92152-0134

1

$7.54

In stock

92152A

COLLAR,6.3X9.5X14.1

92152-1847

1
Out of stock

92154

BOLT,FLANGED,6X30

92154-1857

1

$1.81

In stock

92161

DAMPER,ECU

92161-2261

1

$40.70

In stock

92173

CLAMP

92173-2194

1

$1.56

In stock

92173A

CLAMP

92173-2419

1

$10.51

In stock

120

BOLT-SOCKET,5X25

120CA0525

1

$3.86

In stock
