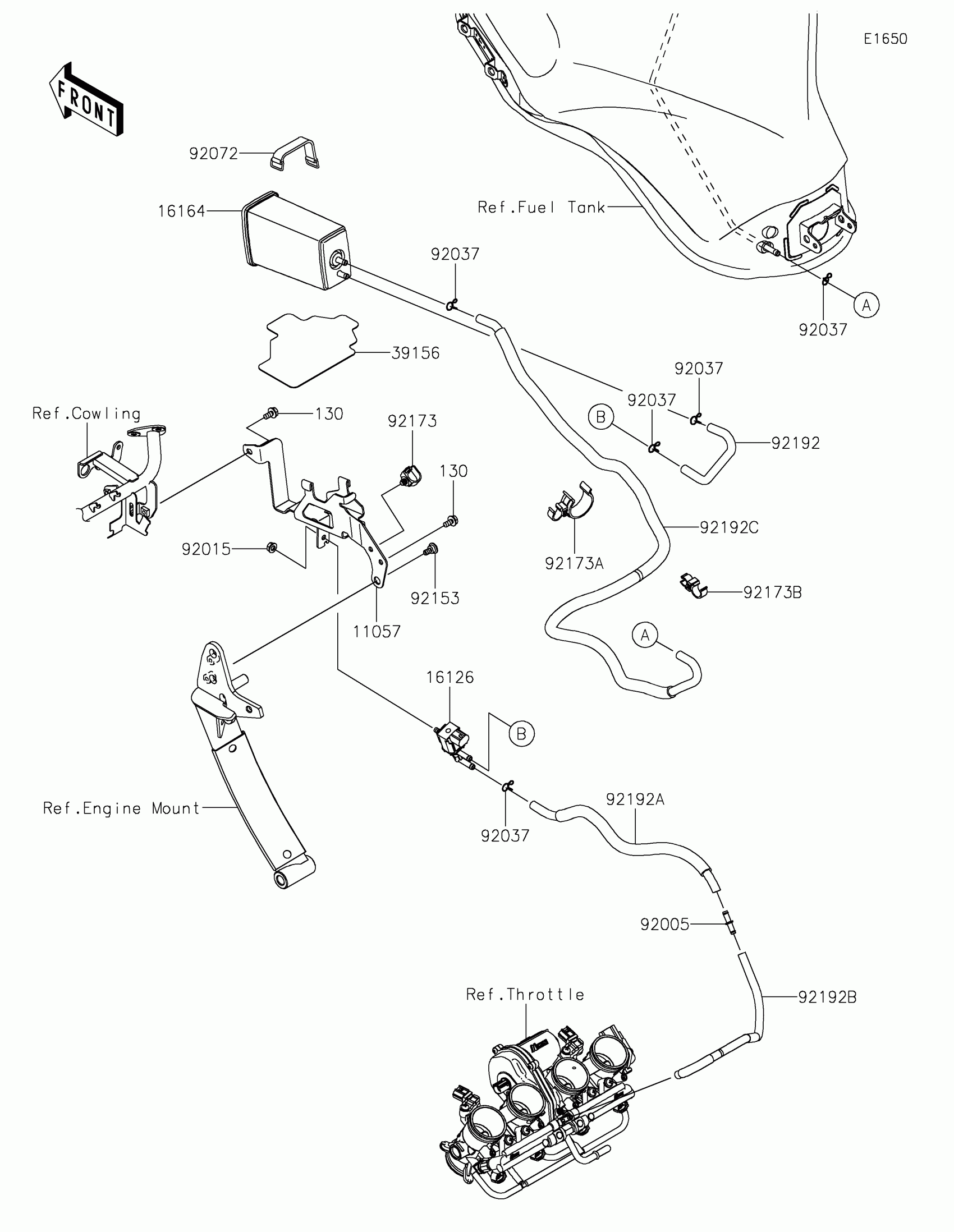

Kawasaki Ninja 1100SX Fuel Evaporative System Diagram

Description

Price

11057

BRACKET,CANISTER

11057-3981

$29.91

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0012

$149.73

39156

PAD

39156-2141

$26.15

92005

FITTING

92005-0721

$9.09

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP

92037-1712

$5.00

92072

BAND,TOOL,L=82

92072-1294

$14.90

92153

BOLT,SOCKET,6MM

92153-1956

$3.90

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173A

CLAMP

92173-1273

$6.00

92173B

CLAMP

92173-2720

$5.26

92192

TUBE,CANISTER-VALVE

92192-1715

$28.78

92192A

TUBE,VALVE-FITTING(THROTTLE)

92192-2348

$43.43

92192B

TUBE,THROTTLE-FITTING

92192-2712

$44.09

92192C

TUBE,TANK-CANISTER

92192-2713

$108.48

130

BOLT-FLANGED,6X12

130BA0612

$1.72
