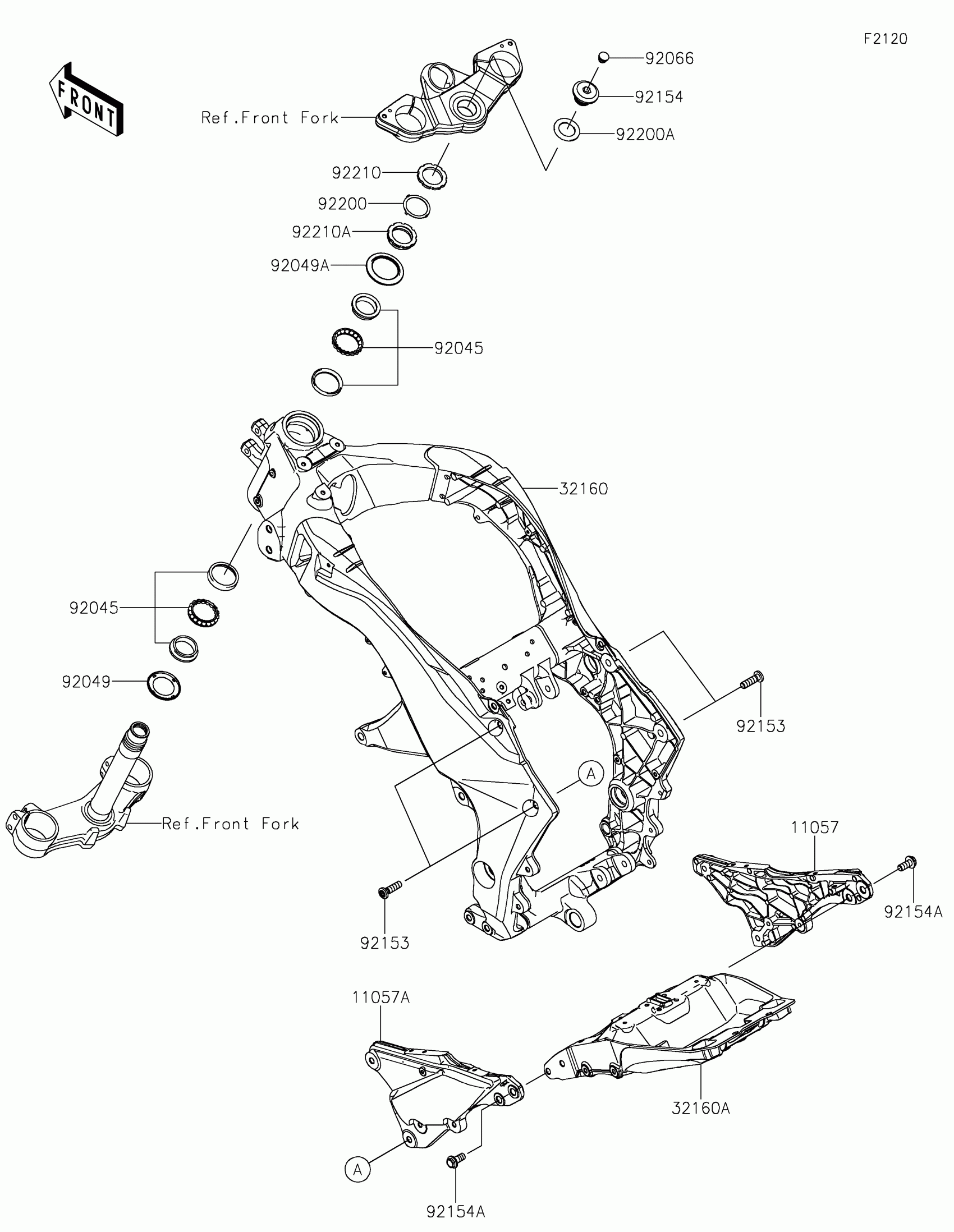

Kawasaki Ninja 1100SX Frame Diagram

Description

Price

11057

BRACKET,RR,RH,F.S.BLACK

11057-0807-18R

$307.02

11057A

BRACKET,RR,LH,F.S.BLACK

11057-2955-18R

$307.02

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-1882-18R

$1,920.94

32160A

FRAME-COMP,RR

32160-2045

$678.07

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL,DS35X55X4

92049-0022

$17.39

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

$17.91

92066

PLUG

92066-0071

$3.35

92153

BOLT,SOCKET,10X35

92153-1442

$7.24

92154

BOLT,26MM

92154-7059

$28.76

92154A

BOLT,FLANGED,10X23

92154-7488

$6.81

92200

WASHER

92200-0036

$5.00

92200A

WASHER,27X42X2.3

92200-0081

$3.74

92210

NUT,35MM

92210-0095

$18.25

92210A

NUT,35MM

92210-0823

$24.27
