Find the part on the Footrests diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

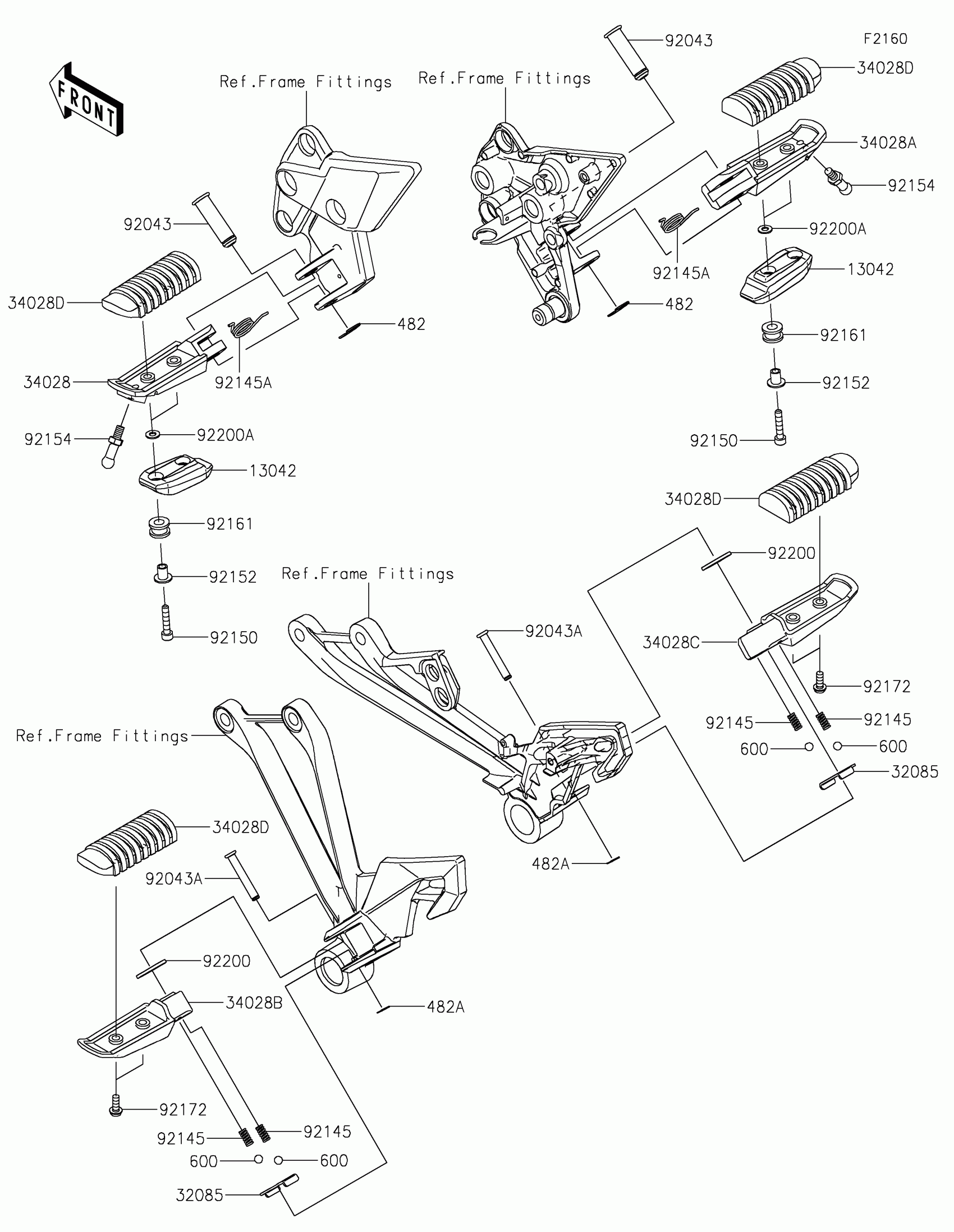

2025 Kawasaki Ninja 1100SX Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,STEP

13042-0773

1

$15.02

In stock

32085

STOPPER,REAR STEP

32085-0047

1

$4.42

In stock

34028

STEP,FR,LH

34028-0352

1

$37.81

In stock

34028A

STEP,FR,RH

34028-0353

1

$37.81

In stock

34028B

STEP,RR,LH

34028-0377

1

$46.59

In stock

34028C

STEP,RR,RH

34028-0378

1

$46.59

In stock

34028D

STEP,RUBBER

34028-1430

1

$21.09

In stock

92043

PIN,12X42.5

92043-1594

1

$5.25

In stock

92043A

PIN,6X40

92043-1595

1

$1.95

In stock

92145

SPRING

92145-1319

1

$1.54

In stock

92145A

SPRING

92145-1828

1

$5.01

In stock

92150

BOLT,SOCKET,5X25

92150-1684

1

$2.89

In stock

92152

COLLAR

92152-2596

1

$2.12

In stock

92154

1

$4.47

In stock

92161

DAMPER,8X16X8

92161-2082

1

$2.20

In stock

92172

SCREW,5X14

92172-0976

1

$3.14

In stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock

92200A

WASHER,5.3X11X1

92200-1929

1

$1.10

In stock

482

1

$0.98

In stock

482A

CIRCLIP-TYPE-E

482EA5000

1

$1.20

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
