Cowling

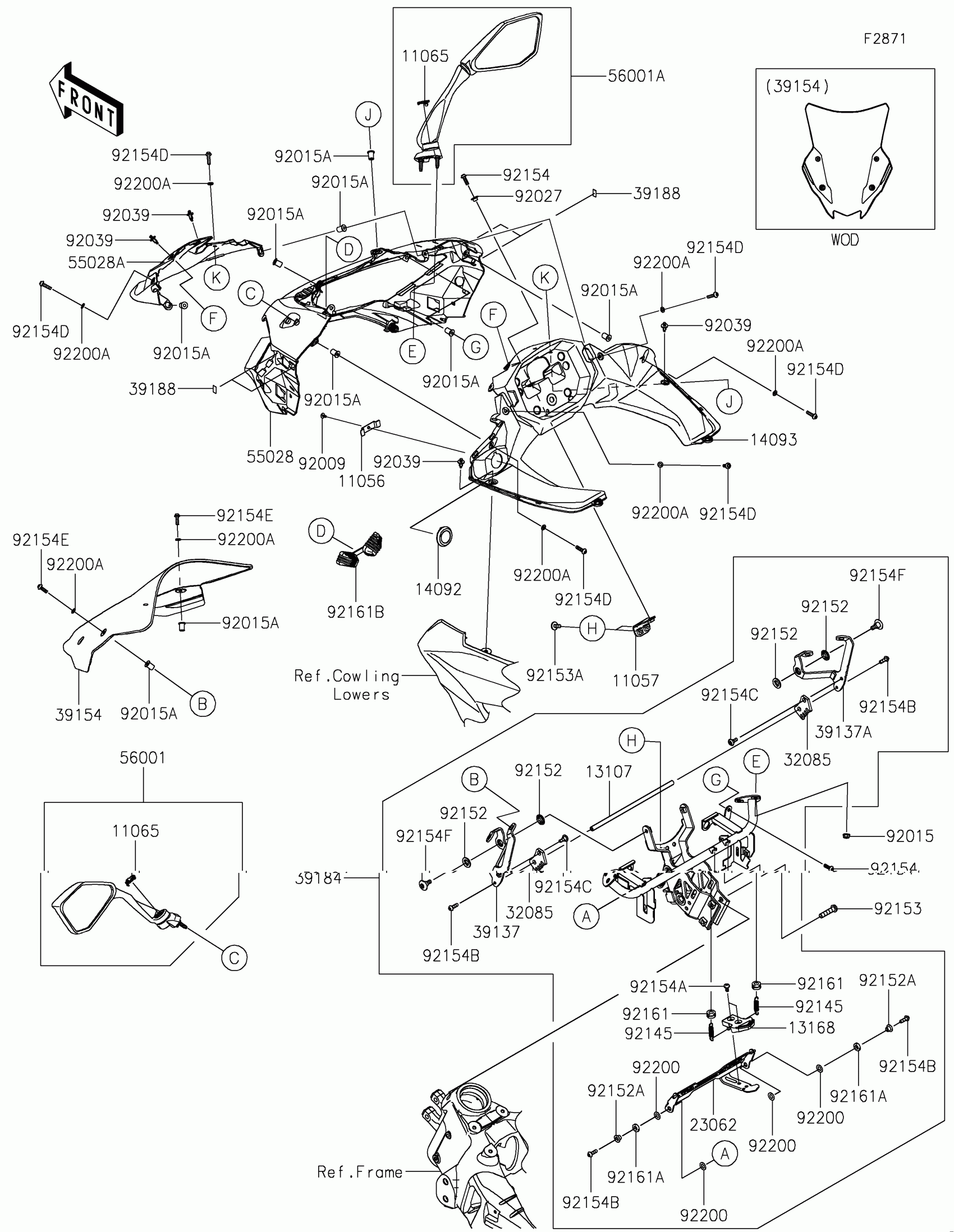

2025 Kawasaki Ninja 1100SX Cowling Diagram
Find the part on the Cowling diagram for your 2025 Kawasaki Ninja 1100SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
92009
SCREW,TAPPING,4X8
92009-1155
1
Out of stock
92015
NUT,FLANGED,6MM,BLACK
92015-1233
1
Out of stock
92153
BOLT,SOCKET,8X35
92153-0419
1
Out of stock
92153A
BOLT,SOCKET,6X14
92153-1021
1
Out of stock
92154D
BOLT,SOCKET,5X20
92154-0919
1
Out of stock
92200
WASHER,8.2X15X1
92200-0742
1
Out of stock
92200A
WASHER,5.2X10X1.0
92200-1820
1
Out of stock
