Engine Cover(s)

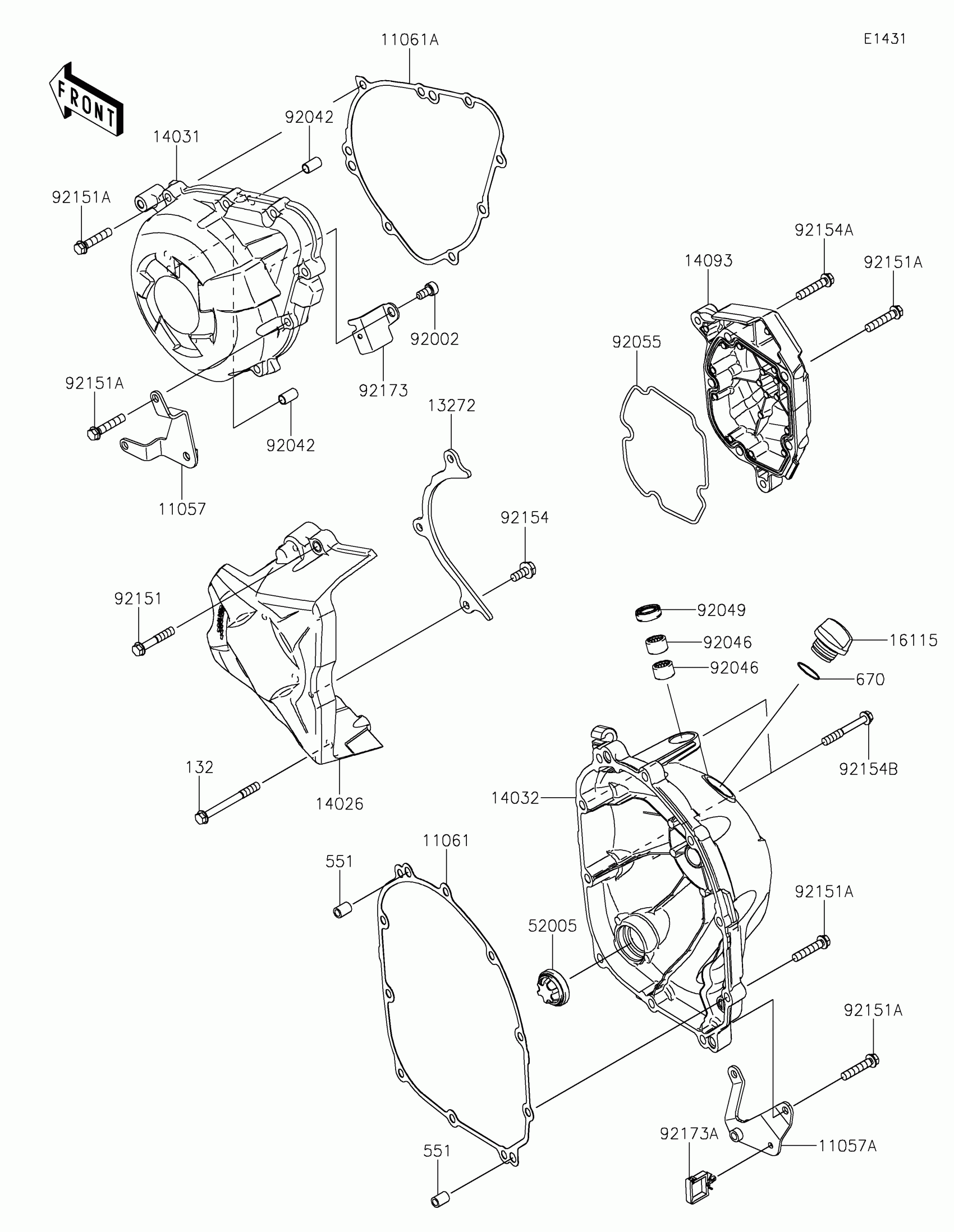

Kawasaki Ninja 1100SX Engine Cover(s) Diagram
#
Description
Price
11057
BRACKET
11057-2957
$7.29
11057A
BRACKET
11057-2958
$26.17
11061
GASKET,CLUTCH
11061-1637
$23.78
11061A
GASKET,GENERATOR
11061-1638
$17.63
13272
PLATE
13272-0859
$15.62
14026
COVER-CHAIN
14026-0161
$135.20
14031
COVER-GENERATOR
14031-0610
$241.75
14032
COVER-CLUTCH
14032-0704
$248.02
14093
COVER,PULSER
14093-0543
$488.90
16115
CAP-OIL FILLER
16115-1053
$12.20
52005
GAUGE
52005-1120
$22.80
92002
BOLT,SOCKET,6X12
92002-1796
$4.69
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92049
SEAL-OIL,CLUTCH RELEASE
92049-1475
$4.18
92055
RING-O,PULSER COVER
92055-0199
$9.58
92151
BOLT,6X35
92151-1135
$4.18
92151A
BOLT,6X30
92151-1873
$4.67
92154
BOLT,FLANGED-SMALL,6X12
92154-1888
$4.31
92154A
BOLT,6X30
92154-2652
$2.34
92154B
BOLT,FLANGED,6X45
92154-7260
$1.60
92173
CLAMP
92173-1321
$1.97
92173A
CLAMP
92173-1513
$3.73
132
BOLT-FLANGED-SMALL,6X60
132BC0660
$2.97
551
PIN-DOWEL,8X14
551A0814
$1.19
670
O RING,20MM
670B2020
$1.22
