Description

Price

11057

BRACKET

11057-2646

$37.58

11057A

BRACKET

11057-2647

$37.58

11065

CAP

11065-0072

$7.20

16073

INSULATOR

16073-0848

$11.51

16163A

THROTTLE-ASSY

16163-1202

$1,801.63

21176

SENSOR,PRESSURE

21176-0906

$222.28

31064

PIPE-COMP

31064-0714

$85.93

49033

NOZZLE-INJECTION

49033-0563

$124.66

49056

PIPE-INJECTION

49056-0561

$103.61

51044

TUBE-ASSY

51044-0915

$27.48

59071

JOINT

59071-0022

$17.44

92005

FITTING

92005-1380

$16.65

92037

CLAMP,TUBE

92037-1124

$6.11

92055

RING-O

92055-0761

$7.40

92055A

RING-O

92055-0840

$2.06

92055B

RING-O,INJECTION NOZZLE

92055-0937

$9.93

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92161

DAMPER

92161-0673

$5.54

92172

SCREW

92172-0156

$15.20

92172A

SCREW,PIPE INJECTION

92172-0828

$3.02

92191

TUBE,3.2X7.4X30

92191-1550

$2.39

92191A

TUBE,3.2X7.4X40

92191-1551

$2.78

92191B

TUBE,3.2X7.4X70

92191-1552

$4.14

92192

TUBE

92192-1493

$13.73

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58

92200A

WASHER

92200-3807

$6.00

220

SCREW-PAN-CROS,5X10

220AA0510

$0.71

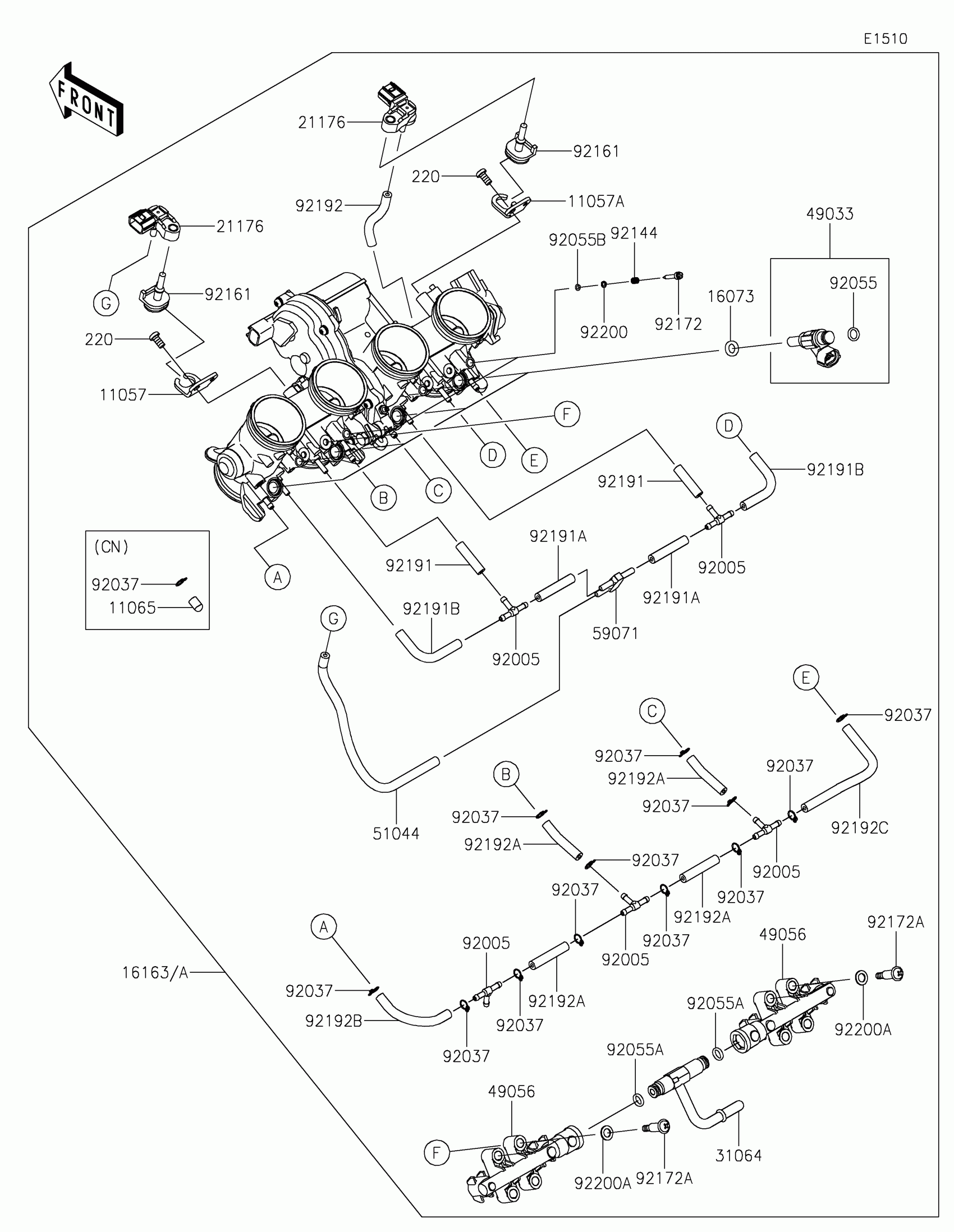

Kawasaki NINJA® 1000SX Throttle Diagram

BRACKET

BRACKET

CAP

INSULATOR

THROTTLE-ASSY

SENSOR,PRESSURE

PIPE-COMP

NOZZLE-INJECTION

PIPE-INJECTION

TUBE-ASSY

JOINT

FITTING

CLAMP,TUBE

RING-O

RING-O

RING-O,INJECTION NOZZLE

SPRING,THROTTLE STOP SCREW

DAMPER

SCREW

SCREW,PIPE INJECTION

TUBE,3.2X7.4X30

TUBE,3.2X7.4X40

TUBE,3.2X7.4X70

TUBE

WASHER,PILOT AIR SCREW

WASHER

SCREW-PAN-CROS,5X10
