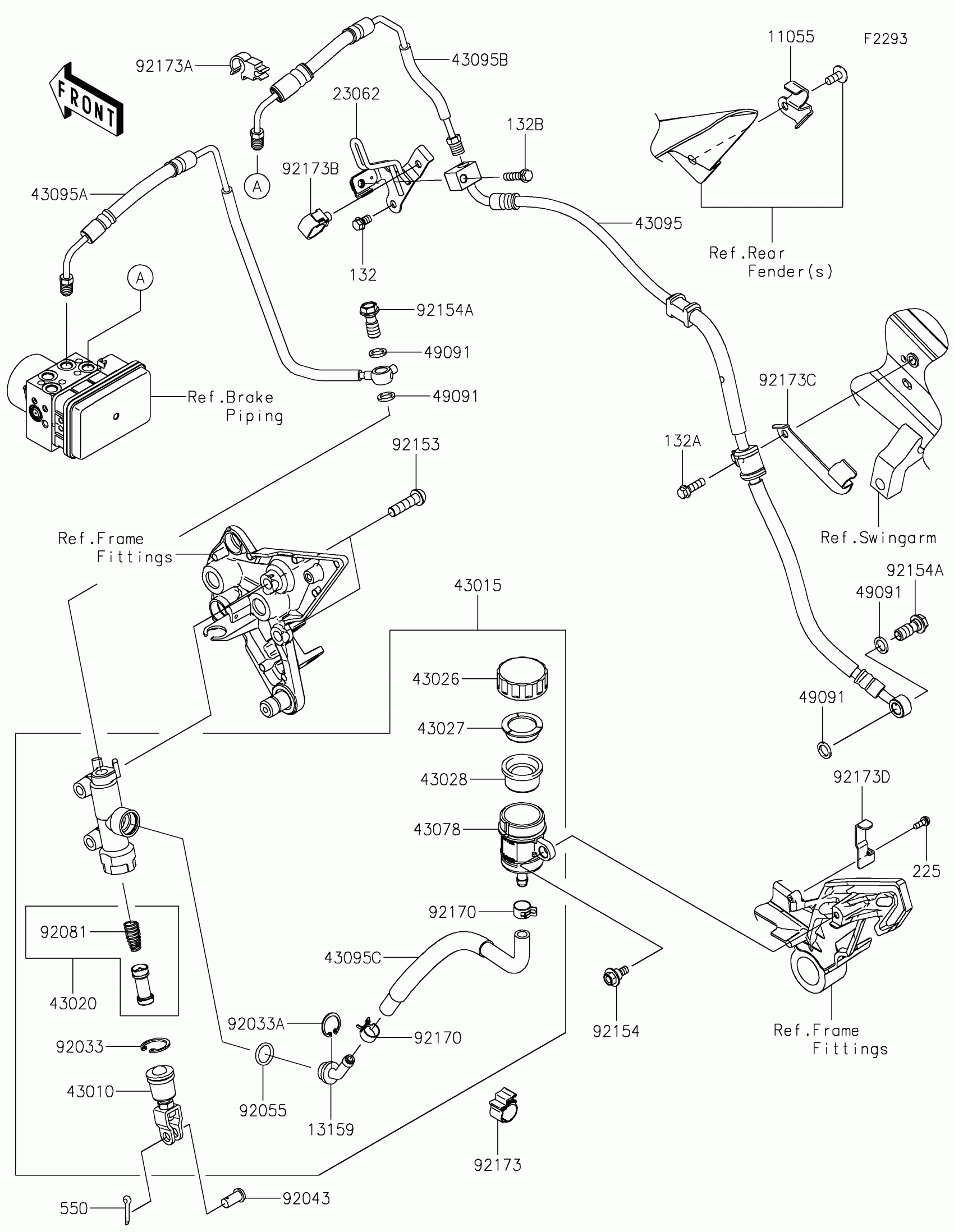

Kawasaki NINJA® 1000SX Rear Master Cylinder Diagram

#

Description
Price

11055

BRACKET

11055-1785

$7.92

13159

CONNECTOR

13159-0008

$10.59

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

132B

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.04

23062

BRACKET-COMP

23062-1299

$20.25

43010

ROD-ASSY-BRAKE

43010-1062

$45.28

43015

CYLINDER-ASSY-MASTER,RR

43015-0596

$419.62

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-0009

$38.22

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43078

RESERVOIR

43078-0060

$33.06

43095

HOSE-BRAKE,RR

43095-0510

$177.18

43095A

HOSE-BRAKE,HU-RR M/C

43095-0785

$119.55

43095B

HOSE-BRAKE,HU-RR CALIPER

43095-0786

$101.42

43095C

HOSE-BRAKE,RR M/C

43095-0811

$32.65

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

550

PIN-COTTER,2.0X15

550AA2015

$0.90

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92043

PIN

92043-0904

$3.51

92055

RING-O,14.8X2.4

92055-0741

$2.82

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92153

BOLT,SOCKET,8X30

92153-0393

$2.84

92154

BOLT,FLANGED,6X16

92154-0385

$3.59

92154A

BOLT,BANJO,10X23

92154-1712

$3.56

92170

CLAMP,HOSE

92170-1091

$3.81

92173

CLAMP,CLIP

92173-0127

$14.78

92173A

CLAMP

92173-0170

$3.93

92173B

CLAMP,HOLDER CLIP

92173-0868

$2.11

92173C

CLAMP

92173-1248

$4.98

92173D

CLAMP

92173-1694

$7.15
