2020 Kawasaki Ninja® 1000SX OIL PAN Diagram

← All diagrams

Find the part on the OIL PAN diagram for your 2020 Kawasaki Ninja® 1000SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

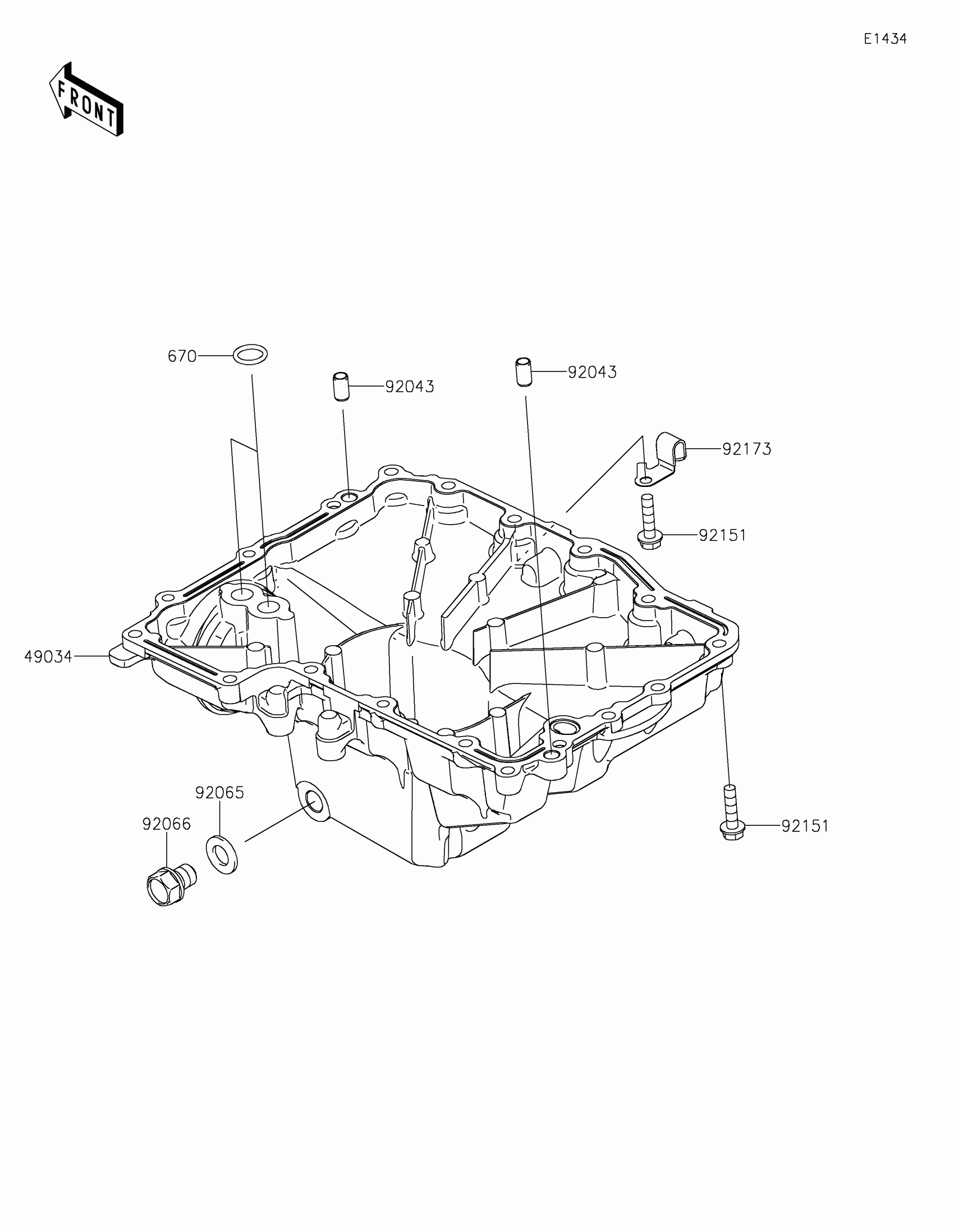

2020 Kawasaki Ninja® 1000SX OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49034

PAN-OIL

49034-0577

1
Out of stock

670

O RING,14MM

670D2014

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,12X15

92066-0079

1
Out of stock

92151

BOLT,FLANGED,6X25

92151-1225

1
Out of stock

92173

CLAMP,OIL PAN

92173-1917

1
Out of stock
