2024 Kawasaki Ninja 1000SX Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2024 Kawasaki Ninja 1000SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

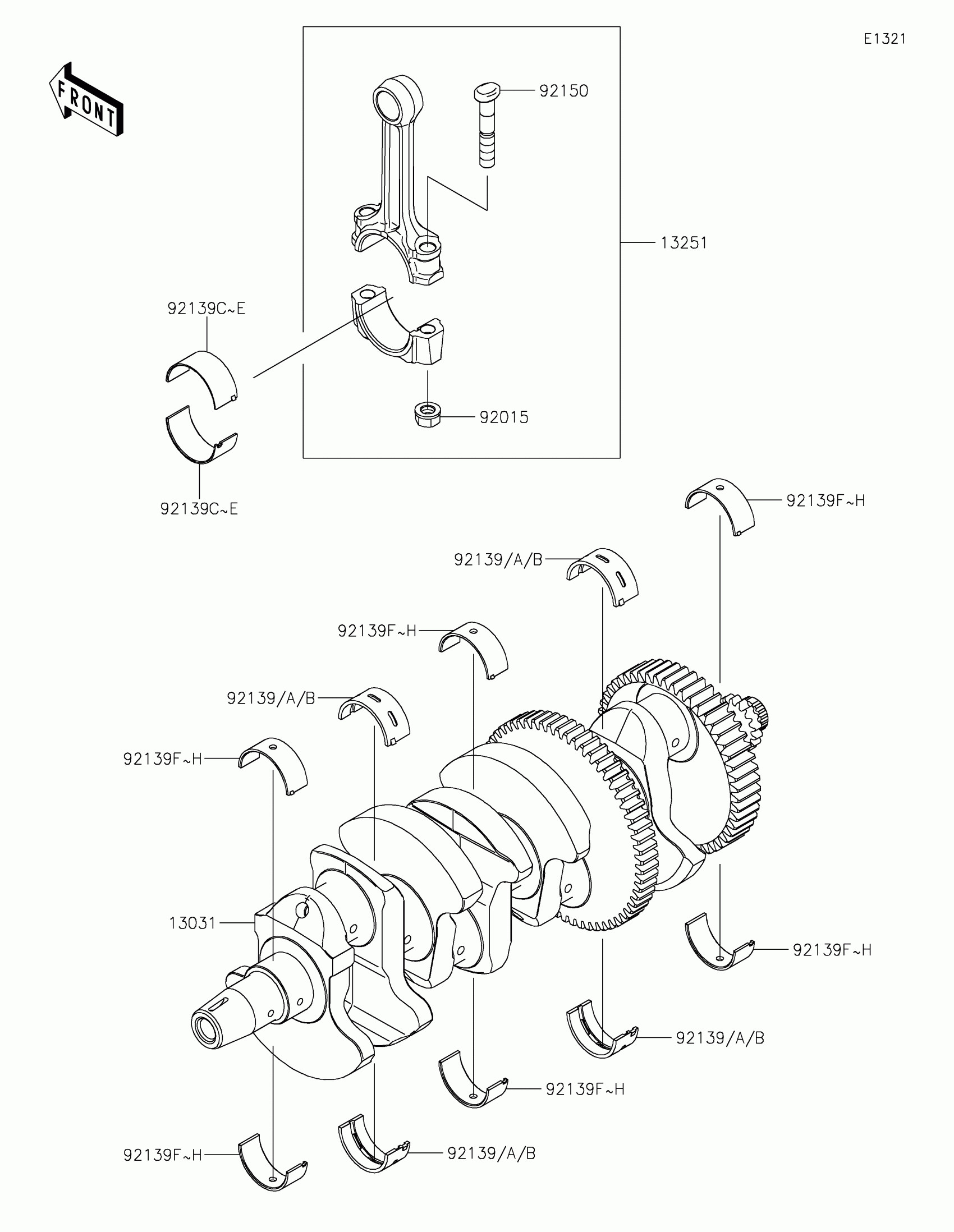

2024 Kawasaki Ninja 1000SX Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0935

1
Out of stock

13251

ROD-ASSY-CONNECTING,II

13251-0739-II

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92139

BUSHING,CRANK #2,BLUE

92139-0032

—
Out of stock

92139A

BUSHING,CRANK #2,BLACK

92139-0033

1
Out of stock

92139B

BUSHING,CRANK #2,BROWN

92139-0034

—
Out of stock

92139C

BUSHING,CRANK PIN,BLUE

92139-0122

—
Out of stock

92139D

BUSHING,CRANK PIN,BLACK

92139-0123

1
Out of stock

92139E

BUSHING,CRANK PIN,BROWN

92139-0124

—
Out of stock

92139F

BUSHING,CRANK,#1,BLUE

92139-0217

—
Out of stock

92139G

BUSHING,CRANK,#1,BLACK

92139-0218

1
Out of stock

92139H

BUSHING,CRANK,#1,BROWN

92139-0219

—
Out of stock

92150

BOLT,CONNECTING ROD,8MM

92150-1216

1
Out of stock
